I/O Cards

The J5xxx and J7xxx workstations have 64-bit slots for PCI (Peripheral Connect Interface)
I/O cards. As you face the front of the workstation, the I/O slots are located on the I/O
board on the right side of the workstation. There are five PCI-2X slots, two PCI-4X slots,
and one slot for power only.
Removing an I/O Card
To remove an I/O card, do the following:
1. Remove the top panel and the right side panel of the workstation.
2. Locate the I/O board and its I/O slots on the right side of the workstation, as shown in
Figure 4-34. Note that the I/O board extends up behind the power supply, and that the
eight I/O slots are located below the power supply.

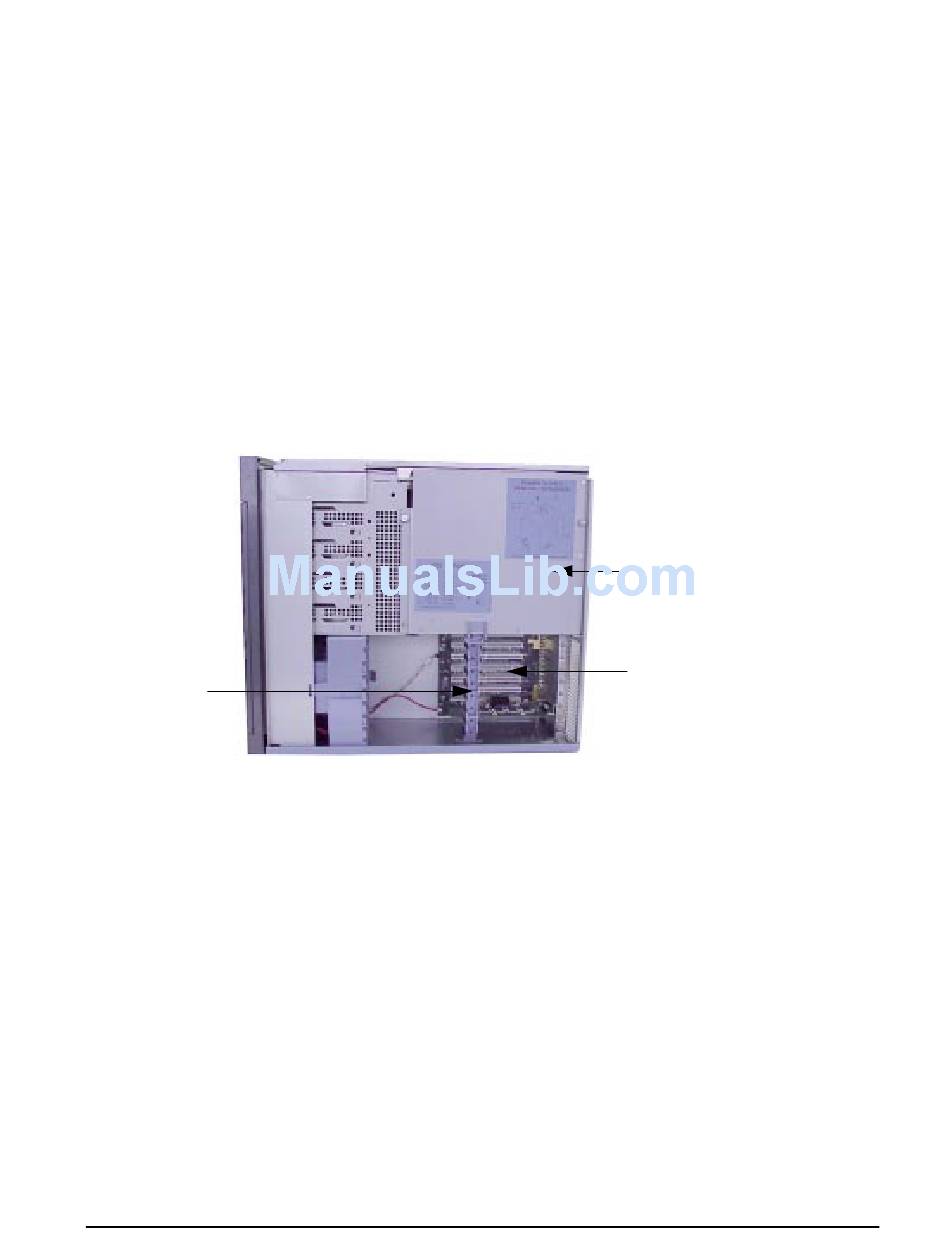

Figure 4-34. I/O Board
PCI retainer clip
3. Remove the PCI retainer clip by pressing down on the thumb tab and pulling the clip
forward to rotate it out of the chassis floor hole, as shown in Figure 4-35 on the next
page.
Chapter 4
Field Replaceable Units (FRUs)
FRU Removal and Replacement
Power supply
I/O board (extends
up behind the power
supply, above)
121
