Parts Removal and Replacement
Memory Card(s) DIMMS
Memory Card(s) DIMMS
This section describes how to remove and replace memory DIMMS.
NOTE
Prior to removing the memory, the Front, Top, and Left Side Panels need to be
removed. See the section(s) for the steps to remove and replace these
components..
Removing the Front Air Guides and Support Bars (J7000 Only)

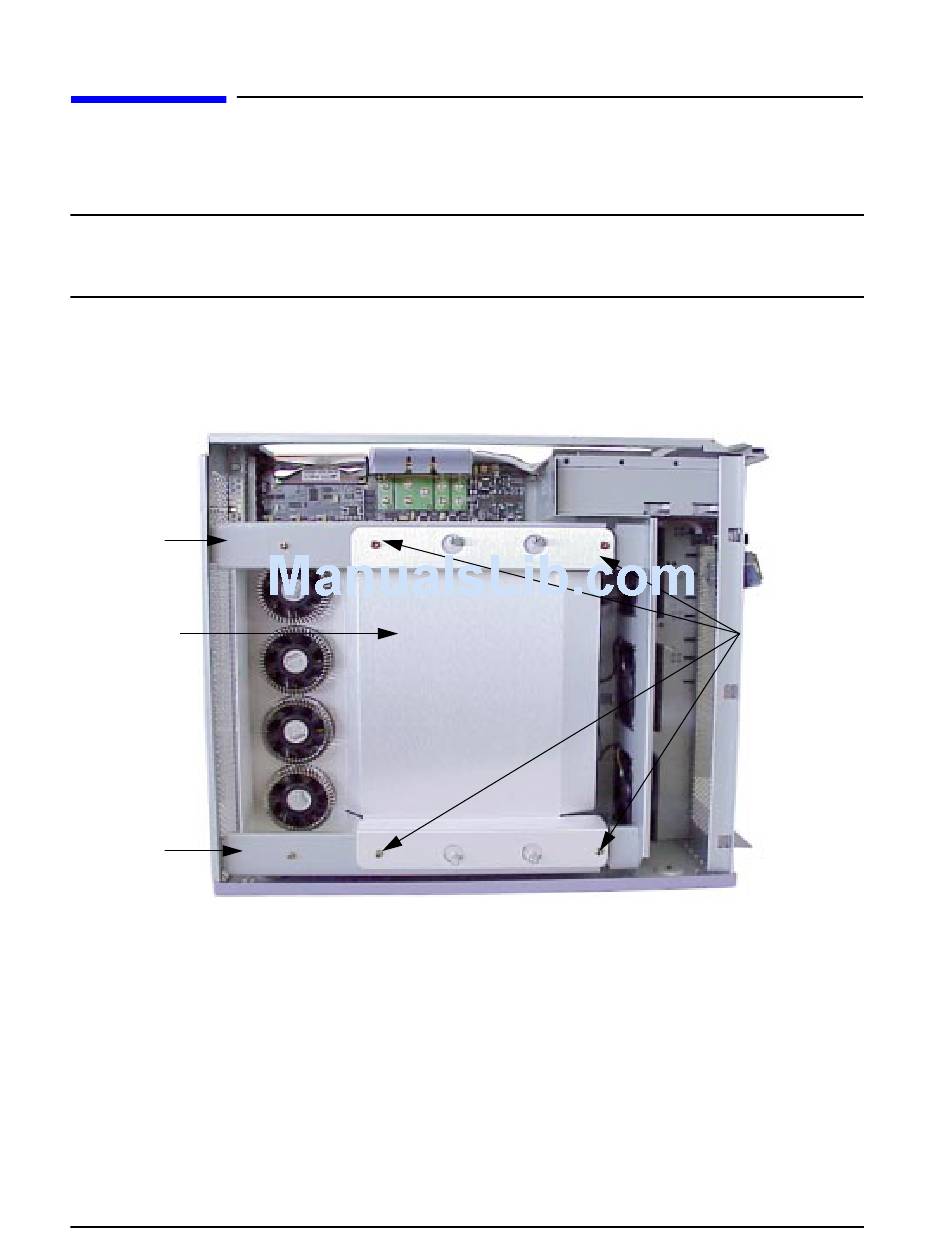

Figure 2-5. J7000's Open Left Side Before Removing Air Guide
Support
Bar
Front
Air
Guide
Support
Bar
1. Remove the four T-15 Torx screws from the front air guide. This will release it from the
support bar. Pull the front air guide straight out.
16
Four
T-15
Torx
Screws
Chapter 2
