Exploded View Diagram

Figure 4-1 shows an exploded view of the internal components (FRUs) in the J5xxx and
J7xxx workstations. Note that this figure calls-out those components which are different
for the J5xxx versus the J7xxx.
Refer to this figure to identify the various workstation FRUs while performing the FRU
removal and replacement procedures in this chapter.

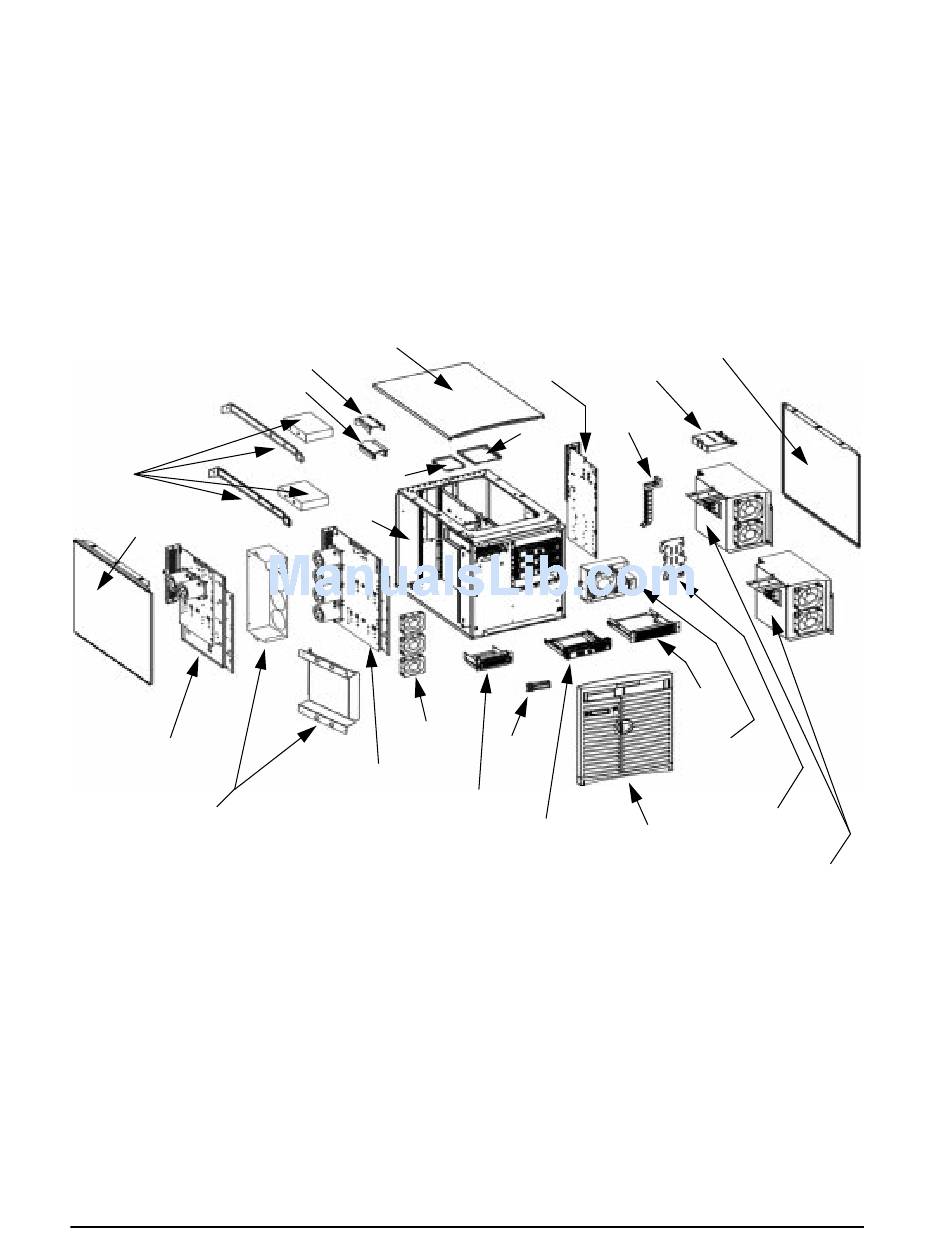

Figure 4-1. Exploded View of the J5xxx and J7xxx Workstation
Flex cable
DC/DC converter
units and
tie-downs
for J7xxx
Left side panel
J5xxx system board
tray assembly
Rear and
front air dividers
for J7xxx
90
Top panel
Flex cable
retainer
DDS-3/floppy
EMI cover
Chassis
System board
cooling fans
J7xxx system board
tray assembly
DDS-3/floppy
drive bracket
Right side panel
I/O board Bus bar shield
PCI
retainer
clip
CD ROM EMI
cover
Power
switch/
LCD
Hard disk
Front bezel
drive bracket
CD ROM drive
bracket
I/O cooling fan
and speaker
SCA hard
disk interface
Power supply for
J7xxx (top) and
J5xxx (bottom)
