3. Pull the metal extractor lever outward to disconnect the hard disk from the SCA hard
disk interface (backplane board) on the back of the hard disk drive bay.

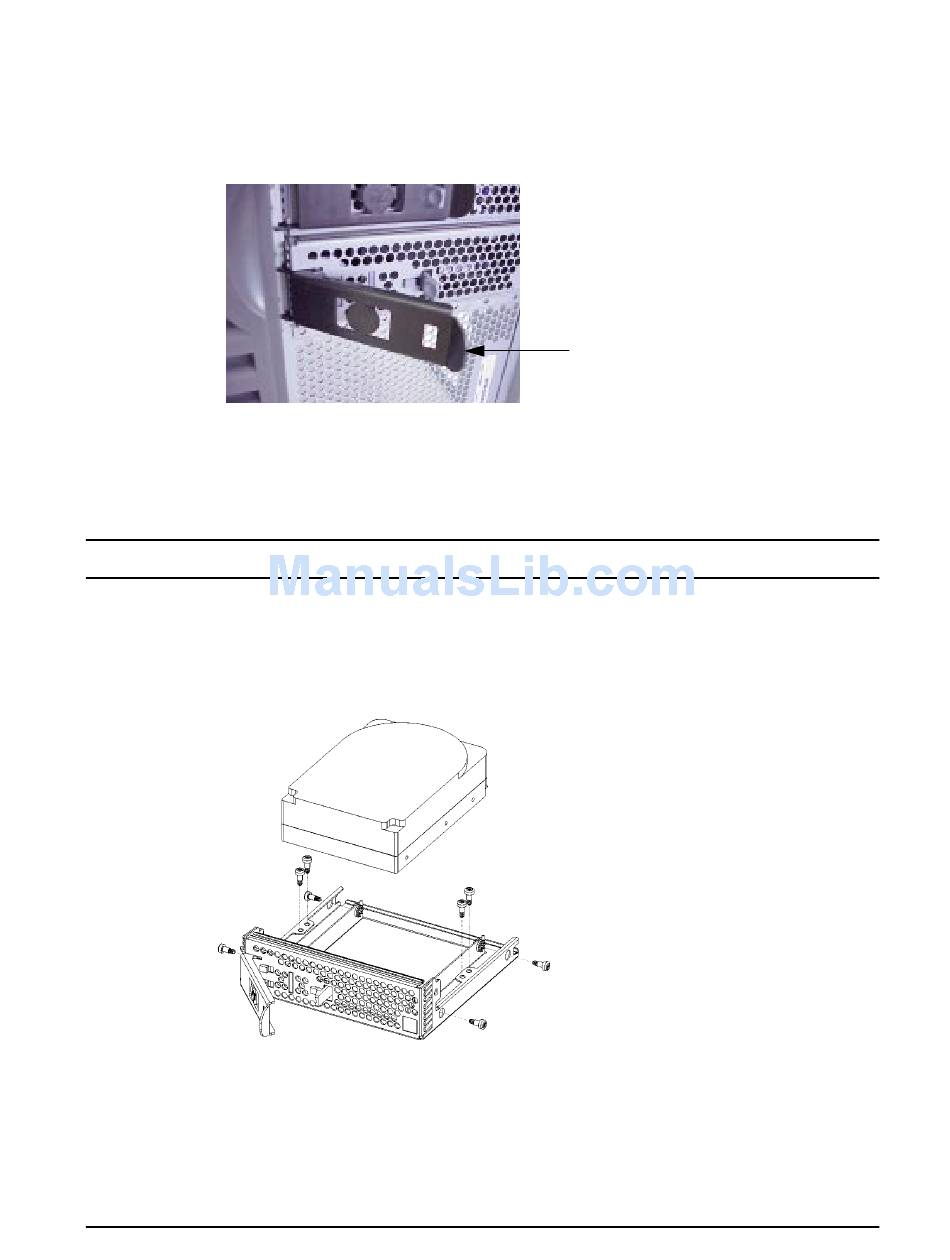

Figure 4-7. Extractor Lever Opened
4. If you are hot-plugging the hard disk drive, wait 30 seconds for the drive to spin down.
5. Carefully slide the hard disk drive out of the chassis guide rails while grasping the body
with the other hand.
CAUTION Dropping the hard disk drive can cause severe damage to the drive hardware.
6. To remove the hard disk drive from the bracket, unscrew the four T-15 Torx screws from
the sides of the bracket as shown in Figure 4-8. (You can then store the screws on top of
the bracket rails as shown in Figure 4-8, if you wish.)
Figure 4-8. Removing the Hard Disk Drive from the Bracket
Chapter 4
Field Replaceable Units (FRUs)
FRU Removal and Replacement
Extractor lever
