Front Panel Components

This section describes the components that are located on the front panel of the J5xxx and
J7xxx workstations.
Figure 1-1 shows the front panel components with the bezel attached.

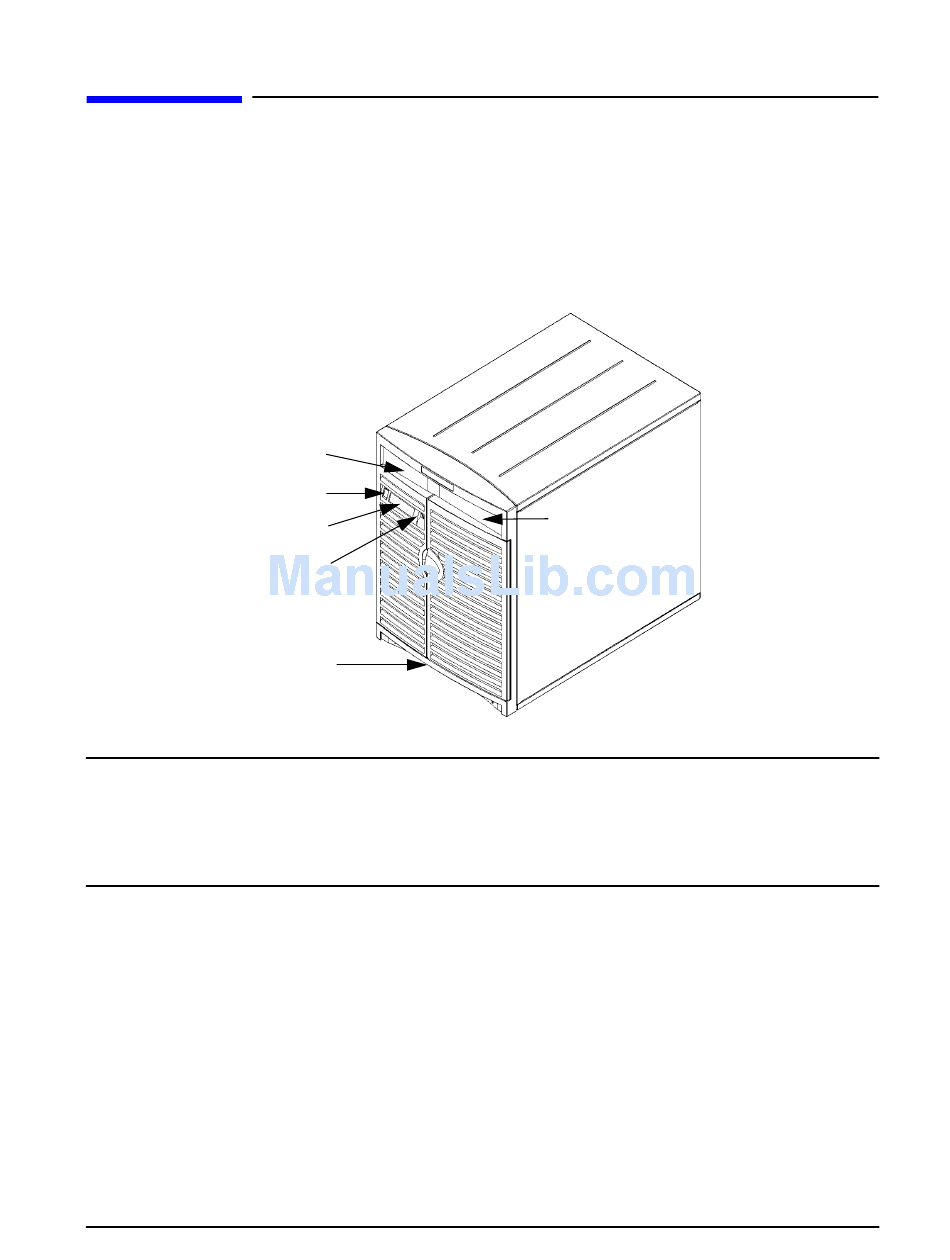

Figure 1-1. Components on the Front Panel with the Bezel Attached
Bay for either one
DDS-3 tape drive
or floppy disk drive
Power switch
System LCD
Bezel lock
Lifting ledge
CAUTION The lifting ledge at the bottom, front of the workstation is strong enough to
use as a handhold when lifting the workstation. However, note that this
workstation is designated for two-person lifting; it weighs approximately 74
to 96 pounds (34 to 44 Kg), depending on the configuration. Do not attempt to
lift it by yourself, or injury may result.
As noted in Figure 1-1, the hard disk drives are located behind the right-hand door of the
front bezel. Figure 1-2 on the next page shows the workstation with the bezel door open, so
that the four hard disk drive brackets can be seen.
Chapter 1
Front Panel Components
Bay for one
CD ROM drive
}
Hard disk drive(s)
(behind bezel's
right-hand door)
