Configuration
Field Replaceable Unit (FRU) Configurations
DDS-3 Tape Drive (Optional) Configuration
Figure 2-2 shows the NSE SCSI-2 ID/jumper settings for the optional DDS-3 tape drive.
Figure 2-3 on the next page shows the switch settings for Data Compression Operation
Mode for the DDS-3 tape drive.

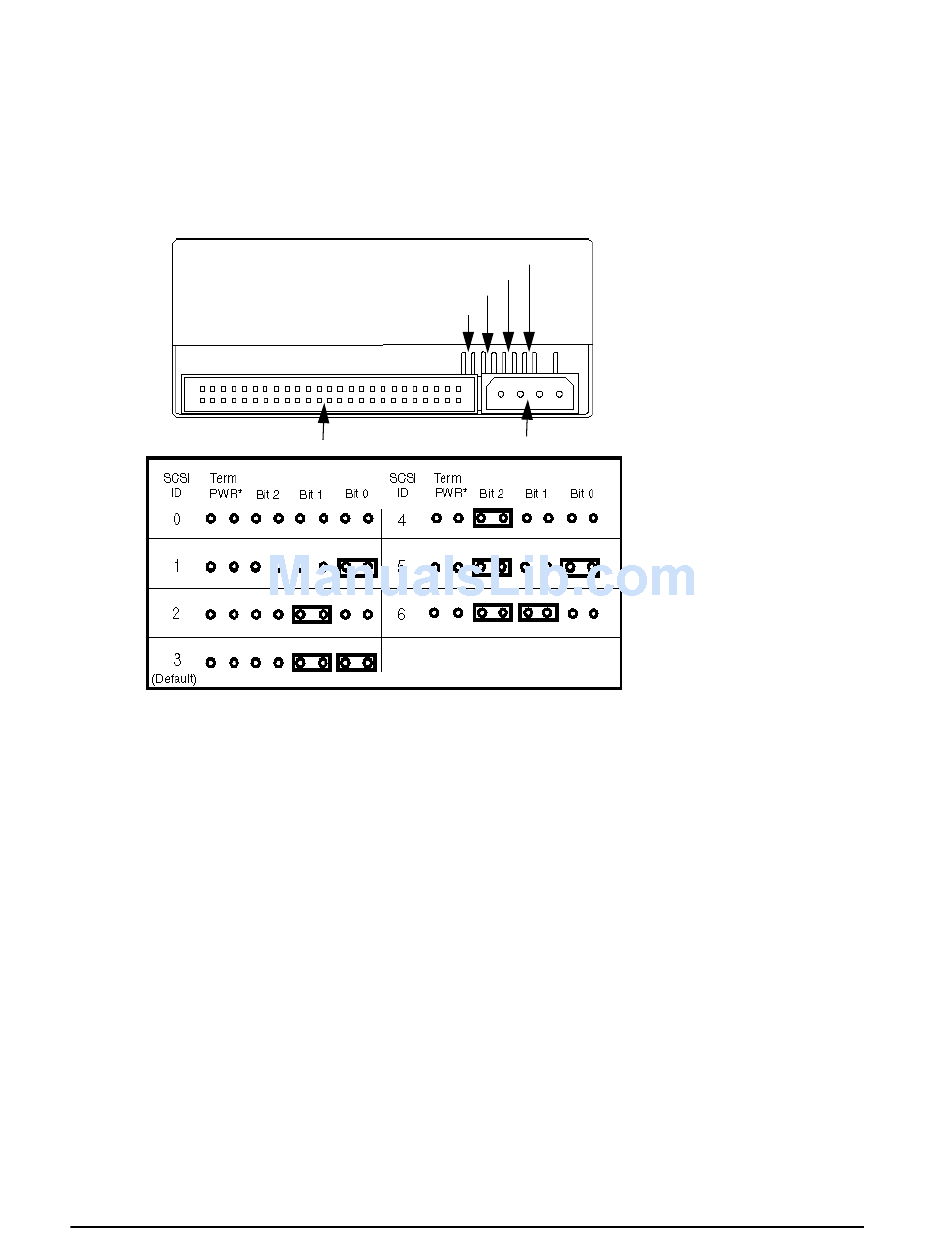

Figure 2-2. DDS-3 Tape Drive NSE SCSI-2 ID/Jumper Settings
Bit 0
Bit 1
Bit 2
Term PWR*
SCSI Connector
Power Connector
* Term PWR is not used in HP workstation configurations.
38
Chapter 2
