Configuration
Field Replaceable Unit (FRU) Configurations
There is a label on the floor of the workstation's interior showing the J5xxx's memory
loading order.

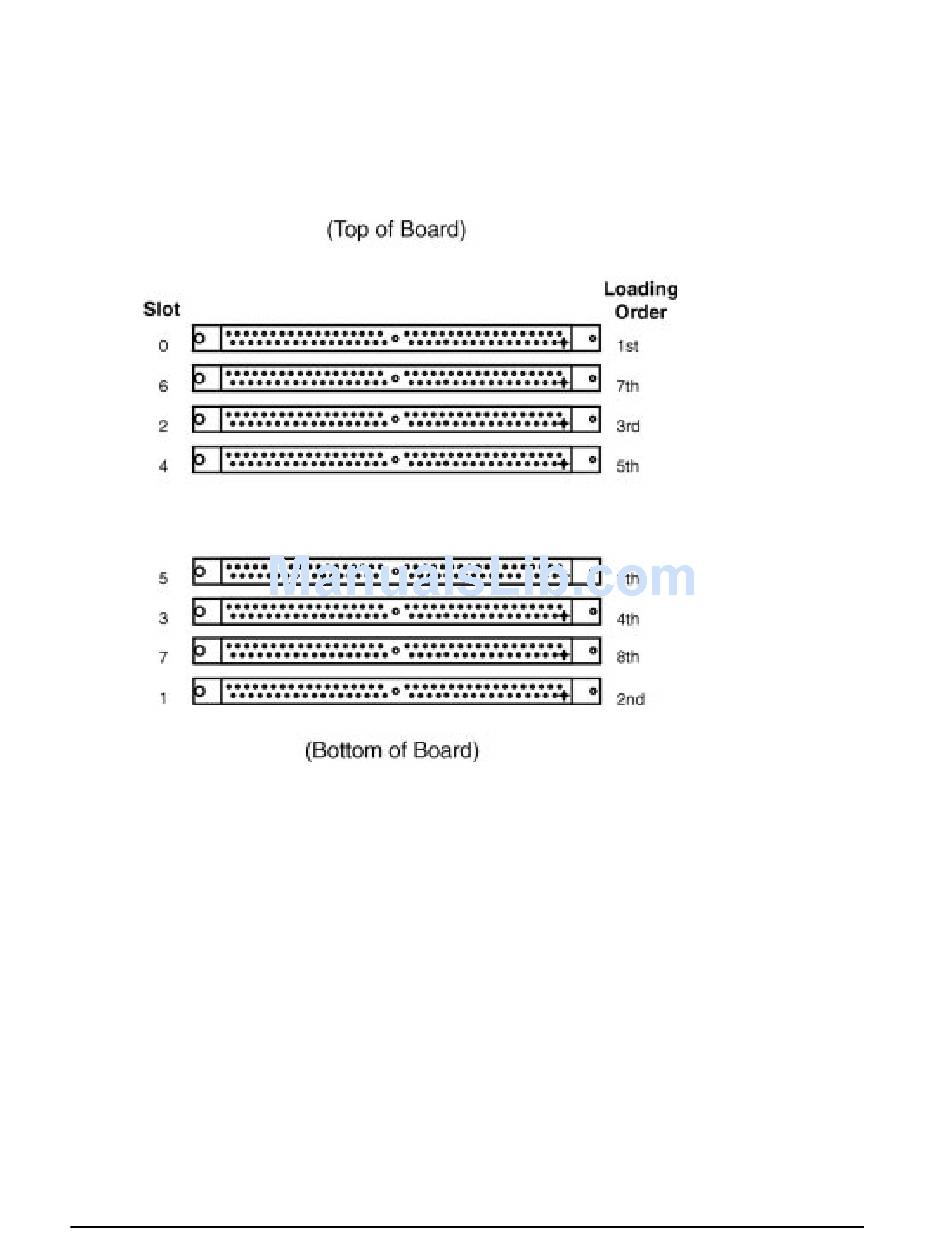

Figure 2-4. Memory Loading Order in the J5xxx
J7xxx Memory Configuration
The J7xxx workstation has sixteen memory slots, labeled 0A, 0B to 7A, 7B. Memory
DIMMs must be installed in pairs in this workstation, and both DIMMs in each pair must
be of equal size. The DIMMs for this workstation currently come in 256 MB and 512 MB
sizes (Product Numbers A4994A and A4995A, respectively). This workstation comes with
eight 512 MB DIMMs as its standard configuration from the factory. Thus, currently the
minimum memory configuration for this workstation is 4 GB, and the maximum is 8 GB.
DIMMs should be loaded in the order shown in Figure 2-5 on the next page, with 0A, 0B
being the first pair of DIMMs loaded, and 7A, 7B being the last pair loaded.
There is a label on the floor of the workstation's interior showing the J7xxx's memory
loading order.
