Rear Panel Components

Rear Panel Components
This section describes the various components located on the rear panel of the J5xxx and
J7xxx workstations. Figure 1-9 shows the locations of these rear panel components.
NOTE To maintain FCC/EMI compliance, verify that all cables are fully seated and
properly fastened.

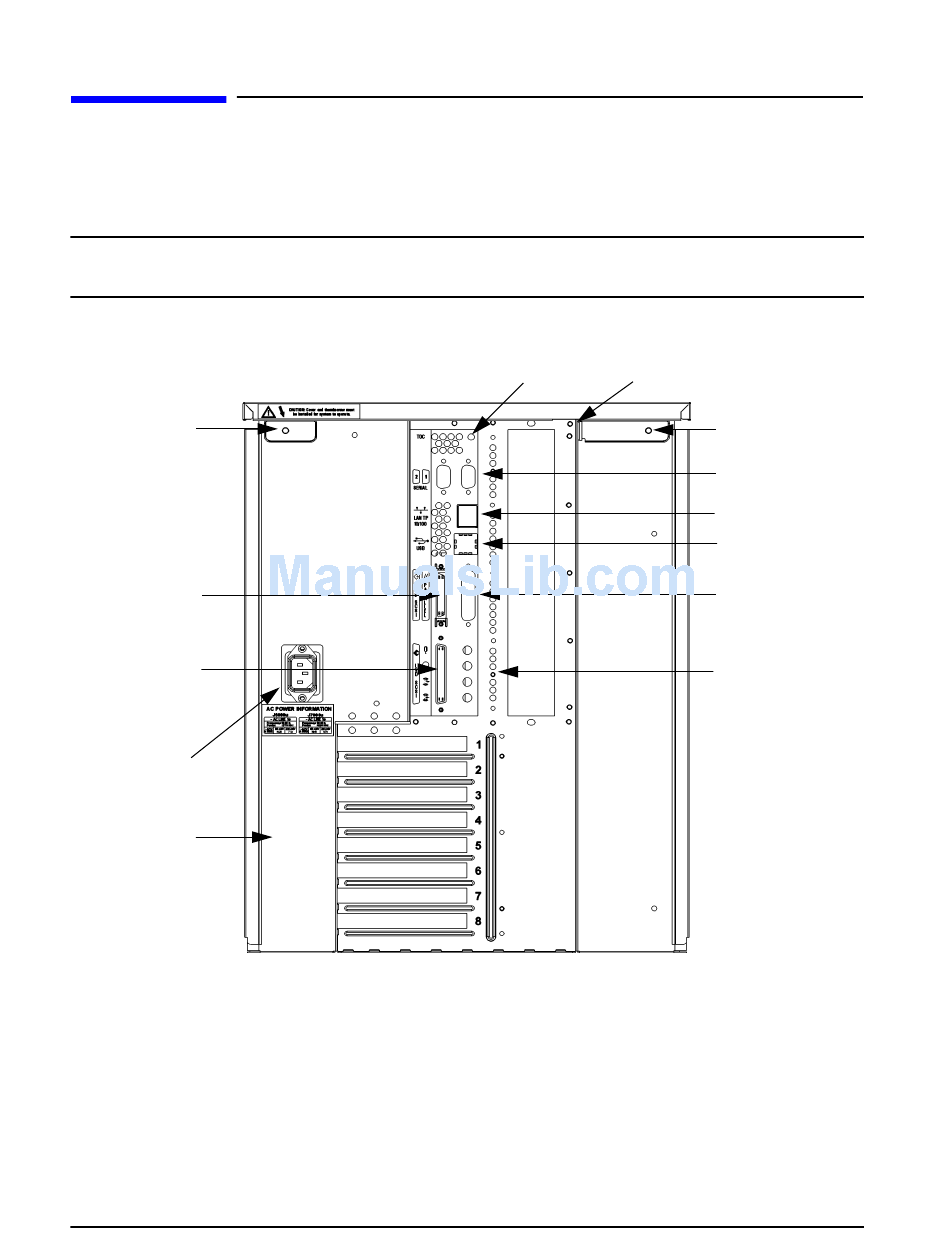

Figure 1-9. Components on the Rear Panel
Power supply
interlock
thumbscrew
(Torx T-15)
NSE SCSI-2
connector
Ultra2 Wide LVD
SCSI connector
Power cord
connector
I/O slots
The following three subsections describe the thumbscrews, connectors, and miscellaneous
components that are located on the rear panel of the J5xxx and J7xxx workstations.
24
{
TOC button Security tab
}
Thumbscrew
(T-15)
Two RS-232C
Serial connectors
LAN 10/100 BaseT
RJ45 connector
Two USB
connectors
Parallel connector
Audio connectors:
Microphone In
Headphones Out
Line Out
Line In
