9. Replace the EMI cover, the top panel, and front panel bezel.
10. After rebooting, use SAM to confirm that the CD ROM drive is recognized by the
system.
DDS-3 Tape Drive (Optional)
This subsection describes how to remove and replace the optional DDS-3 tape drive.
NOTE The bracket assembly and drive bay may be used for either one DDS-3 tape
drive, or one floppy disk drive.
Removing a DDS-3 Tape Drive:
1. Remove the front panel bezel from the workstation.
2. Remove the two T-15 Torx screws securing the DDS-3 tape drive to the front panel of
the workstation chassis.

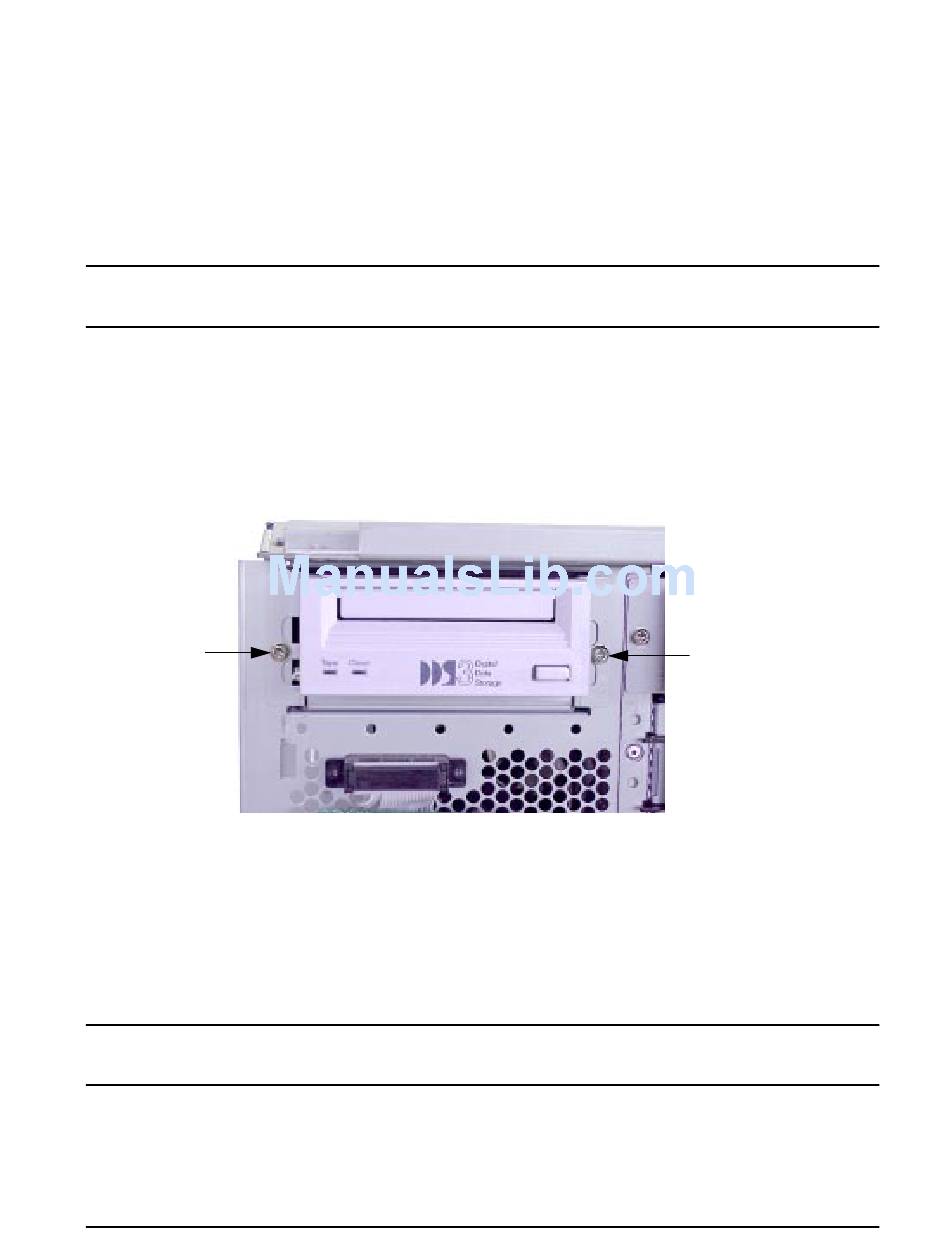

Figure 4-12. Front Panel Screws
T-15 Torx screw
3. Slide the DDS-3 tape/floppy disk drive bracket assembly out of the chassis guide rails.
Disconnect the the power and ribbon cables from the DDS-3 tape drive.
4. To remove the DDS-3 tape drive from the bracket, remove the four T-10 Torx screws
(two on each side) securing the DDS-3 tape drive to the bracket.
Replacing a DDS-3 Tape Drive:
NOTE See "DDS-3 Tape Drive (Optional) Configuration" on page 38 for information
about configuring a DDS-3 tape drive for installation.
1. Remove the front panel bezel and the top panel from the workstation.
2. In the top, left front of the workstation above the DDS-3/floppy disk drive bay, remove
the EMI (electromagnetic interference) cover.
Chapter 4
Field Replaceable Units (FRUs)
FRU Removal and Replacement
T-15 Torx screw
101
