Figure 4-21; Figure 4-22; Figure 4-23 - HP Visualize J5000 Supplementary Manual

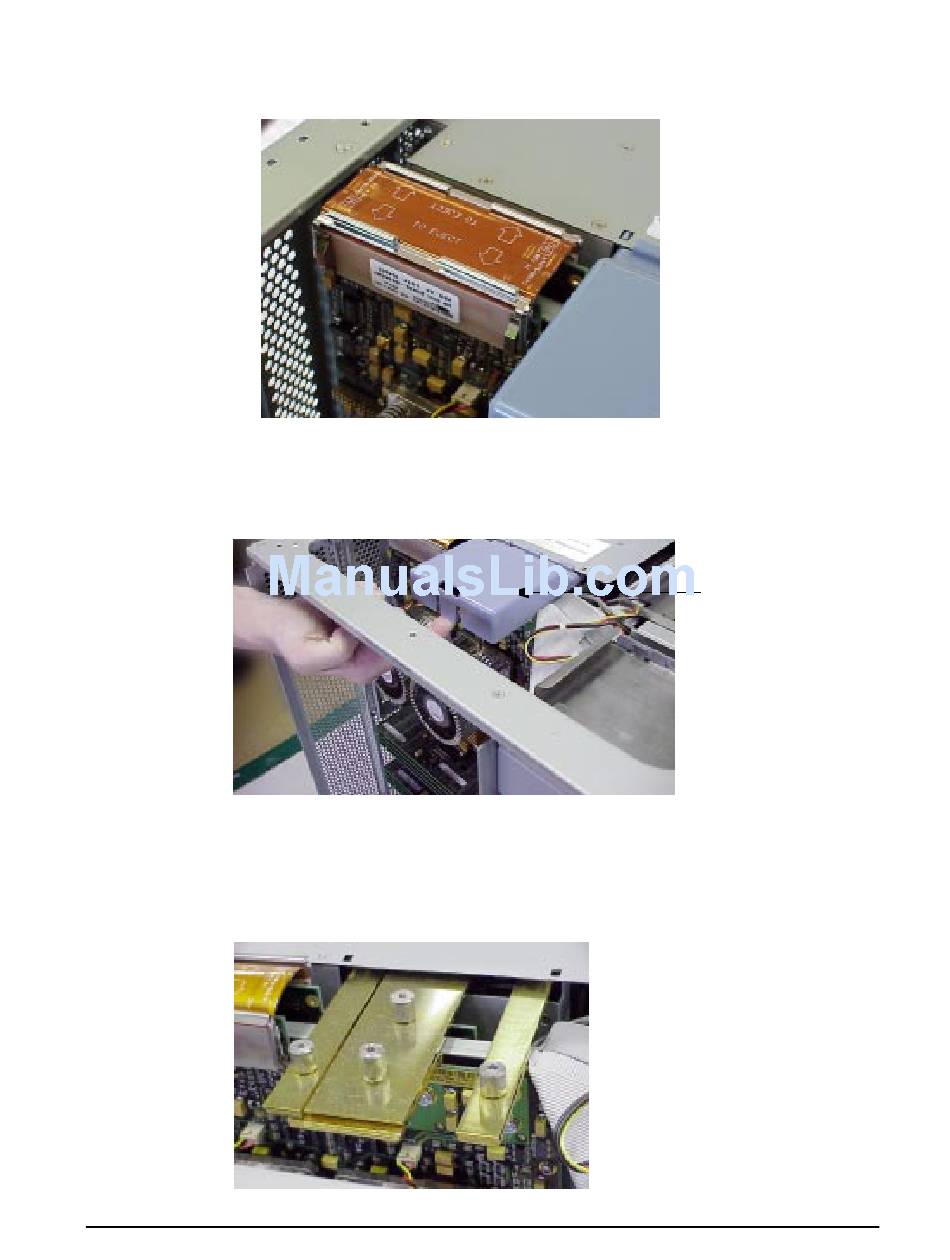

Figure 4-21. Arrows Indicate Where to Pull on the Ejector Handle
3. Remove the bus bar shield at the top of the workstation, as shown in Figure 4-22.
Figure 4-22. Removing the Bus Bar Shield
4. Remove either the four bus bar thumbscrews on the J5xxx workstation, or the five bus
bar thumbscrews on the J7xxx. Figure 4-23 shows these thumbscrews on the J5xxx
workstation.
Figure 4-23. Bus Bar Thumbscrews
