Field Replaceable Units (FRUs)
FRU Removal and Replacement

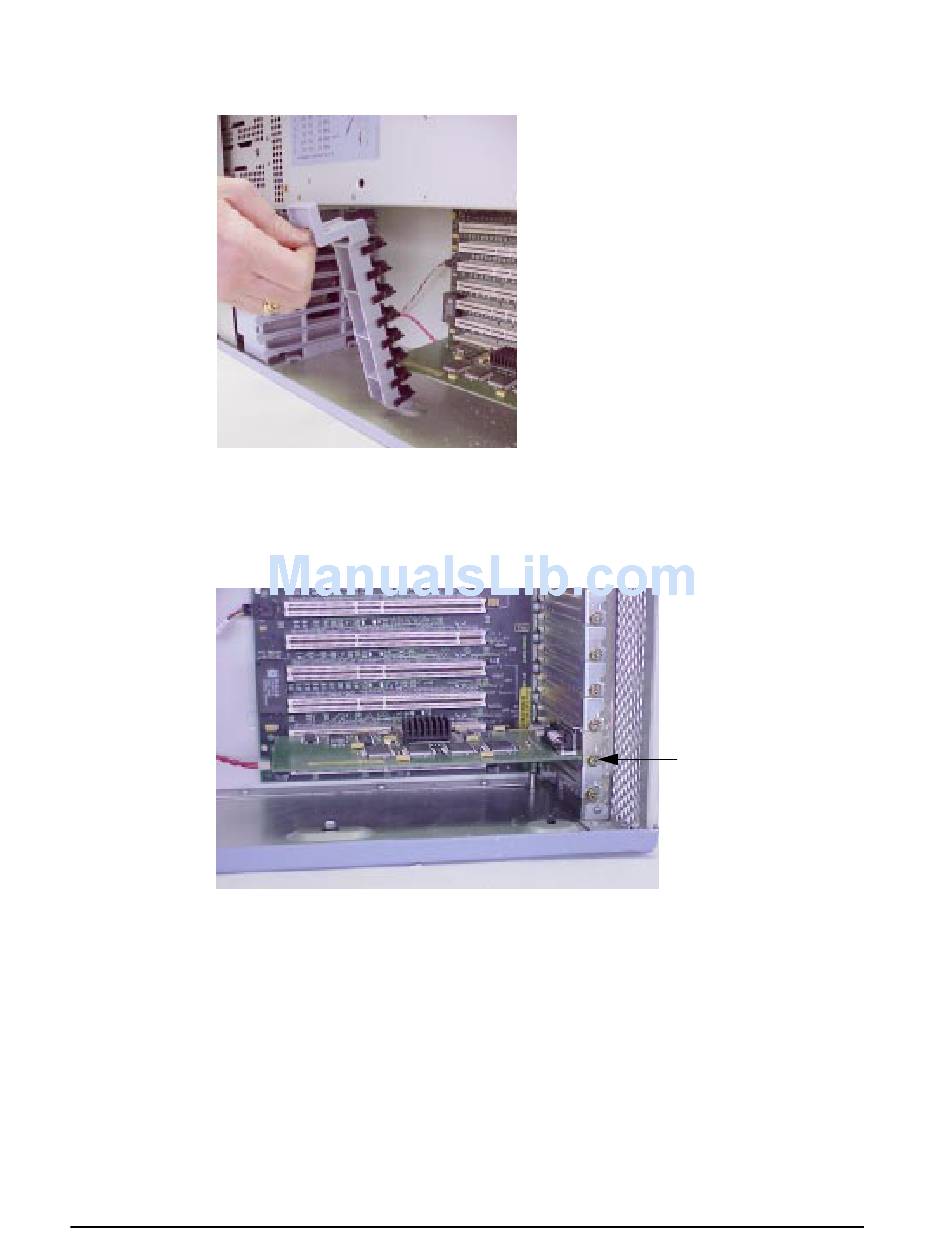

Figure 4-35. Removing the PCI Retainer Clip
4. Remove the screw that secures the I/O card to the I/O slot. An example I/O slot screw
for an installed I/O card is shown in Figure 4-36. Save the screw for future use (for
example, to install a new I/O card or to replace the I/O slot with a filler plate).
Figure 4-36. I/O Slot Screw
5. Grasp the I/O card by its edge and pull straight out. Place the I/O card in an antistatic
bag for storage.
Replacing an I/O Card
To replace an I/O card, do the following:
1. Remove the top panel and the right side panel of the workstation.
2. Locate the I/O board and its I/O slots on the right side of the workstation, as shown in
Figure 4-34 on the previous page. Note that the I/O board extends up behind the power
supply, and that the eight I/O slots are located below the power supply.
122
Screw for securing
I/O card to I/O slot
