line-CVM-D32
 Primary voltage:
Minimum value: 1.0 V
Maximum value: 2000000.0 V
 Secondary voltage:
Minimum value: 1.00 V
Maximum value: 2000000.00 V
Use key to skip to the next programming point.

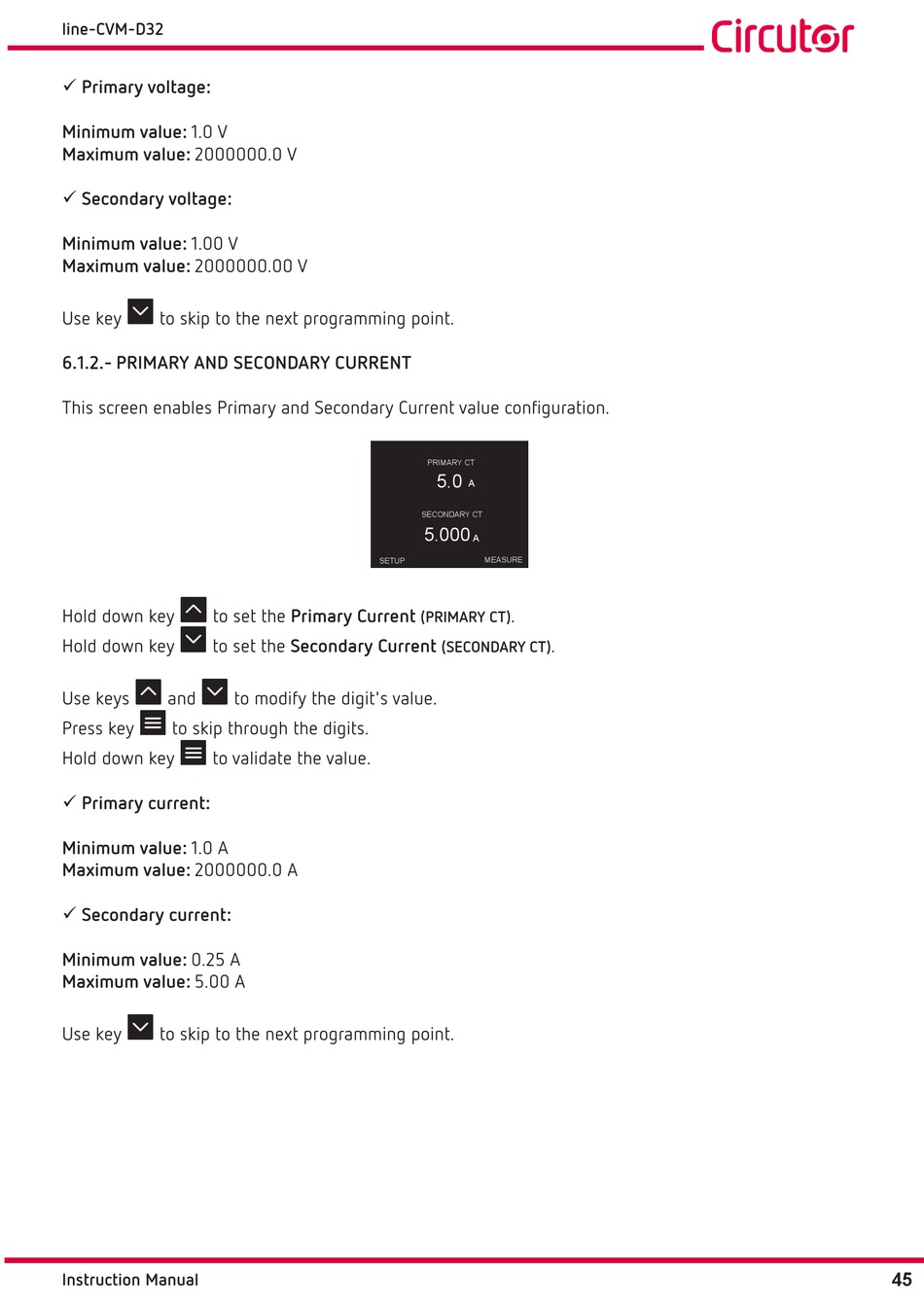

6�1�2�- PRIMARY AND SECONDARY CURRENT
This screen enables Primary and Secondary Current value configuration.
Hold down key to set the Primary Current
to set the Secondary Current
Hold down key
Use keys and to modify the digit's value.
Press key to skip through the digits.
Hold down key to validate the value.
 Primary current:
Minimum value: 1.0 A
Maximum value: 2000000.0 A
 Secondary current:
Minimum value: 0.25 A
Maximum value: 5.00 A
Use key to skip to the next programming point.
Instruction Manual
PRIMARY CT
5.0
A
SECONDARY CT
5.000
A
MEASURE
SETUP
.
(PRIMARY CT)
.
(SECONDARY CT)
45
