Removing And Installing Fog Light/Daylight Driving Light - Skoda Octavia II 2004 Workshop Manual

Octavia II 2004 ➤ , Octavia II 2010 ➤
Electrical system - Edition 12.2013

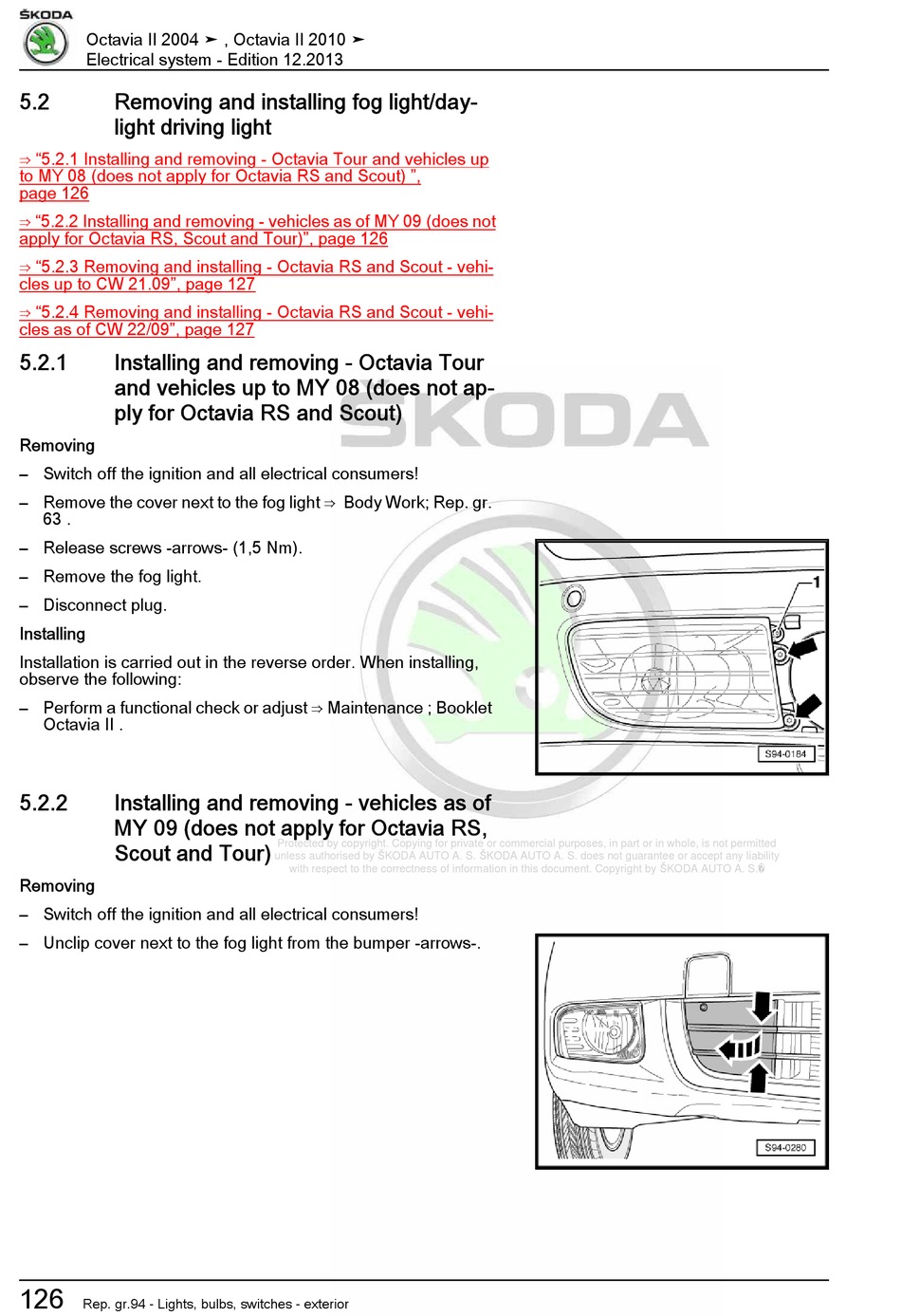

5.2 Removing and installing fog light/day‐
light driving light
⇒ "5.2.1 Installing and removing - Octavia Tour and vehicles up
to MY 08 (does not apply for Octavia RS and Scout) ",
page 126
⇒ "5.2.2 Installing and removing - vehicles as of MY 09 (does not
apply for Octavia RS, Scout and Tour)", page 126
⇒ "5.2.3 Removing and installing - Octavia RS and Scout - vehi‐
cles up to CW 21.09", page 127
⇒ "5.2.4 Removing and installing - Octavia RS and Scout - vehi‐
cles as of CW 22/09", page 127
5.2.1 Installing and removing - Octavia Tour
and vehicles up to MY 08 (does not ap‐
ply for Octavia RS and Scout)
Removing
– Switch off the ignition and all electrical consumers!
– Remove the cover next to the fog light ⇒ Body Work; Rep. gr.
63 .
– Release screws -arrows- (1,5 Nm).
– Remove the fog light.
– Disconnect plug.
Installing
Installation is carried out in the reverse order. When installing,
observe the following:
– Perform a functional check or adjust ⇒ Maintenance ; Booklet
Octavia II .
5.2.2 Installing and removing - vehicles as of
MY 09 (does not apply for Octavia RS,
Scout and Tour)
Removing
– Switch off the ignition and all electrical consumers!
– Unclip cover next to the fog light from the bumper -arrows-.
126
Rep. gr.94 - Lights, bulbs, switches - exterior
