2.10 Remove and install performance mod‐
ule for the headlight - J667- left or -J668-
right
Removing
– Remove headlight
⇒ "1.2 Removing and installing headlight", page 80

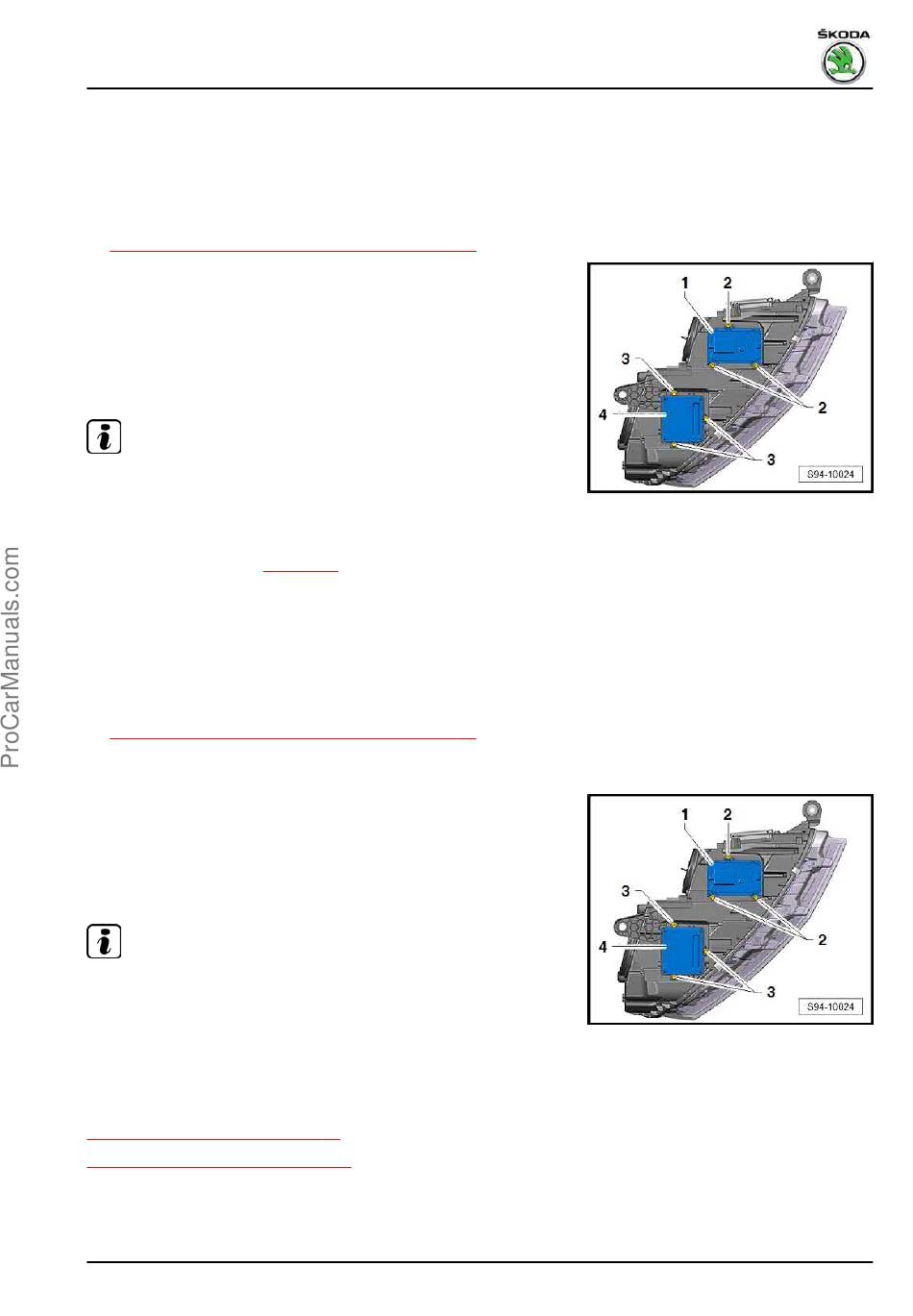

– Unscrew screws -2- (1.4 Nm) and remove the control unit
-1-.
– Release connector and pull it off.
Installing
Installation is carried out in the reverse order. When installing,
observe the following:
Note
Correctly install the seal when installing the unit. Water ingress
will destroy the headlight.
– If the performance module was replaced, then the coding must
be carried out with ⇒ Vehicle diagnostic tester and the head‐
lights need adjusting
2.11 Removing and installing Control unit for
daylight driving light and side light -
J860- (LED module) left and -J861- right
Removing
– Left side- remove headlight
⇒ "1.2 Removing and installing headlight", page 80
– Right side- remove the front right wheelhouse liner ⇒ Body
Work; Rep. gr. 66 .
– Unscrew screws -3- (1.4 Nm) and remove the control unit
-4-.
Installing
Installation is carried out in the reverse order. When installing,
observe the following:
Note
Correctly install the seal when installing the unit. Water ingress
will destroy the headlight.
2.12 Removing and installing the cornering
light and headlight range control unit -
J745-
⇒ "2.12.1 Left-hand drive", page 95
⇒ "2.12.2 Right-hand drive", page 96
2.12.1 Left-hand drive
The control unit is located above the brake pedal.
⇒ page 80 .
