Thus making sure this exposure time is not earlier than the camera's last frame creation time of
the 1st trigger signal.

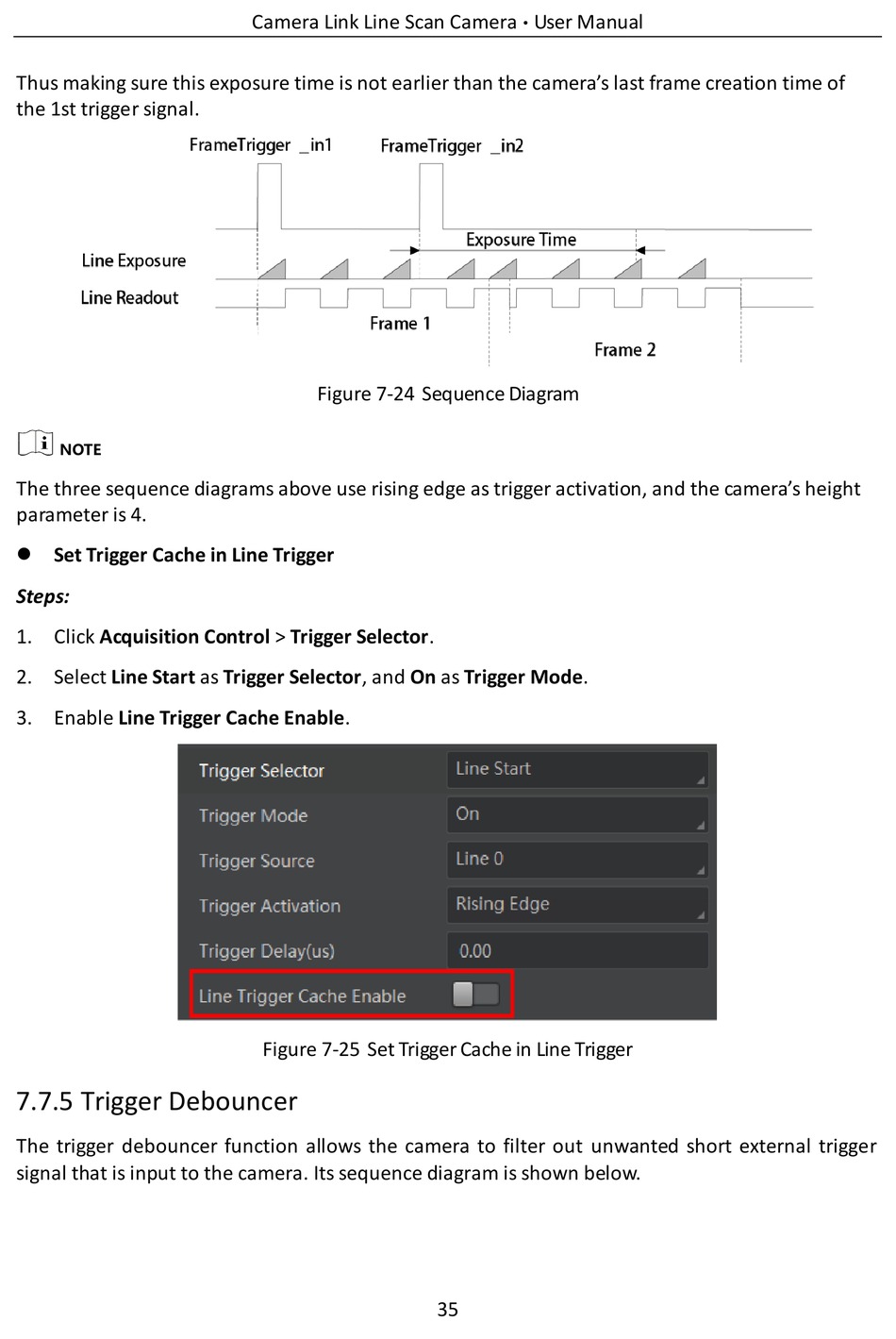

Figure 7-24 Sequence Diagram
The three sequence diagrams above use rising edge as trigger activation, and the camera's height
parameter is 4.
 Set Trigger Cache in Line Trigger
Steps:
1. Click Acquisition Control > Trigger Selector.
2. Select Line Start as Trigger Selector, and On as Trigger Mode.
3. Enable Line Trigger Cache Enable.
Figure 7-25 Set Trigger Cache in Line Trigger

7.7.5 Trigger Debouncer

The trigger debouncer function allows the camera to filter out unwanted short external trigger
signal that is input to the camera. Its sequence diagram is shown below.
