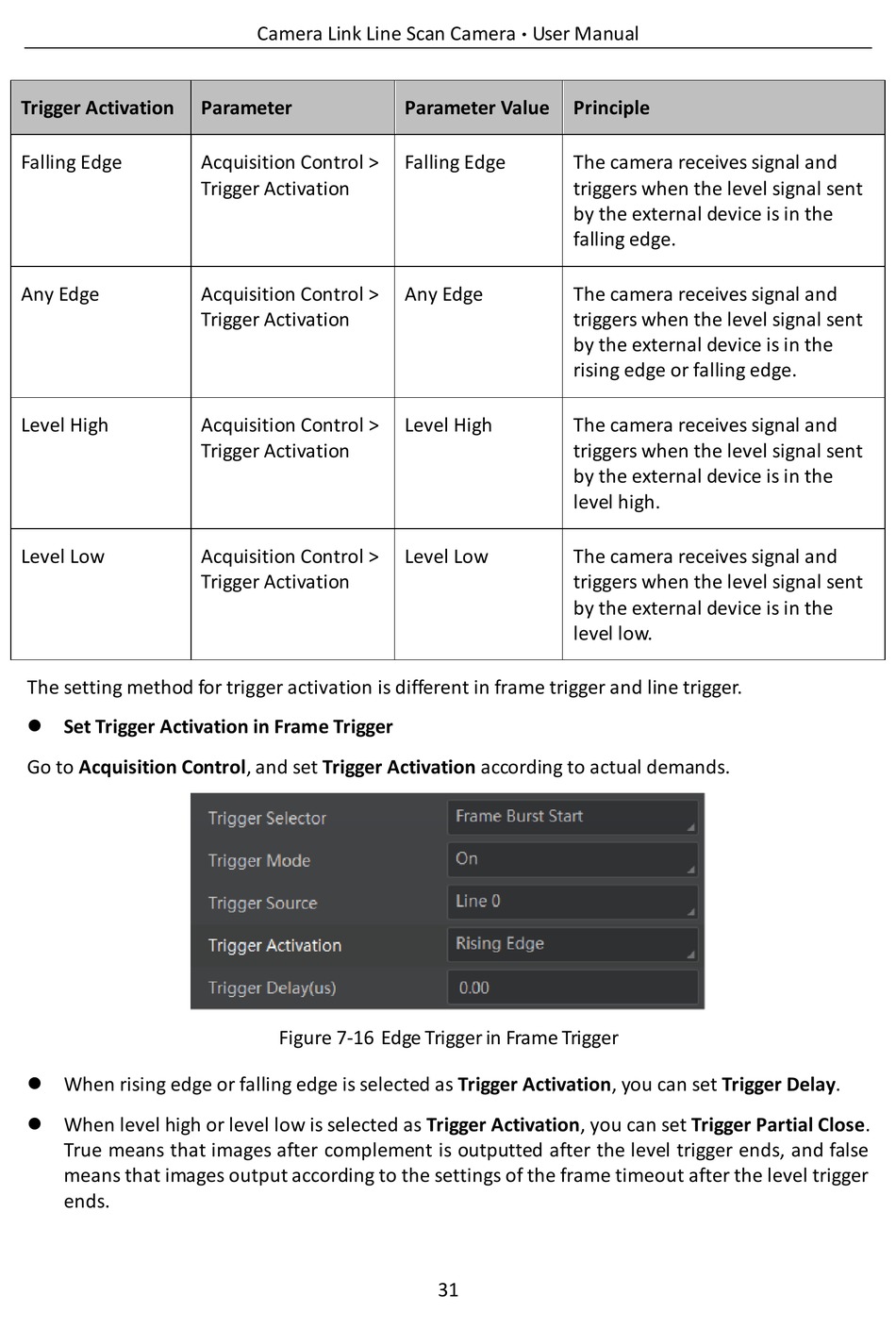

Trigger Activation
Falling Edge
Any Edge
Level High
Level Low
The setting method for trigger activation is different in frame trigger and line trigger.
 Set Trigger Activation in Frame Trigger
Go to Acquisition Control, and set Trigger Activation according to actual demands.
 When rising edge or falling edge is selected as Trigger Activation, you can set Trigger Delay.
 When level high or level low is selected as Trigger Activation, you can set Trigger Partial Close.
True means that images after complement is outputted after the level trigger ends, and false
means that images output according to the settings of the frame timeout after the level trigger
ends.
Camera Link Line Scan Camera
Parameter
Acquisition Control >
Trigger Activation
Acquisition Control >
Trigger Activation
Acquisition Control >
Trigger Activation
Acquisition Control >
Trigger Activation
Figure 7-16 Edge Trigger in Frame Trigger
User Manual
·
Parameter Value
Falling Edge
Any Edge
Level High
Level Low
31
Principle
The camera receives signal and
triggers when the level signal sent
by the external device is in the
falling edge.
The camera receives signal and
triggers when the level signal sent
by the external device is in the
rising edge or falling edge.
The camera receives signal and
triggers when the level signal sent
by the external device is in the
level high.
The camera receives signal and
triggers when the level signal sent
by the external device is in the
level low.
