Set Frame Grabber Trigger Control - HikRobot MV-CL042-91CM User Manual

Camera Link Line Scan Camera User Manual
·

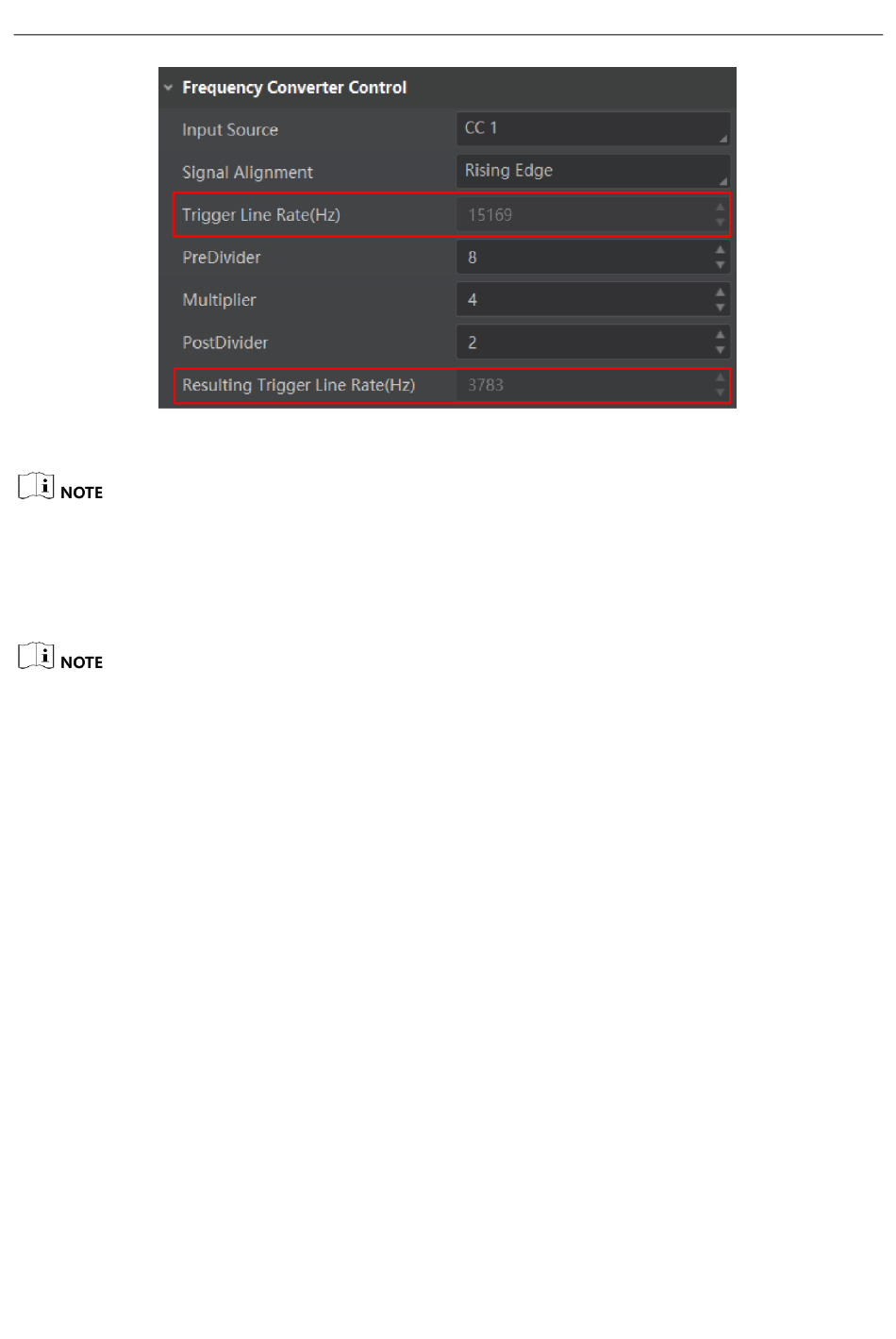

Figure 7-11 View Trigger Line Rate
Make sure that line trigger is enabled and input source value of frequency converter control and
trigger source value of acquisition control is the same before viewing trigger line rate.

7.6.6 Set Frame Grabber Trigger Control

The specific trigger source may differ by camera models.
When selecting CC1/CC2/CC3/CC4 as Trigger Source, the camera is in frame grabber trigger status.
Frame grabber triggers camera to acquire images by sending signal via Camera Link cable.
Steps:
1. Click Acquisition Control > Trigger Selector.
2. Select Frame Burst Start or Line Start as Trigger Selector, and On as Trigger Mode.
3. Select CC1/CC2/CC3/CC4 as Trigger Source.
