No. Name
1 Lens Mount
2 Screw Hole
3 USB Interface
Screw Hole for Camera
4
Link Interface
5 CL1 Interface
6 CL2 Interface
7 LED Indicator
8 Power and I/O Interface
9 Fan
Camera Link Line Scan Camera

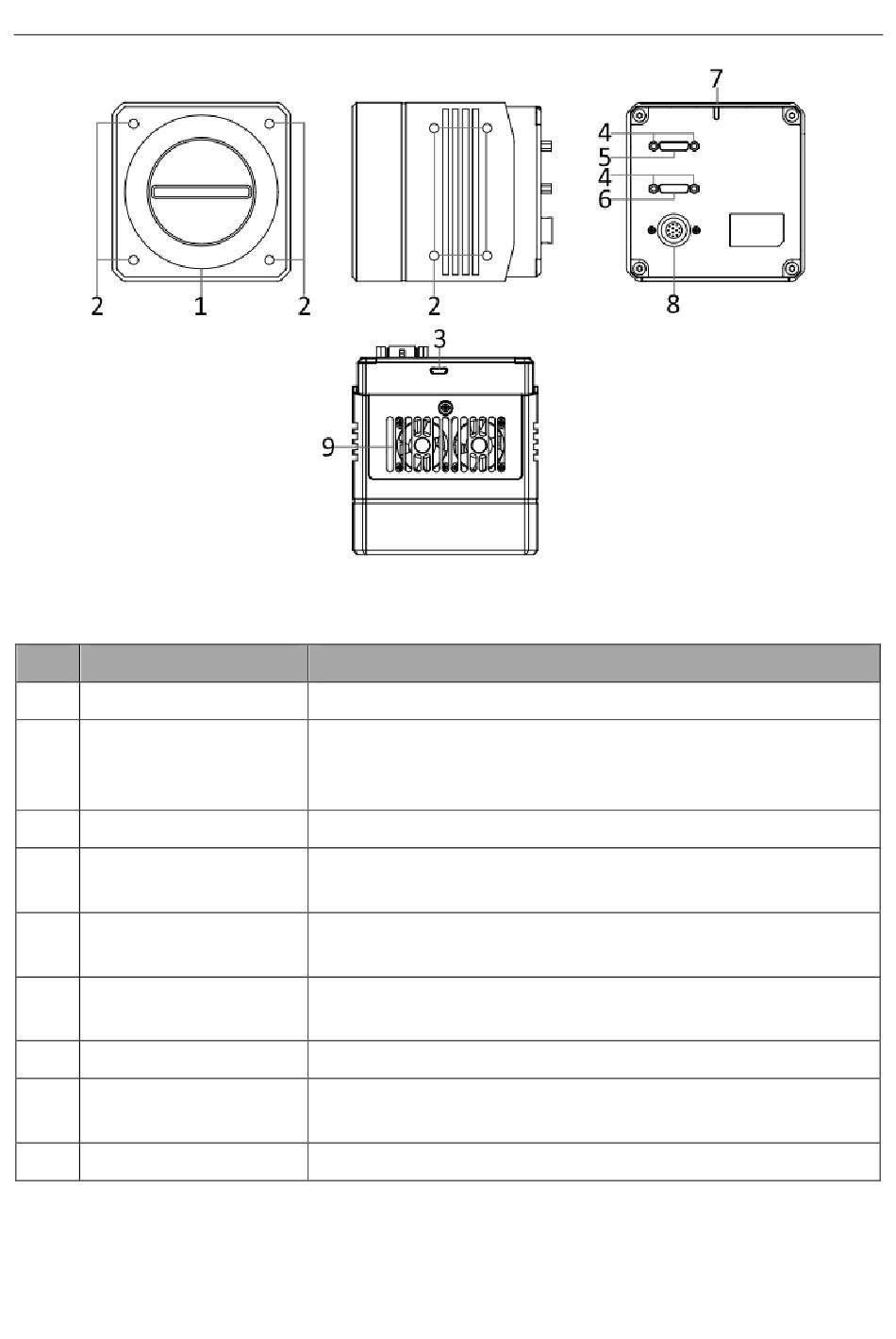

Figure 2-3 Appearance (Type III)
Table 2-1 Component Description
Description
It is used to install lens.
It is used to fix the camera to the installation position.
● For type I and type III cameras, you should use M4 screw.
● For type II camera, you should use M3 screw.
It is used to update the camera's firmware.
It is used to fix Camera Link cables.
It refers to the Camera Link1 with SDR interface, and it is used
to transmit data.
It refers to the Camera Link2 with SDR interface, and it is used
to transmit data.
It indicates the camera's status.
It refers to the 12-pin P10 connector that provides power,
input/output signal, etc.
It is used to cool the camera.
