Camera Link Line Scan Camera User Manual
·
Steps:
1. Click Analog Control > Gamma Selector.
2. Select User as Gamma Selector.
3. Enable Gamma Enable.
4. Enter Gamma according to actual demands, and its range is from 0 to 4.

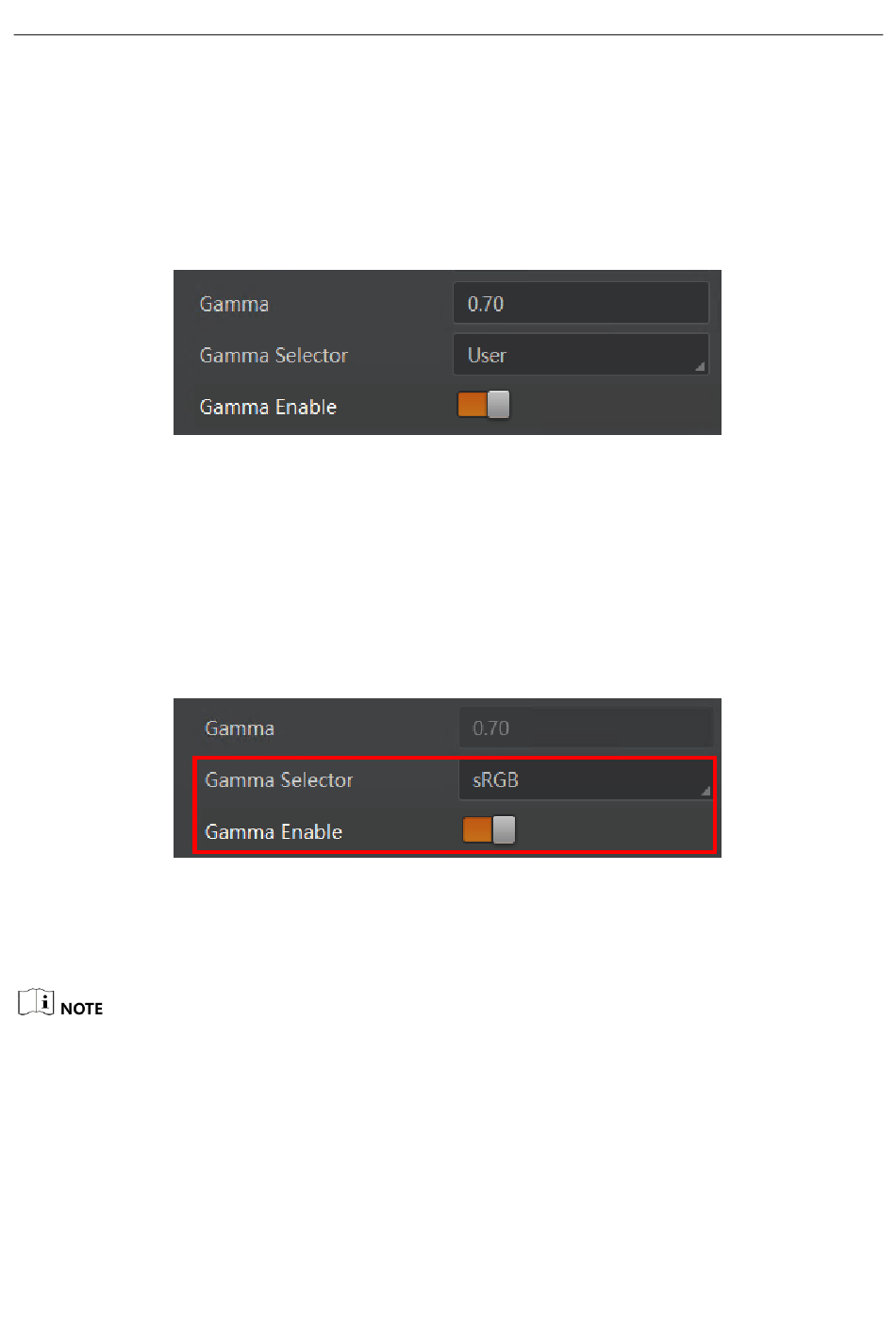

Figure 10-20 Set User Mode
You can set sRGB mode as shown below.
Steps:
1. Click Analog Control > Gamma Selector.
2. Select sRGB as Gamma Selector.
3. Enable Gamma Enable.
Figure 10-21 Set sRGB Mode

10.13 Set AOI

The AOI function may differ by camera models.
The camera supports AOI function that can adjust the brightness and white balance of the entire
image based on the area you selected.
Steps:
1. Click Analog Control > Auto Function AOI Selector, and select AOI 1 or AOI 2 as Auto Function
AOI Selector.
66
