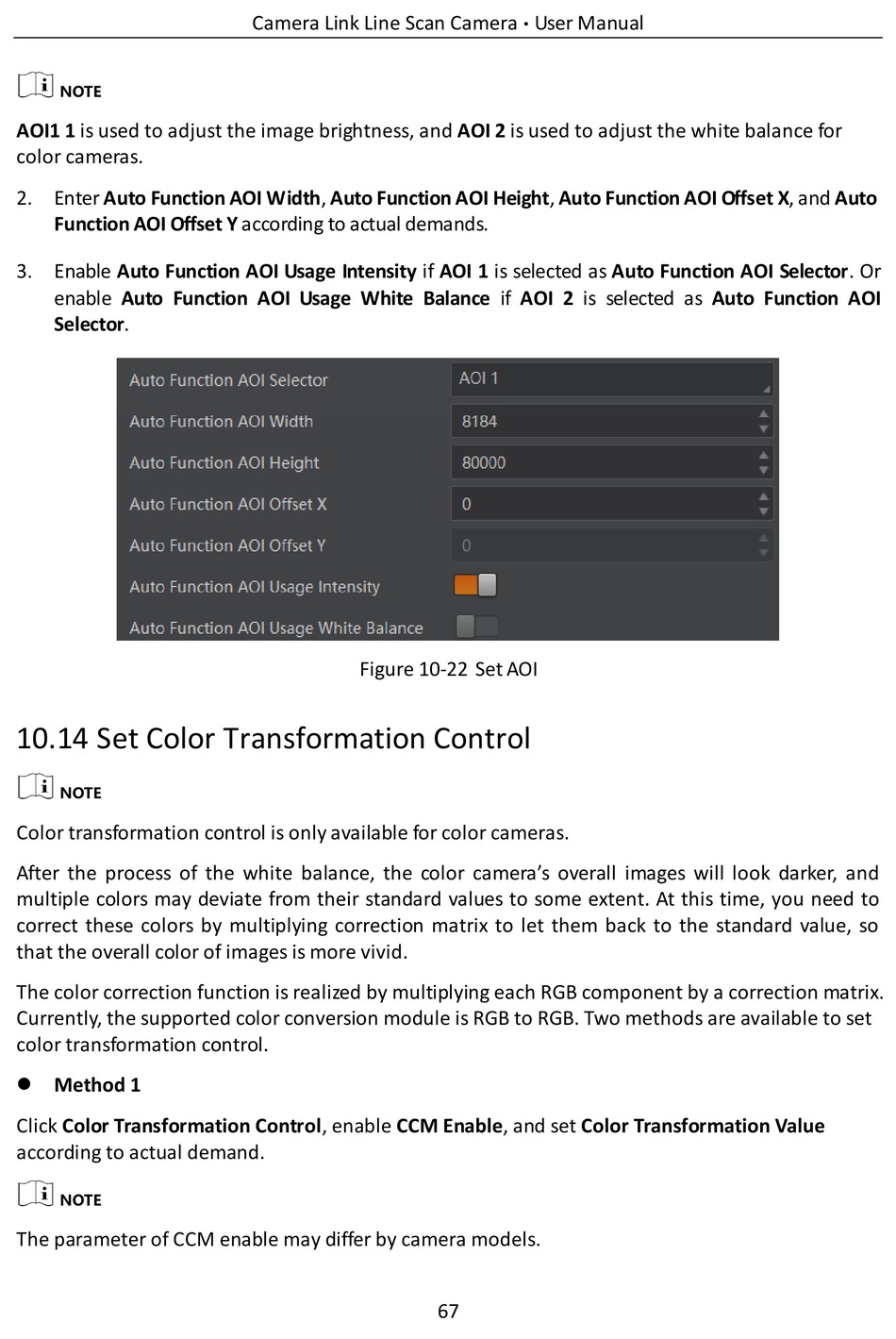

AOI1 1 is used to adjust the image brightness, and AOI 2 is used to adjust the white balance for
color cameras.
2. Enter Auto Function AOI Width, Auto Function AOI Height, Auto Function AOI Offset X, and Auto
Function AOI Offset Y according to actual demands.
3. Enable Auto Function AOI Usage Intensity if AOI 1 is selected as Auto Function AOI Selector. Or
enable Auto Function AOI Usage White Balance if AOI 2 is selected as Auto Function AOI
Selector.

10.14 Set Color Transformation Control

Color transformation control is only available for color cameras.
After the process of the white balance, the color camera's overall images will look darker, and
multiple colors may deviate from their standard values to some extent. At this time, you need to
correct these colors by multiplying correction matrix to let them back to the standard value, so
that the overall color of images is more vivid.
The color correction function is realized by multiplying each RGB component by a correction matrix.
Currently, the supported color conversion module is RGB to RGB. Two methods are available to set
color transformation control.
 Method 1
Click Color Transformation Control, enable CCM Enable, and set Color Transformation Value
according to actual demand.
The parameter of CCM enable may differ by camera models.
Camera Link Line Scan Camera
Figure 10-22 Set AOI
