Camera Link Line Scan Camera User Manual
·

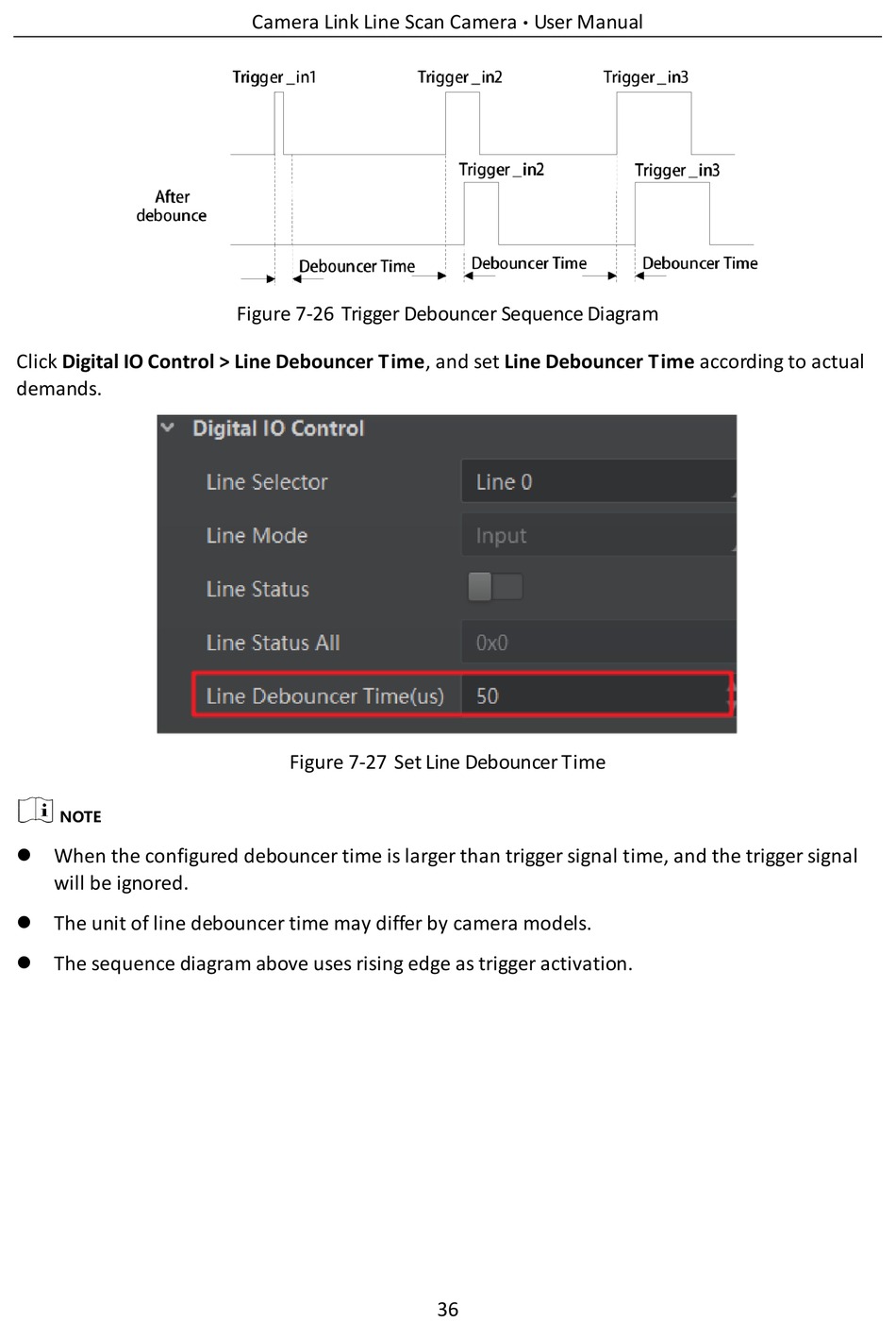

Figure 7-26 Trigger Debouncer Sequence Diagram
Click Digital IO Control > Line Debouncer Time, and set Line Debouncer Time according to actual
demands.
Figure 7-27 Set Line Debouncer Time
 When the configured debouncer time is larger than trigger signal time, and the trigger signal
will be ignored.
 The unit of line debouncer time may differ by camera models.
 The sequence diagram above uses rising edge as trigger activation.
