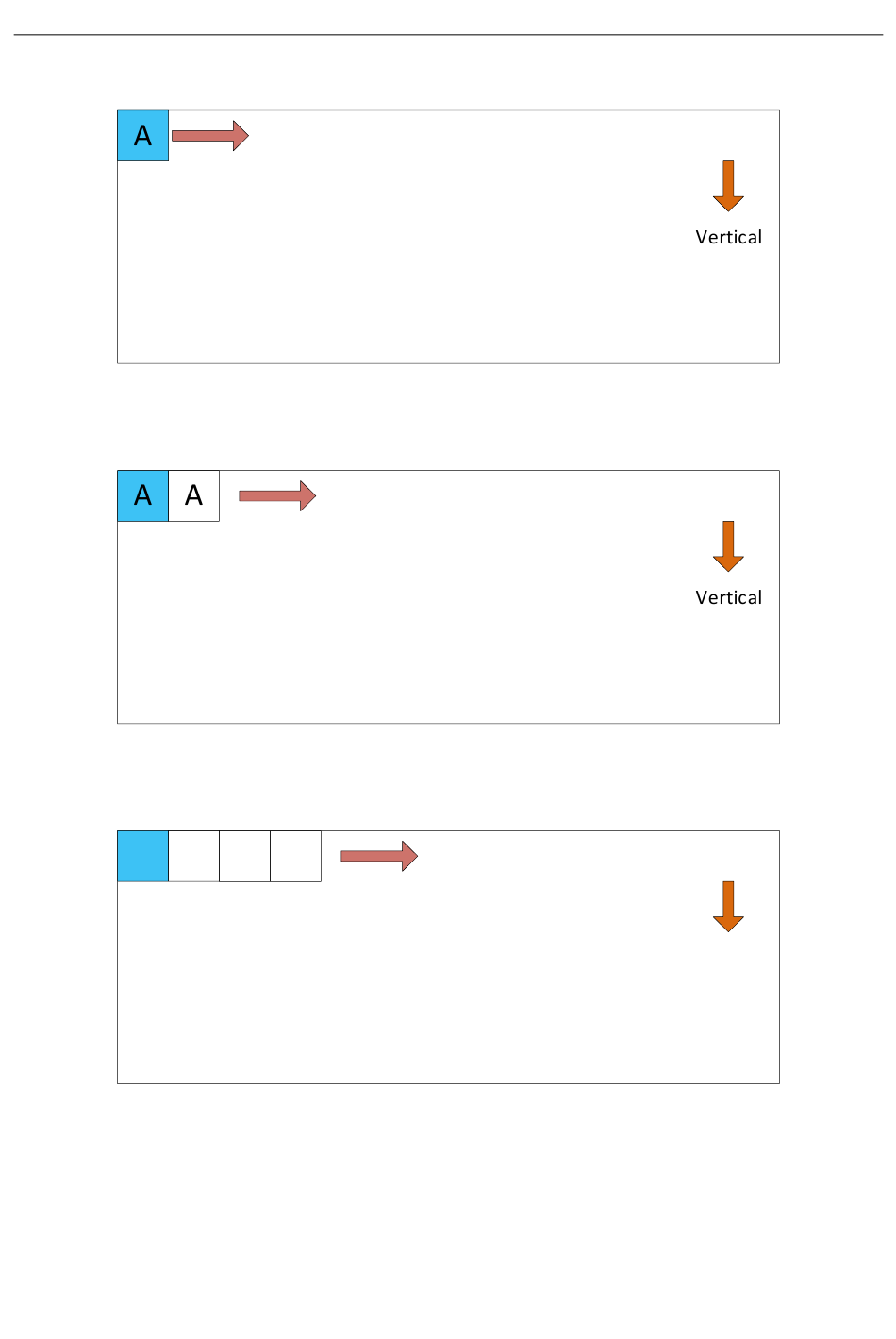

When Device Tap Geometry is Geometry_1X, the output order of tap is shown below.
When Device Tap Geometry is Geometry_1X2 the output order of tap is shown below.
When Device Tap Geometry is Geometry_1X4, the output order of tap is shown below.
A A
Camera Link Line Scan Camera
Figure 11-6 Geometry_1X
Figure 11-7 Geometry_1X2
A A
Figure 11-8 Geometry_1X4
User Manual
·
82
Vertical
