Frame Grabber Parameters
Pixel Clock Frequency
Camera Link config
Taps
Device Tap Configuration

5.3 Install MVS Client Software

MVS client software is used to connect the camera, set its parameters, etc.
 The MVS client software is compatible with 32/64-bit Windows 7/10 operating systems, and
you can download it from https://en.hikrobotics.com/.
 The graphic user interface may differ by different versions of the client software you use, and
you are required to use V3.1.0 and above versions.
 The client software does not support acquiring images for Camera Link cameras, and you can
use the frame grabber software instead.
 You cannot use the MVS client software and the frame grabber software at the same time to
read or write camera's parameters.
Steps:
1. Double click the MVS installation package.
2. Select the language.
3. Read and check Terms of the License Agreement.
Camera Link Line Scan Camera

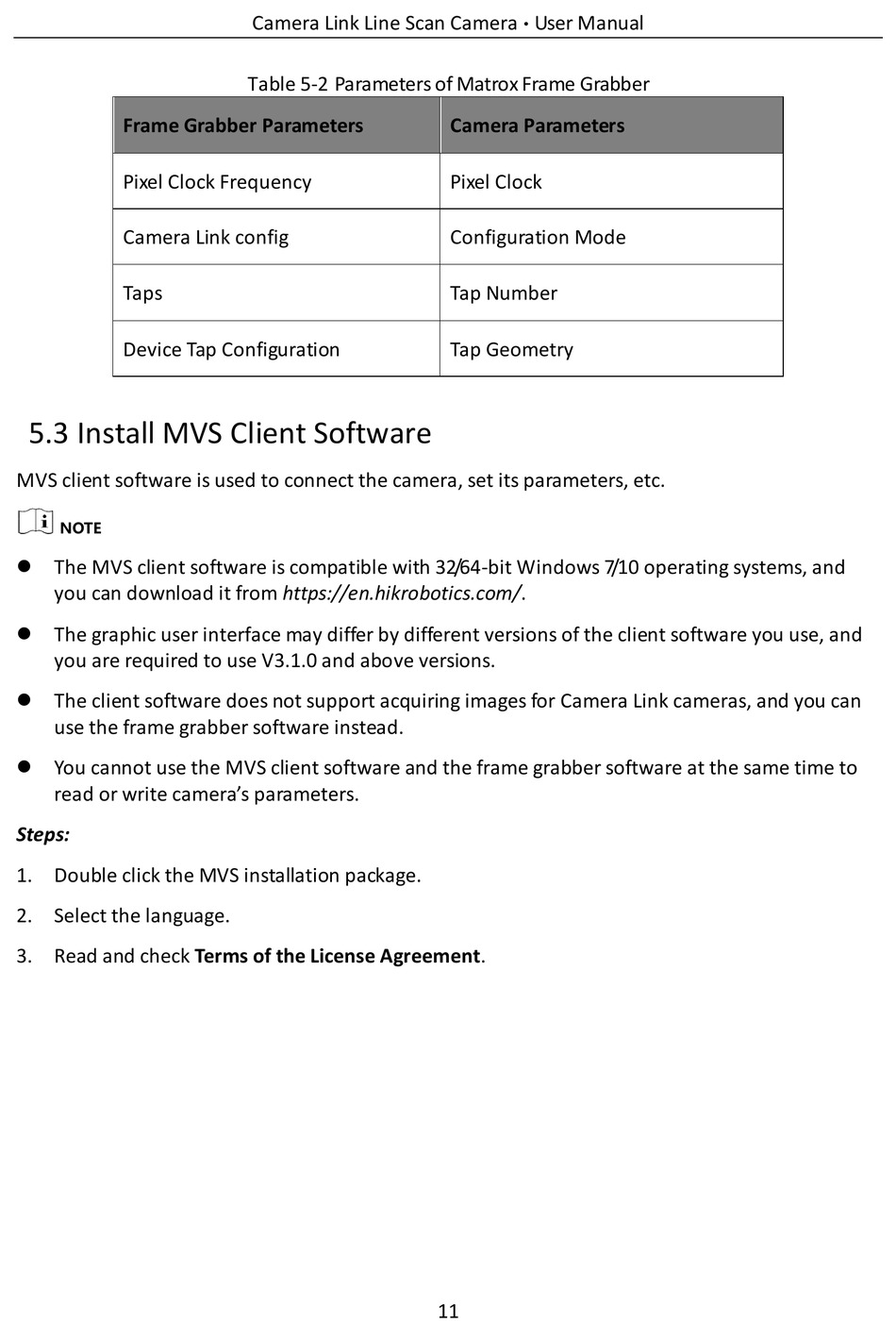

Table 5-2 Parameters of Matrox Frame Grabber
User Manual
·
Camera Parameters
Pixel Clock
Configuration Mode
Tap Number
Tap Geometry
11
