File Access Control - HikRobot MV-CL042-91CM User Manual

Camera Link Line Scan Camera User Manual
·

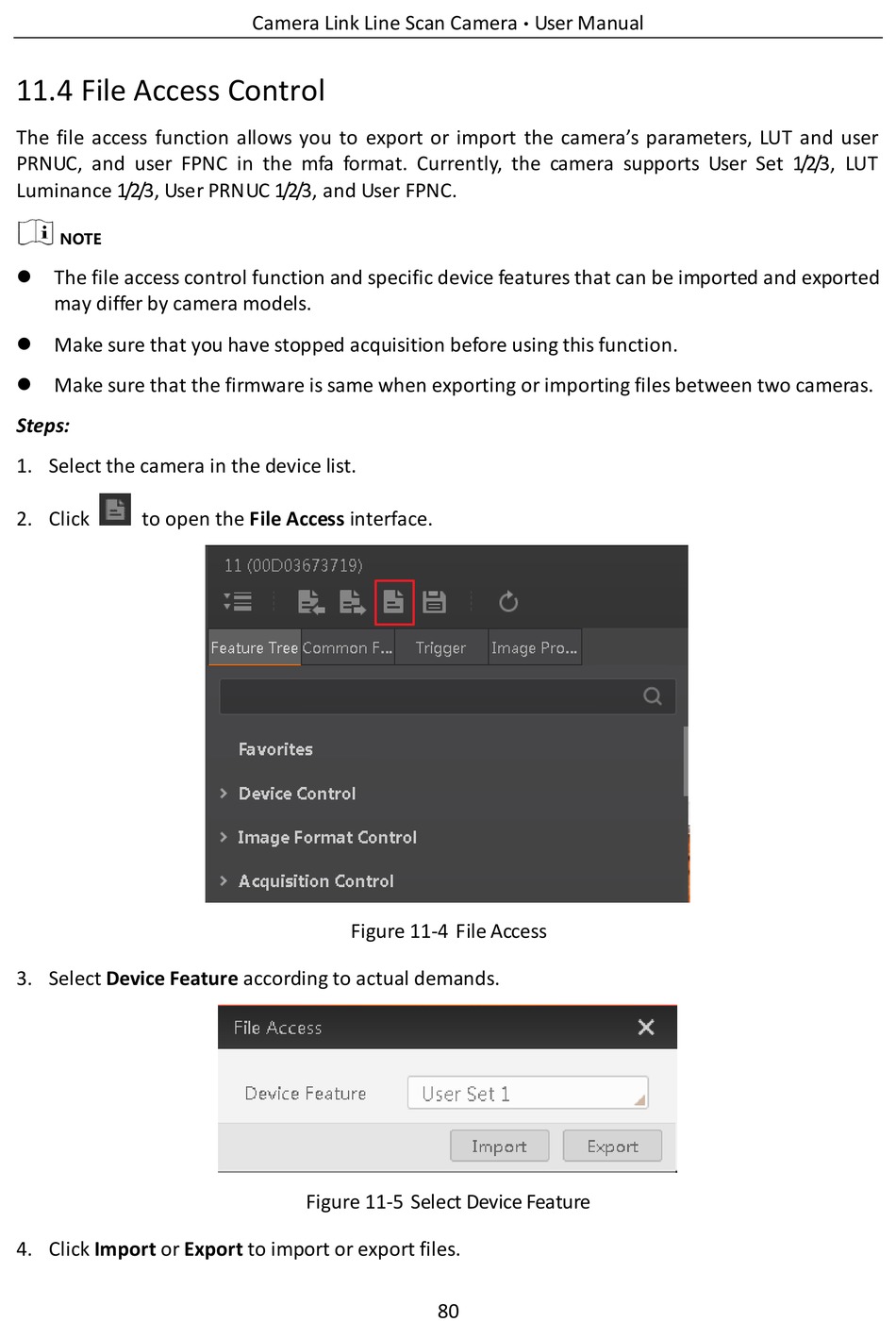

11.4 File Access Control

The file access function allows you to export or import the camera's parameters, LUT and user
PRNUC, and user FPNC in the mfa format. Currently, the camera supports User Set 1/2/3, LUT
Luminance 1/2/3, User PRNUC 1/2/3, and User FPNC.
 The file access control function and specific device features that can be imported and exported
may differ by camera models.
 Make sure that you have stopped acquisition before using this function.
 Make sure that the firmware is same when exporting or importing files between two cameras.
Steps:
1. Select the camera in the device list.
2. Click to open the File Access interface.
Figure 11-4 File Access
3. Select Device Feature according to actual demands.
Figure 11-5 Select Device Feature
4. Click Import or Export to import or export files.
80
