Figure 8-2 Select Output Signal (Type II Camera)

8.2 Set Output Signal

The output signal of the camera is switch signal, which is used to control external devices such as
alarm light, light source and PLC. There are two ways to achieve output signal, including line
inverter and strobe signal.

8.2.1 Enable Level Inverter

The level inverter function is used to control the camera's output signal manually. You can click
Digital IO Control, and enable Level Inverter.

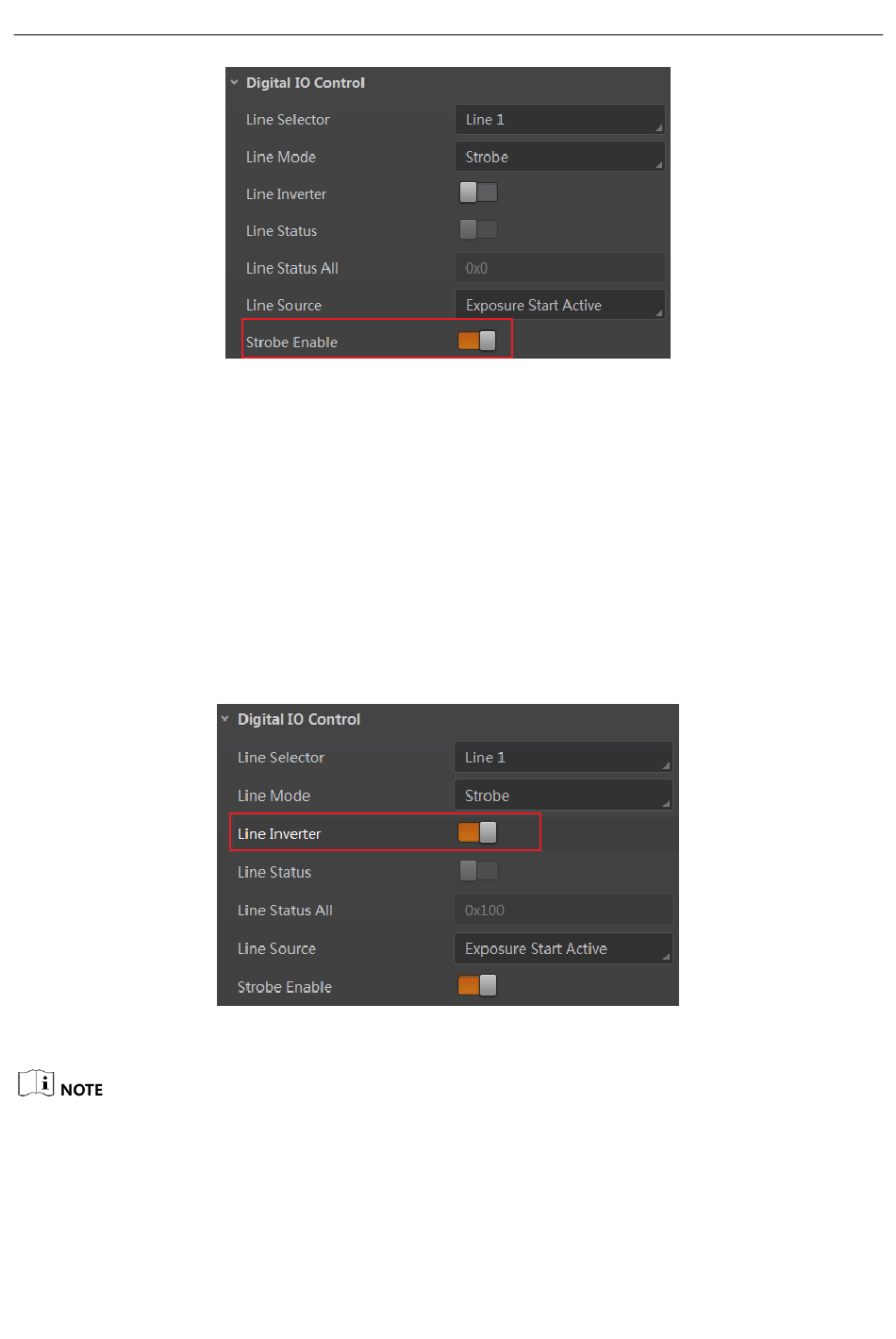

Figure 8-3 Enable Level Inverter
The Line Inverter parameter is disabled by default.

8.2.2 Enable Strobe Signal
