Camera Link Line Scan Camera User Manual
·

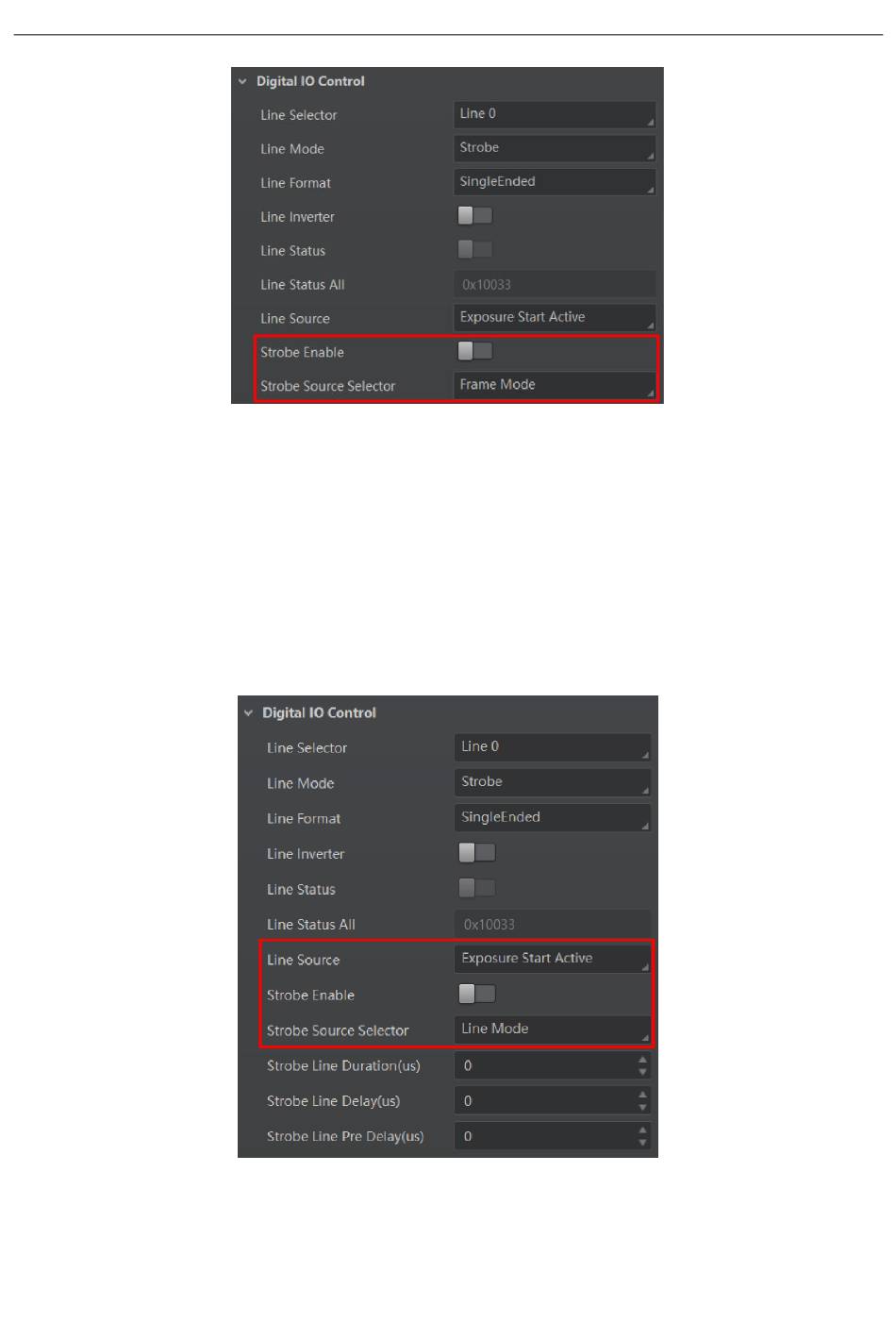

Figure 8-5 Set Frame Mode
If you need to let the camera output signals when event sources occur that are corresponding to
each line image, follow steps below to set it.
Steps:
1. Click Digital IO Control, and select Line Mode as Strobe Source Selector.
2. Set Line Source according to actual demands.
3. Enable Strobe Enable.
Figure 8-6 Set Line Mode
When selecting Line Mode as Strobe Source Selector, you can also set duration, delay and pre
delay for outputted signal.
41
