Go to Image Format Control > TDI Mode, and set TDI Mode according to actual demands.

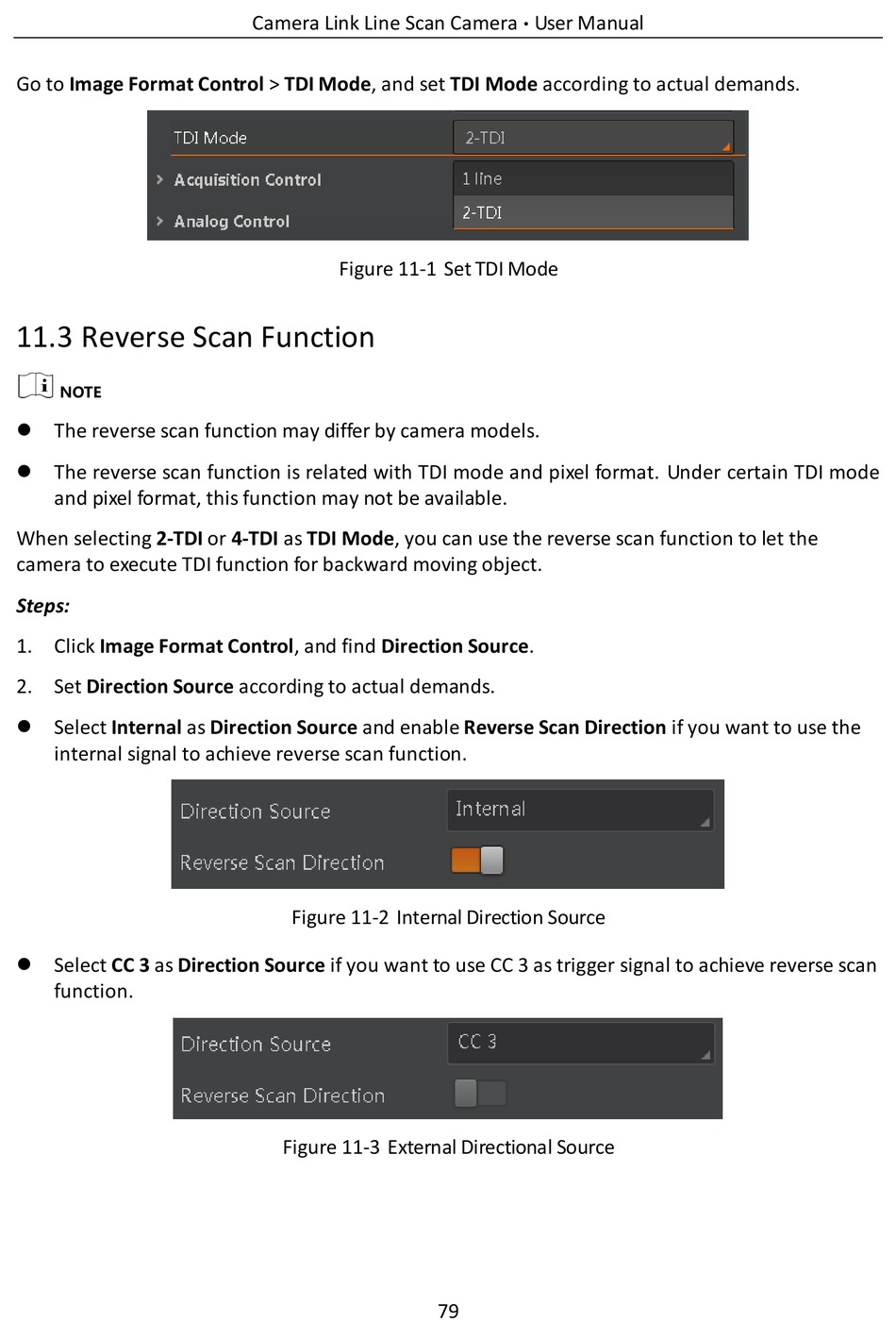

11.3 Reverse Scan Function

 The reverse scan function may differ by camera models.
 The reverse scan function is related with TDI mode and pixel format. Under certain TDI mode
and pixel format, this function may not be available.
When selecting 2-TDI or 4-TDI as TDI Mode, you can use the reverse scan function to let the
camera to execute TDI function for backward moving object.
Steps:
1. Click Image Format Control, and find Direction Source.
2. Set Direction Source according to actual demands.
 Select Internal as Direction Source and enable Reverse Scan Direction if you want to use the
internal signal to achieve reverse scan function.
 Select CC 3 as Direction Source if you want to use CC 3 as trigger signal to achieve reverse scan
function.
Camera Link Line Scan Camera
Figure 11-1 Set TDI Mode
Figure 11-2 Internal Direction Source
Figure 11-3 External Directional Source
