Camera Link Line Scan Camera User Manual
·

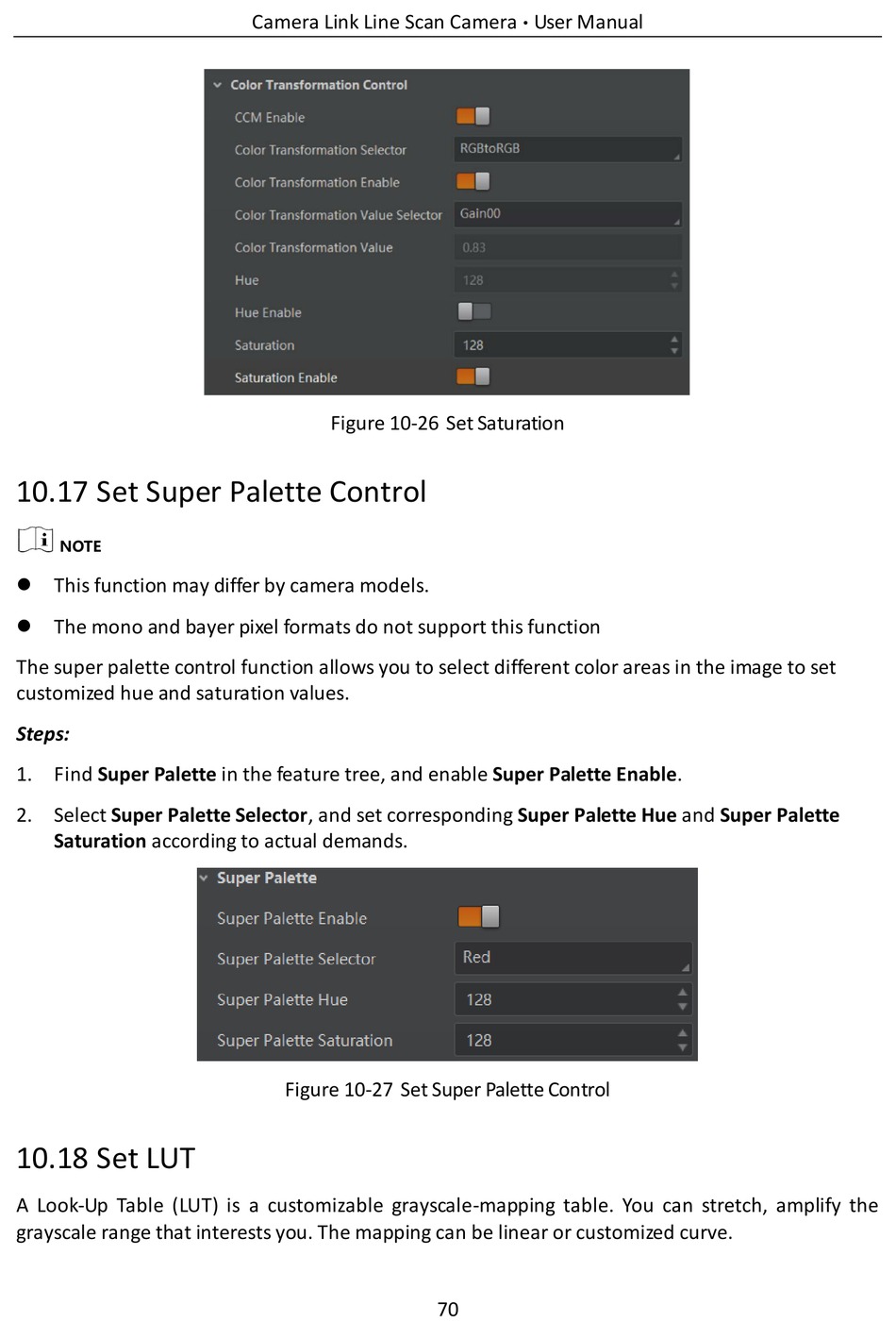

Figure 10-26 Set Saturation

10.17 Set Super Palette Control

 This function may differ by camera models.
 The mono and bayer pixel formats do not support this function
The super palette control function allows you to select different color areas in the image to set
customized hue and saturation values.
Steps:
1. Find Super Palette in the feature tree, and enable Super Palette Enable.
2. Select Super Palette Selector, and set corresponding Super Palette Hue and Super Palette
Saturation according to actual demands.
Figure 10-27 Set Super Palette Control

10.18 Set LUT

A Look-Up Table (LUT) is a customizable grayscale-mapping table. You can stretch, amplify the
grayscale range that interests you. The mapping can be linear or customized curve.
70
