9.5.4 Frame Trigger Wiring

The wiring of using 5 V differential signal to trigger is shown below.

9.5.5 Line + Frame Trigger Wiring

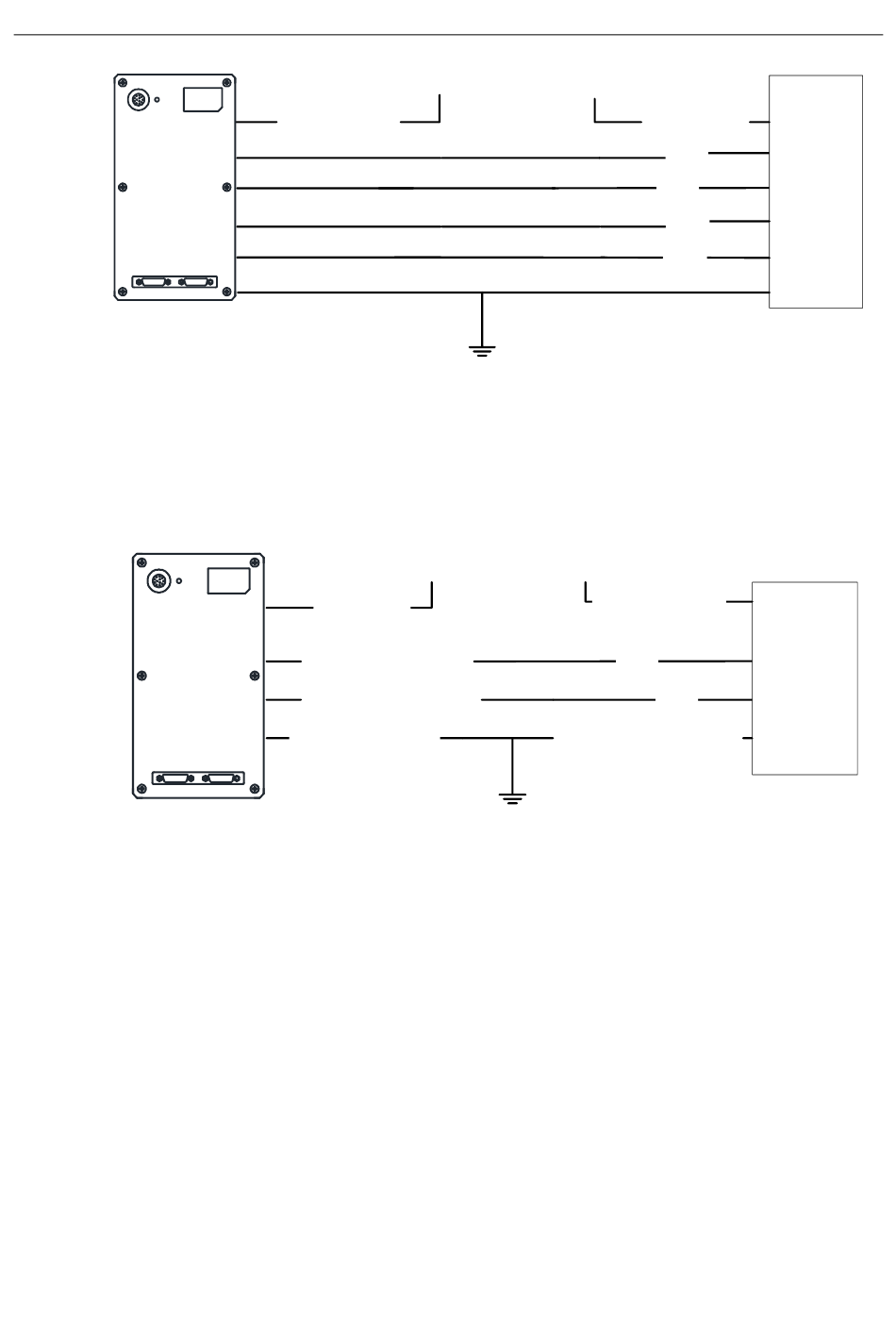

The wiring of using the frame grabber to have a frame trigger and using 5 V encoder signal to have
a line trigger is shown below.
Camera Link Line Scan Camera
Camera Power
Differential Input 0 Positive
Differential Input 0 Negative
Differential Input 1 Positive
Differential Input 1 Negative
Camera Power Ground
Figure 9-15 Line Trigger Wiring
Camera Power
Differential Input Positive
Differential Input Negative
Camera Power Ground
Figure 9-16 Frame Trigger Wiring
User Manual
·
PWR
VCC=5 V
GND
PWR VCC=5 V
Signal Source Power Ground
GND
53
Encoder Power
OUT A
OUT Ã
OUT O
OUT Õ
Encoder Power Ground
Signal Source Power
OUT A
OUT Ã
Encoder
Signal
Differential
Signal
Source
