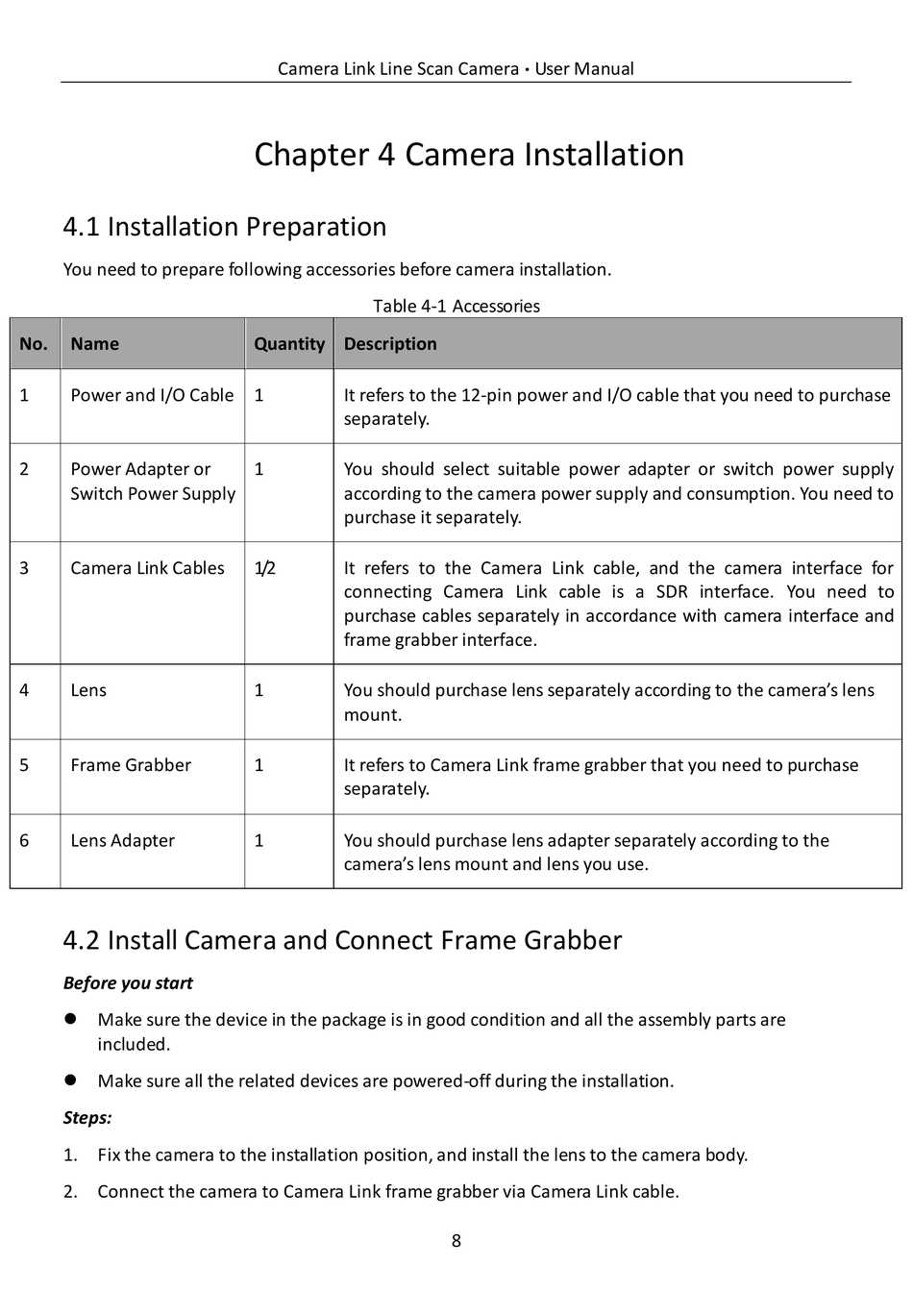

4.1 Installation Preparation

You need to prepare following accessories before camera installation.
No.
Name
1
Power and I/O Cable 1
2
Power Adapter or
Switch Power Supply
3
Camera Link Cables
4
Lens
5
Frame Grabber
6
Lens Adapter

4.2 Install Camera and Connect Frame Grabber

Before you start
 Make sure the device in the package is in good condition and all the assembly parts are
included.
 Make sure all the related devices are powered-off during the installation.
Steps:
1. Fix the camera to the installation position, and install the lens to the camera body.
2. Connect the camera to Camera Link frame grabber via Camera Link cable.
Camera Link Line Scan Camera

Chapter 4 Camera Installation

Table 4-1 Accessories
Quantity Description
It refers to the 12-pin power and I/O cable that you need to purchase
separately.
1
You should select suitable power adapter or switch power supply
according to the camera power supply and consumption. You need to
purchase it separately.
1/2
It refers to the Camera Link cable, and the camera interface for
connecting Camera Link cable is a SDR interface. You need to
purchase cables separately in accordance with camera interface and
frame grabber interface.
1
You should purchase lens separately according to the camera's lens
mount.
1
It refers to Camera Link frame grabber that you need to purchase
separately.
1
You should purchase lens adapter separately according to the
camera's lens mount and lens you use.
User Manual
·
8
