CoaXPress Area Scan Camera User Manual
·

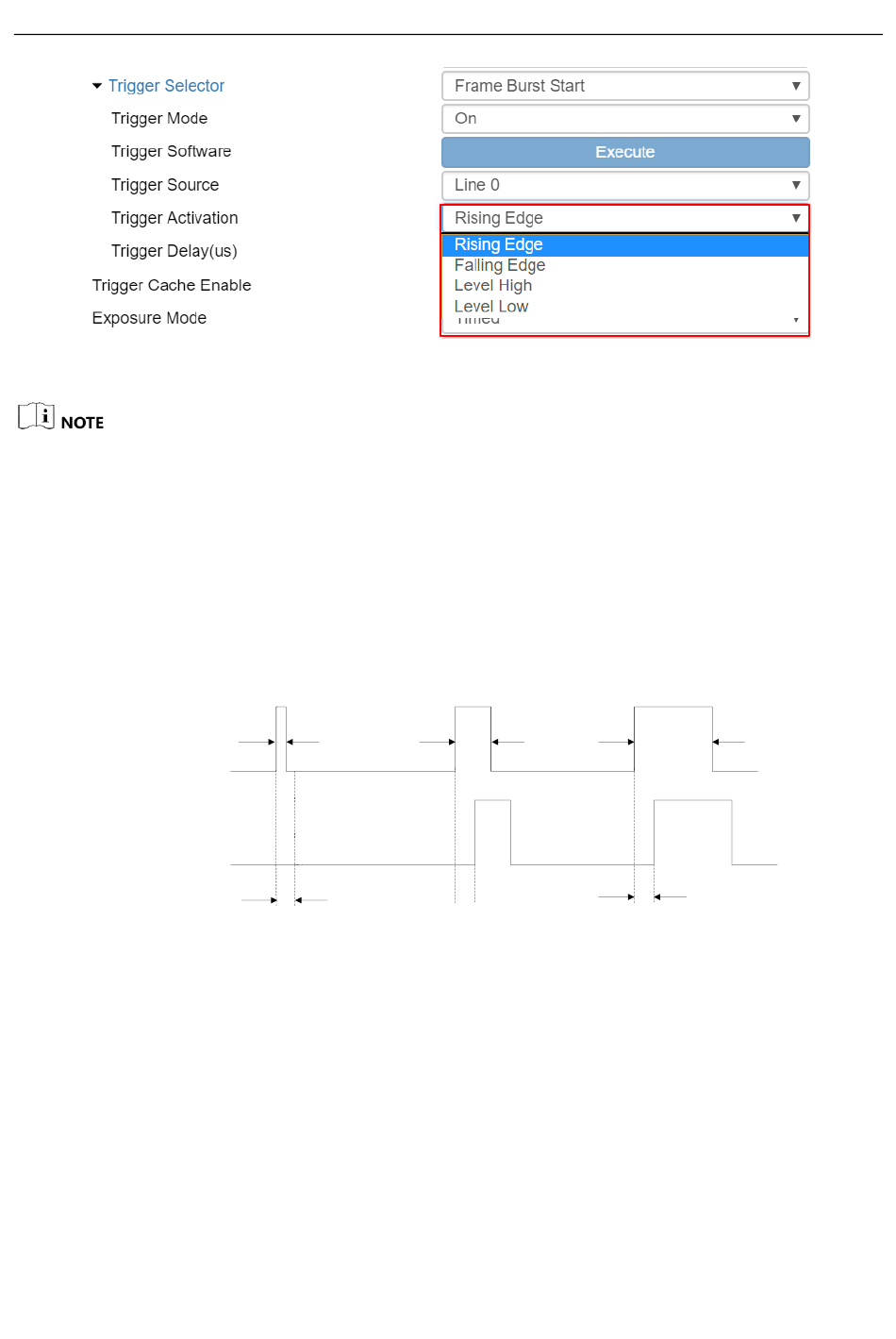

Figure 7-18 Set Trigger Activation
The figure above is the graphical user interface from Matrox CoaXPress frame grabber client
software.

7.5.5 Set Trigger Debouncer

The external trigger input signal of the camera may have signal bounce that may cause false trigger.
Thus, it is necessary to debounce the external trigger signal, and its sequence diagram is shown
below.
Trigger_in1 Trigger_in2 Trigger_in3
Before debounce
Trigger_in2
Trigger_in3
After debounce
Debounce Time
Debounce Time Debounce Time
Figure 7-19 Trigger Debouncer Sequence Diagram
Click Digital IO Control > Line Debouncer Time, and enter Line Debouncer Time. Line Debouncer
Time ranges from 0 μs to 1000000 μs.
