Click Analog Control > Balance White Auto, and select Balance White Auto according to actual
demands.
White Balance
Mode
Off
Once
Continuous
It is recommended to correct white balance when there is great difference between the camera's
color effect and actual effect. You can correct white balance as shown below.
Steps:
1. Put a white paper in the range of the camera's field of view, and make sure the paper covers
the entire field of view.
2. Set exposure and gain. It is recommended to set image brightness value between 120 and 160.
The default value of Balance White Auto is Continuous, and AWB Color Temperature Mode is
Narrow. If the color effect is not good under this settings you can set Wide as AWB Color
Temperature Mode to correct white balance.
If there is still great difference between correction effect and actual color, it is recommended to
correct white balance according to following steps.
Steps:
1. Select Off as Balance White Auto. At this time, Balance Ratio is 1024.
Camera Link Line Scan Camera
Table 10-3 White Balance Status Description
Description
You need to set the R, G, B value manually, between 1 and
4095. 1024 means ratio is 1.0
Automatic white balance once. Adjust the white balance for
a certain amount of time then stop. It implements an
algorithm that finds possible gray areas in the Bayer data.
Continuous automatic white balance. It implements an
algorithm that finds possible gray areas in the Bayer data.

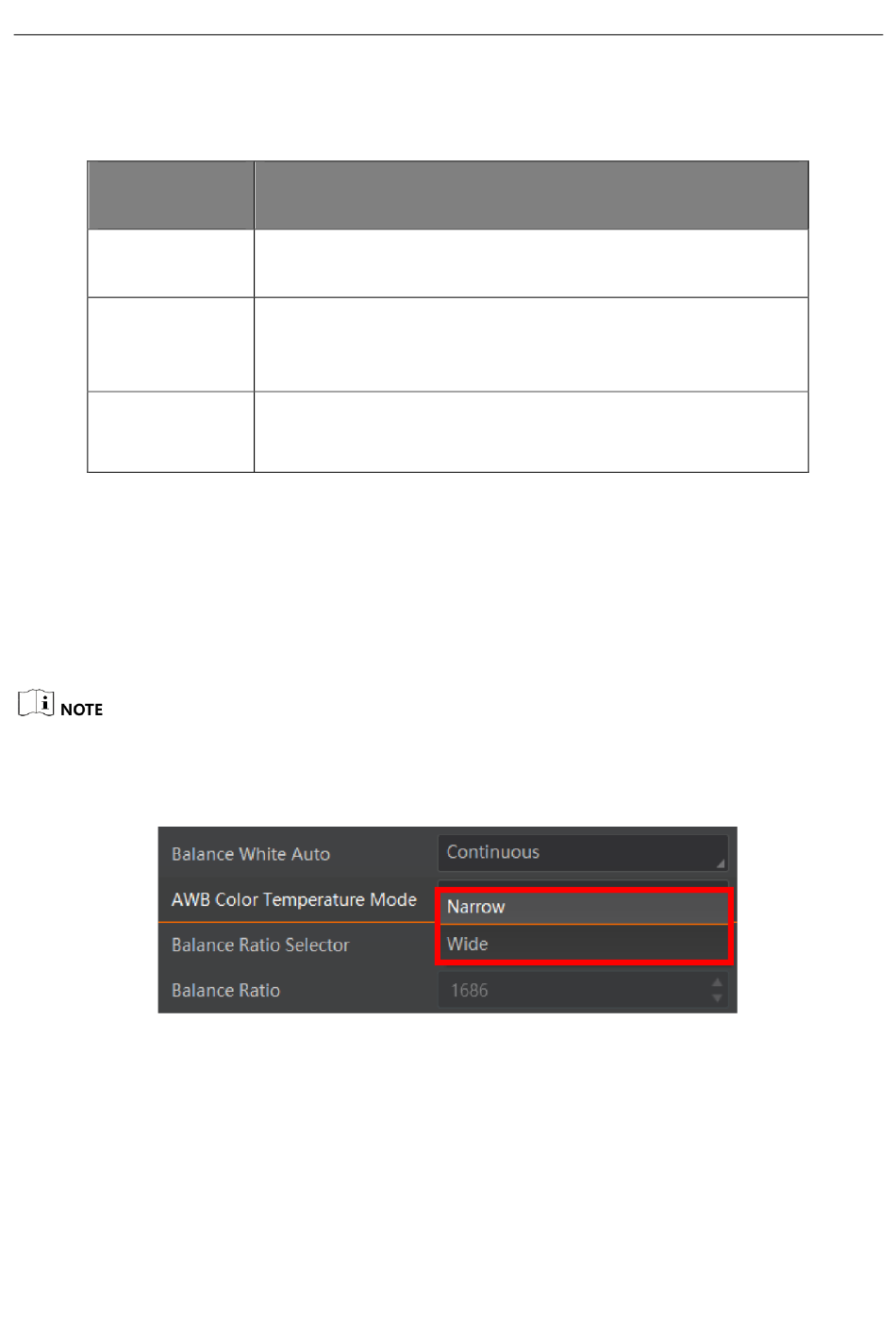

Figure 10-18 Set AWB Color Temperature Mode
