When triggering via High Level or Low Level, you can also set Start Delay Time(μs) and End Delay
Time(μs), as shown below.

5.4.4 Set Trigger Debouncer

The external trigger input signal of the device may have signal bounce that may cause false trigger.
Thus, it is necessary to debounce the external trigger signal, and its sequence diagram is shown
below.
Before
debounce
After
debounce
You can set trigger debouncer as shown below.
Steps:
1. Click Trigger and IO Control > Debouce Time(μs).
2. Enter proper value in Debouce Time(μs) according to actual demands.
X86 Open Platform

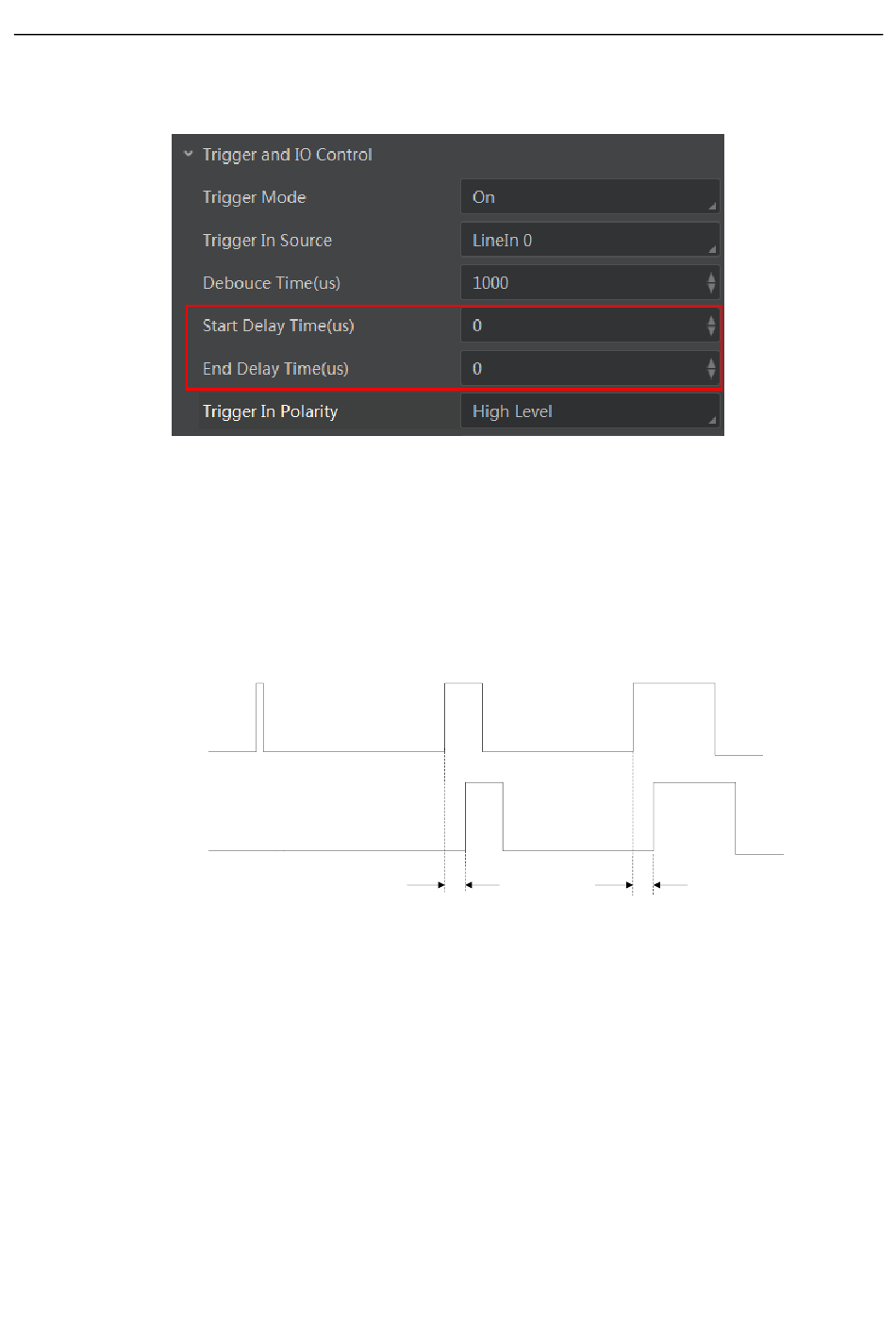

Figure 5-8 Set Start and End Delay Time
Trigger_in1
Figure 5-9 Trigger Debouncer Sequence Diagram
User Manual
·
Trigger_in2
Trigger_in2
Debouncer Time
24
Trigger_in3
Trigger_in3
Debouncer Time
