6.2 Transport Layer Control

The camera's tap geometry should match with that of the frame grabber, and inconsistent
parameters may lead to image exception.
In MVS client software, you can go to Transport Layer Control > Device Tap Geometry to check or
set the tap geometry. The CI Configuration displays the mode that the camera adopts currently.
For cameras of different models, the mode that the camera supports may differ. Pease refer to the
specification of the camera for details.
Camera Link Line Scan Camera
Description
You can set the different input and output signals.
You can view and set counter and timer related parameters.
You can view and set the device file access control related parameters.
You can set the parameters of transport layer of the device.
You can save or load the device's parameters. You can set the default
parameter when running the client software.

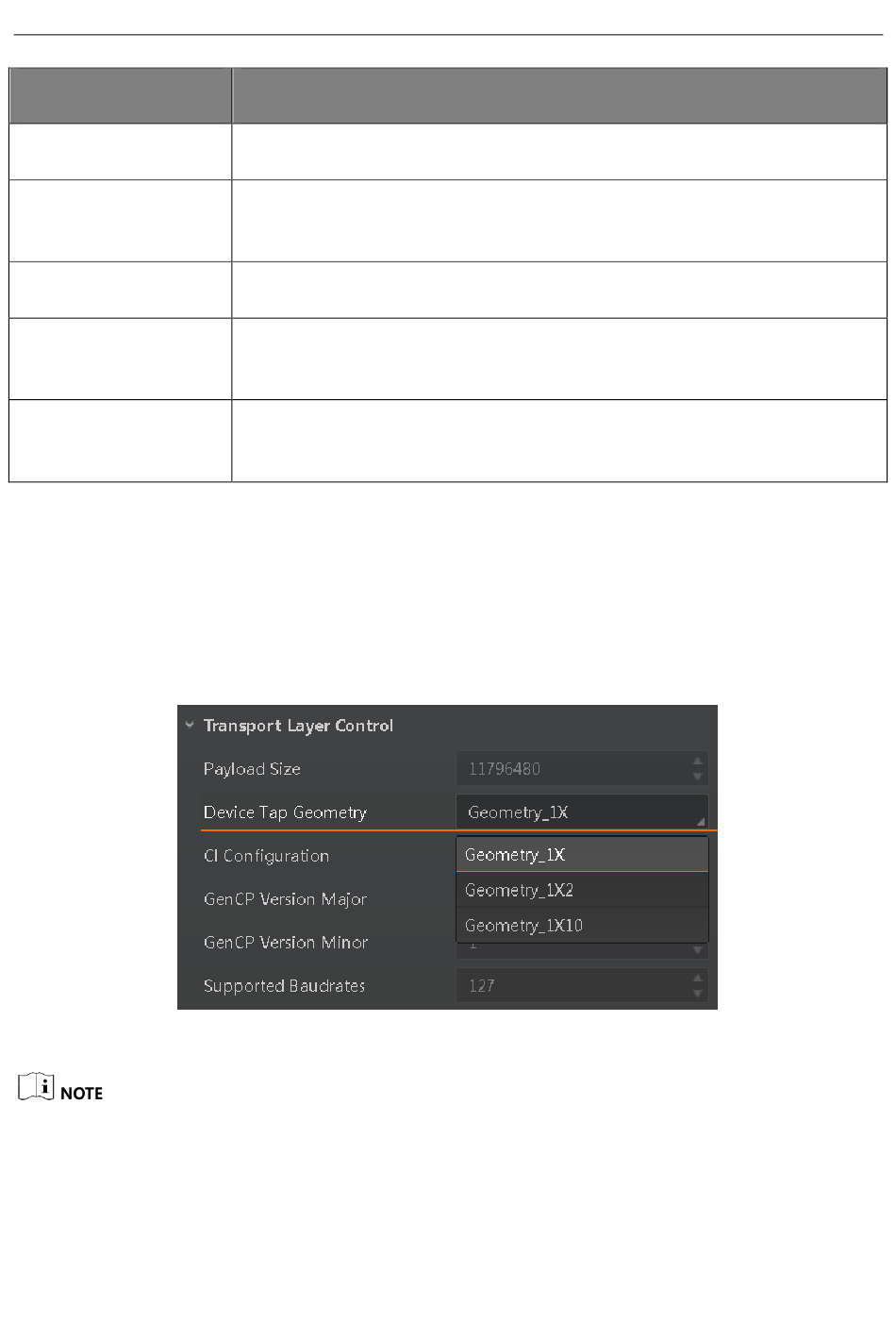

Figure 6-2 Device Tap Geometry
