 By default, the test pattern is Off.
 For different models of cameras, the test pattern may differ, and the actual product you
purchased shall prevail.
Click Image Format Control > Test Pattern, and set Test Pattern according to actual demands.
The mono camera offers 4 test patterns, including Mono Bar, Checkboard, Oblique Mono Bar and
Gradual Mono Bar. For color camera, it also supports Vertical Color Bar and Horizontal Color Bar.
The specific test patterns below may differ by camera models.
Camera Link Line Scan Camera

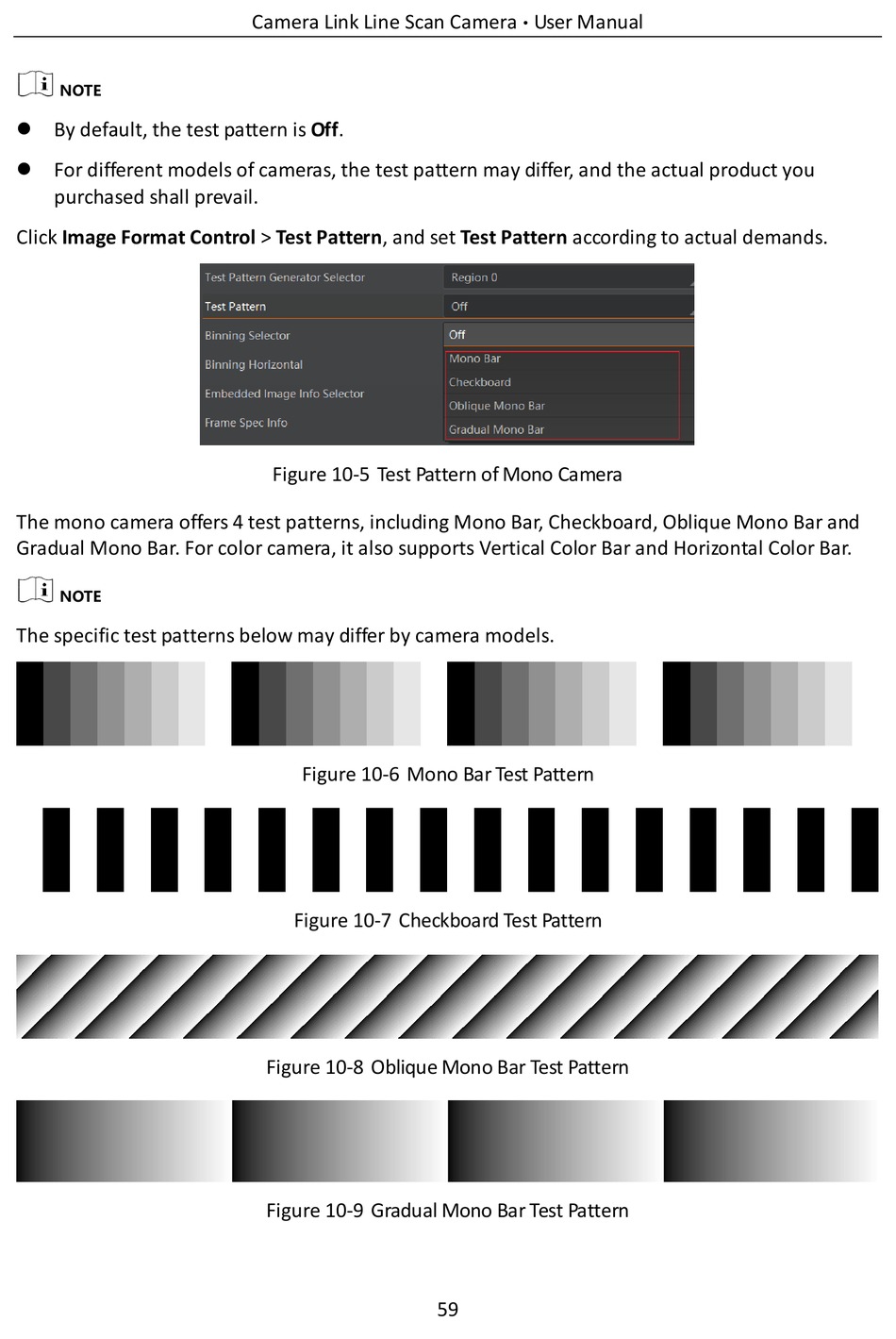

Figure 10-5 Test Pattern of Mono Camera
Figure 10-6 Mono Bar Test Pattern
Figure 10-7 Checkboard Test Pattern
Figure 10-8 Oblique Mono Bar Test Pattern
Figure 10-9 Gradual Mono Bar Test Pattern
