9.4 Output Wiring for Type I and Type III Cameras

The I/O signal of type I and type III cameras can be configured as output to trigger other devices.
Here we take the type I camera as an example for introducing the output wiring.

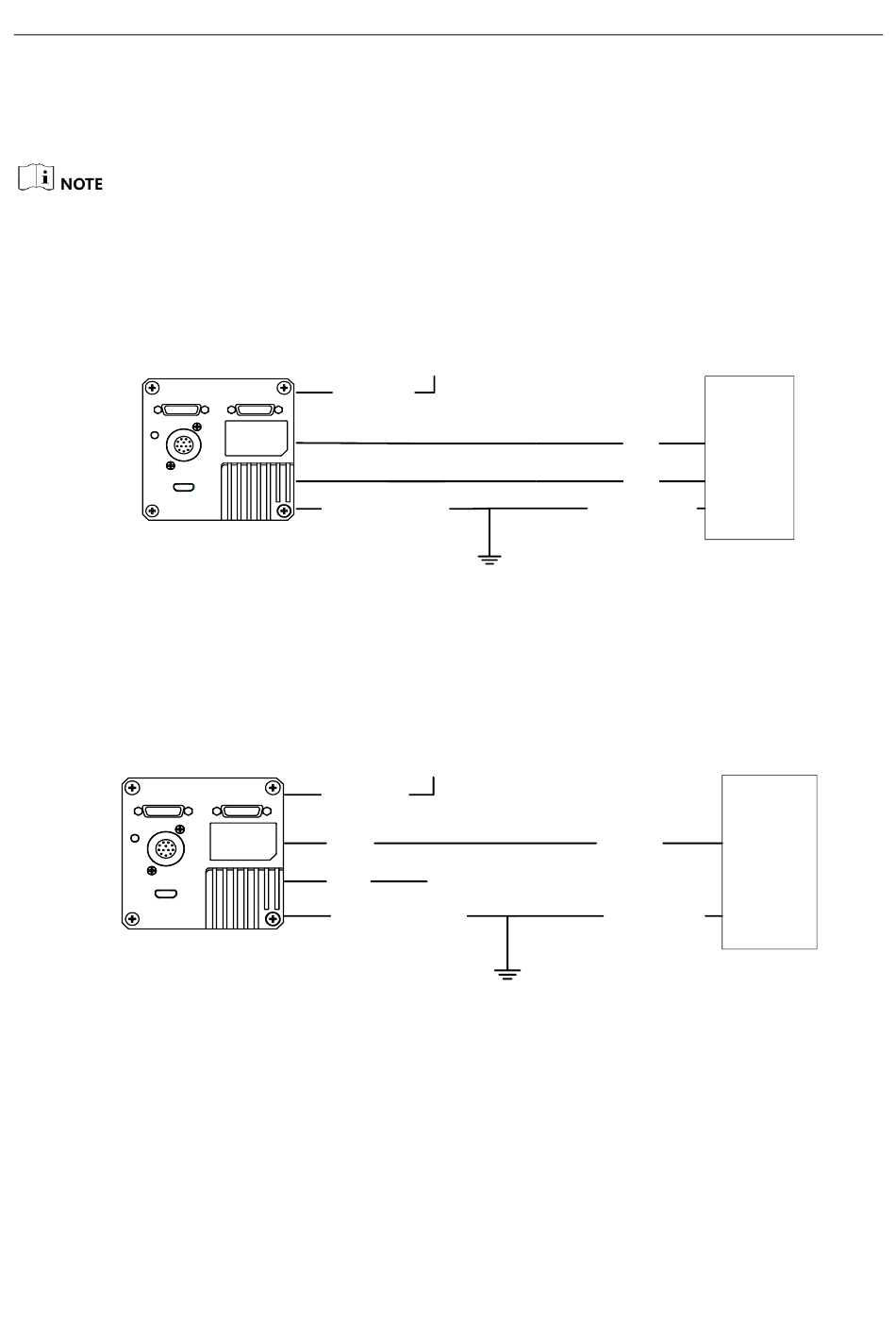

9.4.1 Differential Output Singal

If the camera's I/O signal is set as the differential output signal, and the wiring is shown below.

9.4.2 Single-Ended Output Signal

If the triggered device needs a LVTTL level trigger below 3.3 V, and the wiring is shown below.
Figure 9-8 Single-Ended Output Wiring without Pull-Up Resistor
If the triggered device needs a LVTTL level trigger above 5 V, and a pull-up resistor ranging between
1 KΩ and 10 KΩ should be added.
Camera Link Line Scan Camera
Camera Power
Line*_P
Line*_N
Camera Power Ground
Figure 9-7 Differential Output Wiring
Camera Power
Line*P
Line*N
Camera Power Ground
User Manual
·
PWR
GND
PWR
Hang
GND
49
OUT A
Triggered
Device
OUT Ã
Triggered Device
Power Ground
Signal Line
Triggered
Device
Triggered Device
Power Ground
