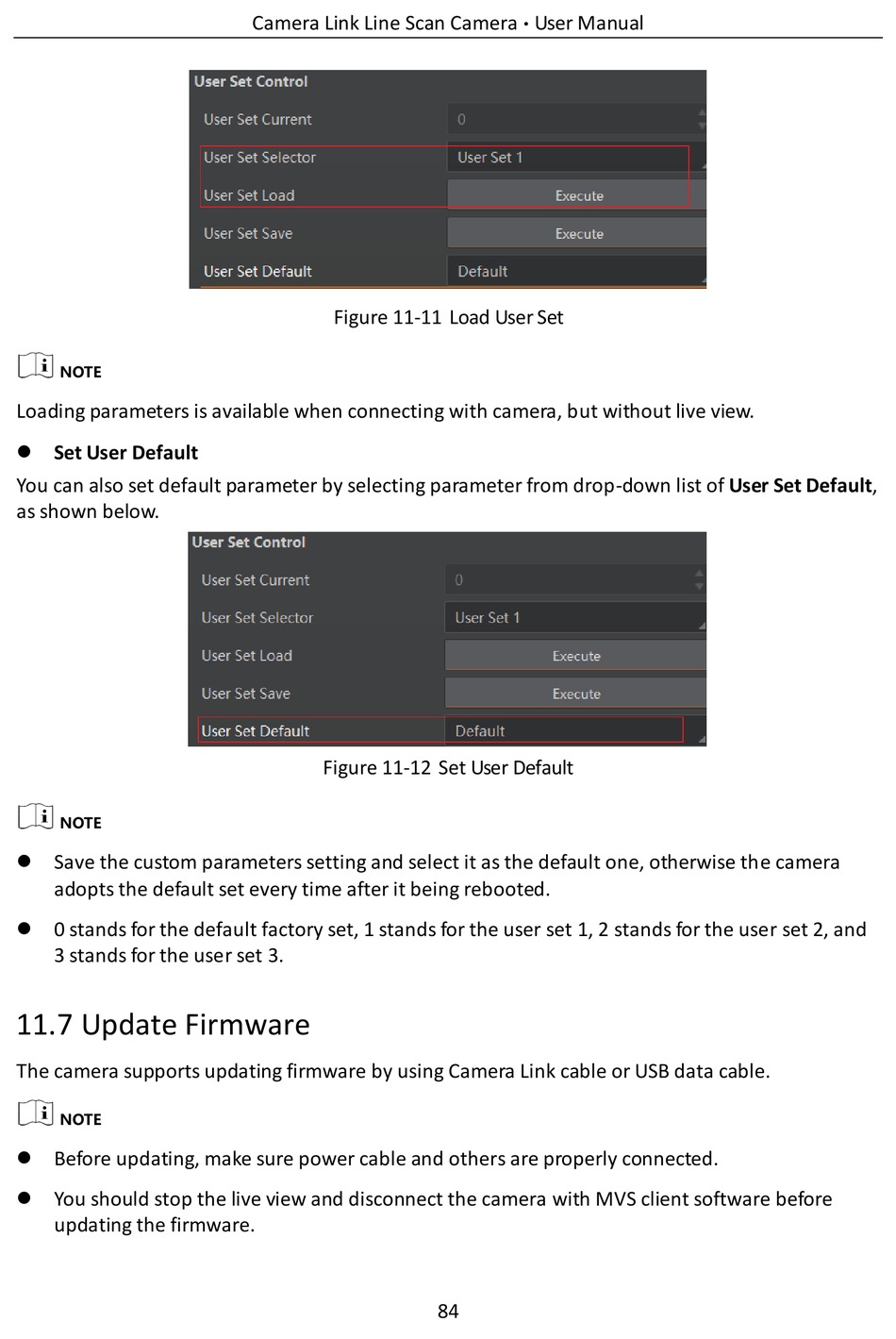

Update Firmware - HikRobot MV-CL042-91CM User Manual

Loading parameters is available when connecting with camera, but without live view.
 Set User Default
You can also set default parameter by selecting parameter from drop-down list of User Set Default,
as shown below.
 Save the custom parameters setting and select it as the default one, otherwise the camera
adopts the default set every time after it being rebooted.
 0 stands for the default factory set, 1 stands for the user set 1, 2 stands for the user set 2, and
3 stands for the user set 3.

11.7 Update Firmware

The camera supports updating firmware by using Camera Link cable or USB data cable.
 Before updating, make sure power cable and others are properly connected.
 You should stop the live view and disconnect the camera with MVS client software before
updating the firmware.
Camera Link Line Scan Camera
Figure 11-11 Load User Set
Figure 11-12 Set User Default
User Manual
·
84
