space in first line image, and then the collection information will be embedded into the second
line image.
Steps:
1. Click Image Format Control > Embedded Image Info Selector, select specific parameters as
Embedded Image Info Selector.
2. Enable Frame Spec Info.
3. Repeat steps above if you want to embed multiple image information.
12.3 Transport Layer Control
The specific transport layer control parameters may differ by camera models.
You can go to Transport Layer Control to view the camera's load size, GenCP version, etc.
USB3.0 Board Level Camera

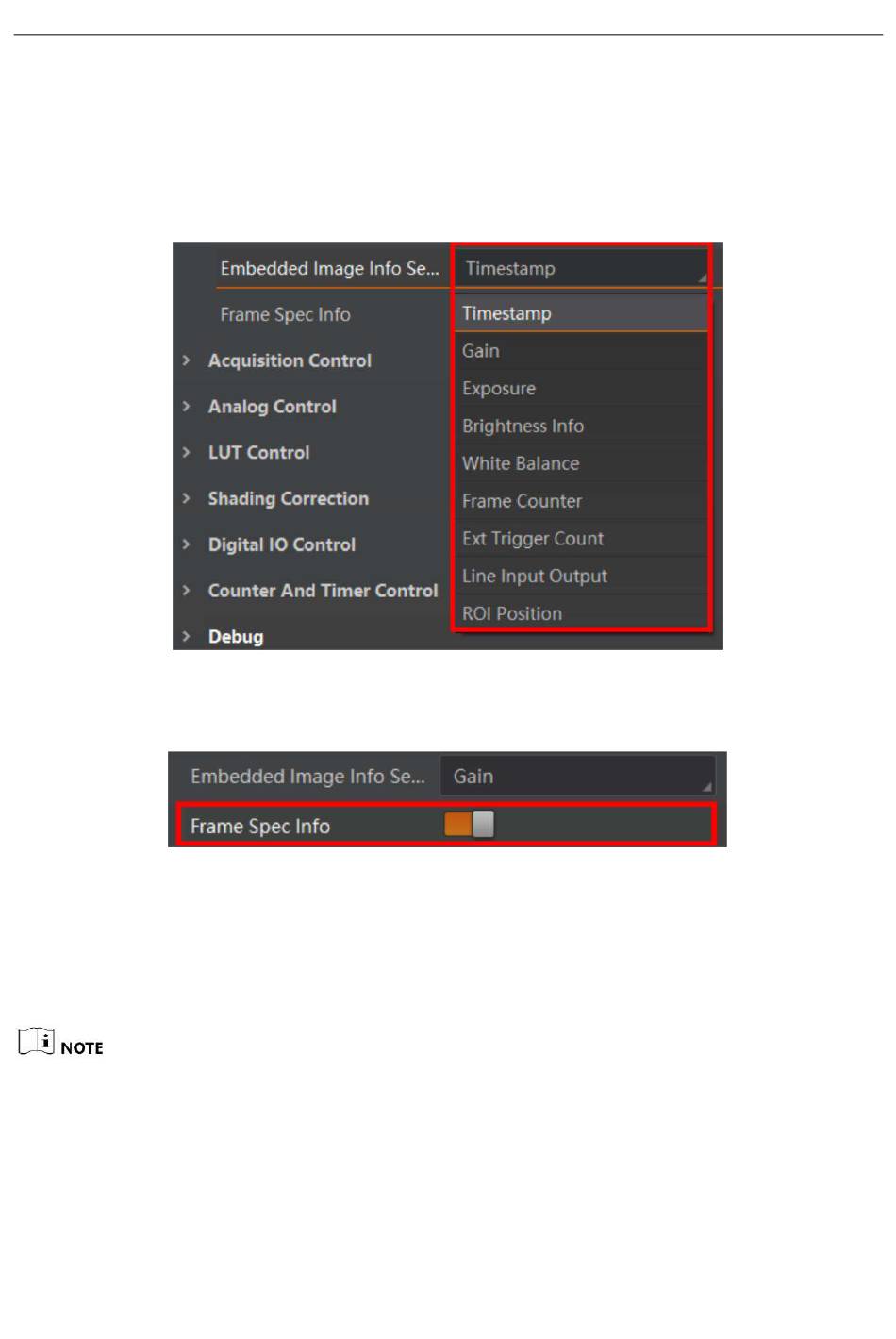

Figure 12-1 Set Embedded Information
Figure 12-2 Enable Frame Spec Info
User Manual
·
62
