Motherboard Design Guide
Requirements for Components of Third-party Suppliers
If the result of the calculation is negative, no additional chokes are necessary. Nevertheless, the use of
chokes in combination with additional filter components can be useful to reduce the emission of electro-
magnetic interference.
An additional choke must feature electromagnetic shielding, an adequate saturation current, minimal
losses, and a nominal current greater than the continuous current of the motor. The below wiring exam-
ple refers to an additional inductance of 100 μH or 10 μH. If a different additional inductance is required,
also the filter components must be adapted accordingly. Should you need further help with the filter
design, contact maxon Support at http://support.maxonmotor.com.
Example 1
Example 2

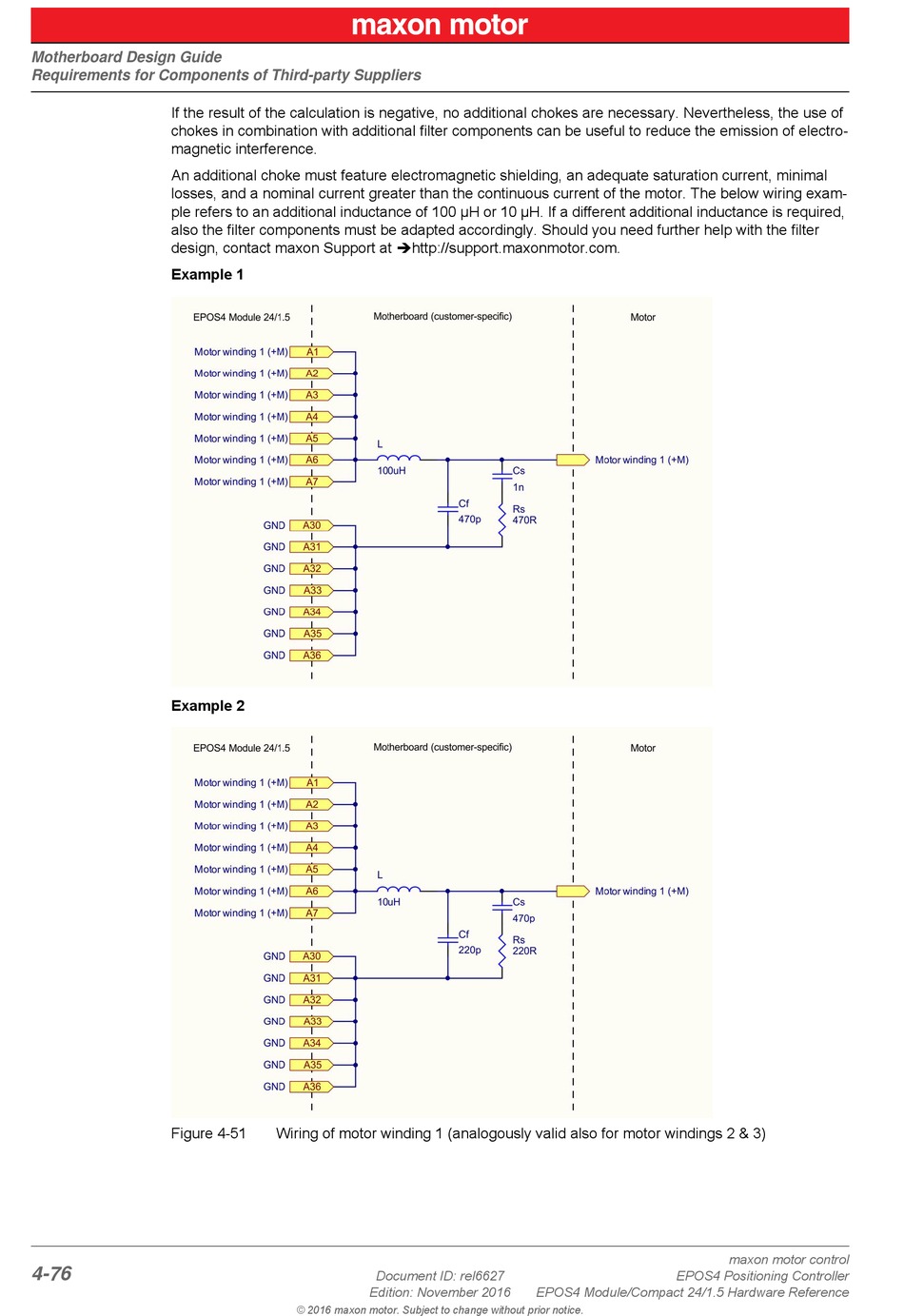

Figure 4-51
4-76
Wiring of motor winding 1 (analogously valid also for motor windings 2 & 3)
Document ID: rel6627
Edition: November 2016
© 2016 maxon motor. Subject to change without prior notice.
EPOS4 Positioning Controller
EPOS4 Module/Compact 24/1.5 Hardware Reference
maxon motor control
