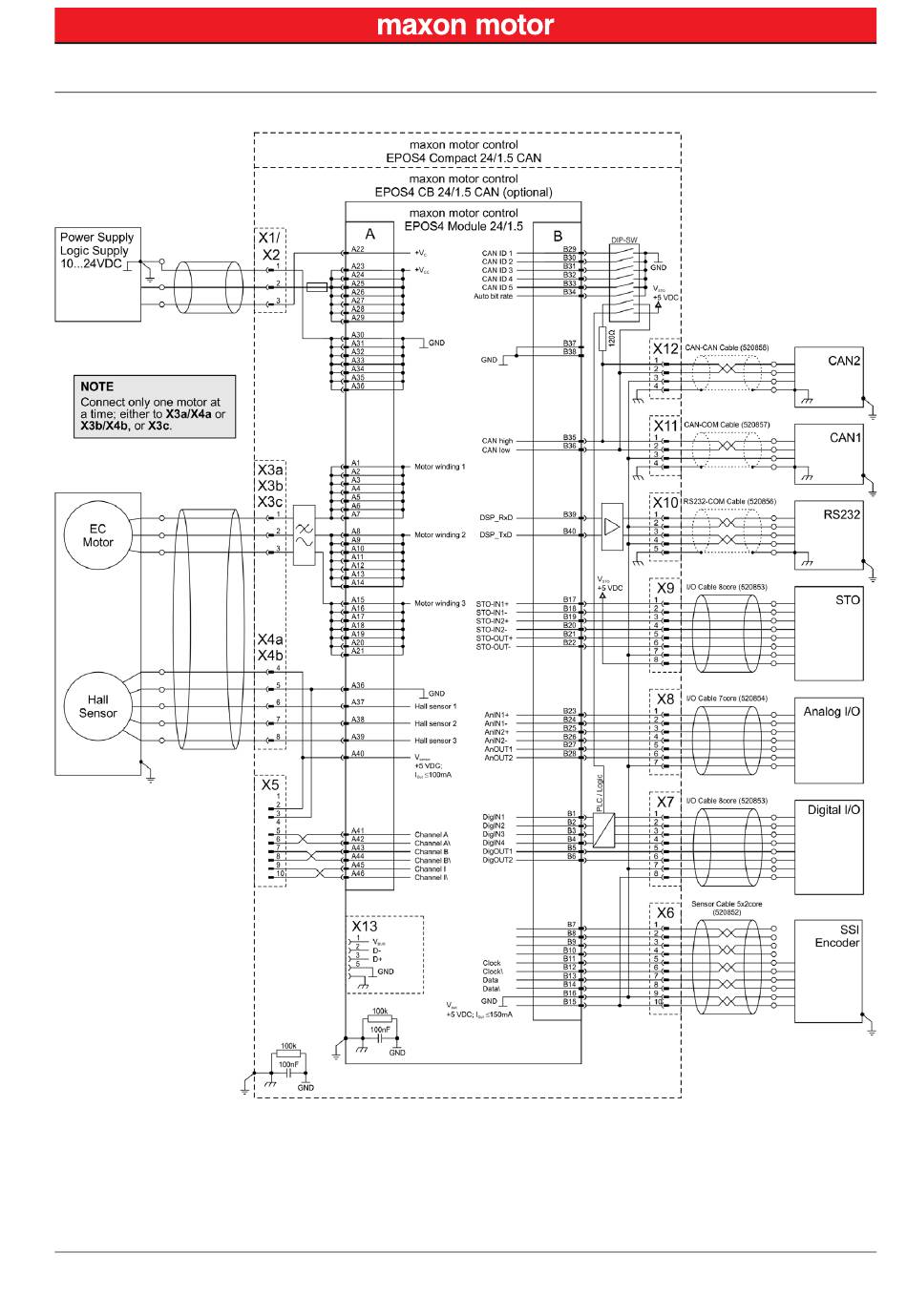

Figure 5-64
maxon motor control
EPOS4 Positioning Controller
EPOS4 Module/Compact 24/1.5 Hardware Reference
EC Motor – Hall Sensors & SSI Encoder
EC motor (Hall sensors & SSI encoder)
Document ID: rel6627
Edition: November 2016
© 2016 maxon motor. Subject to change without prior notice.
Wiring
EC Motors (BLDC, brushless)
5-91
