Dc Motor - Ssi Encoder; Figure 5-60 Dc Motor (Ssi Encoder) - maxon motor EPOS4 Module 24/1.5 Hardware Reference Manual

5.2.7
Figure 5-60
maxon motor control
EPOS4 Positioning Controller
EPOS4 Module/Compact 24/1.5 Hardware Reference
DC Motor – SSI Encoder

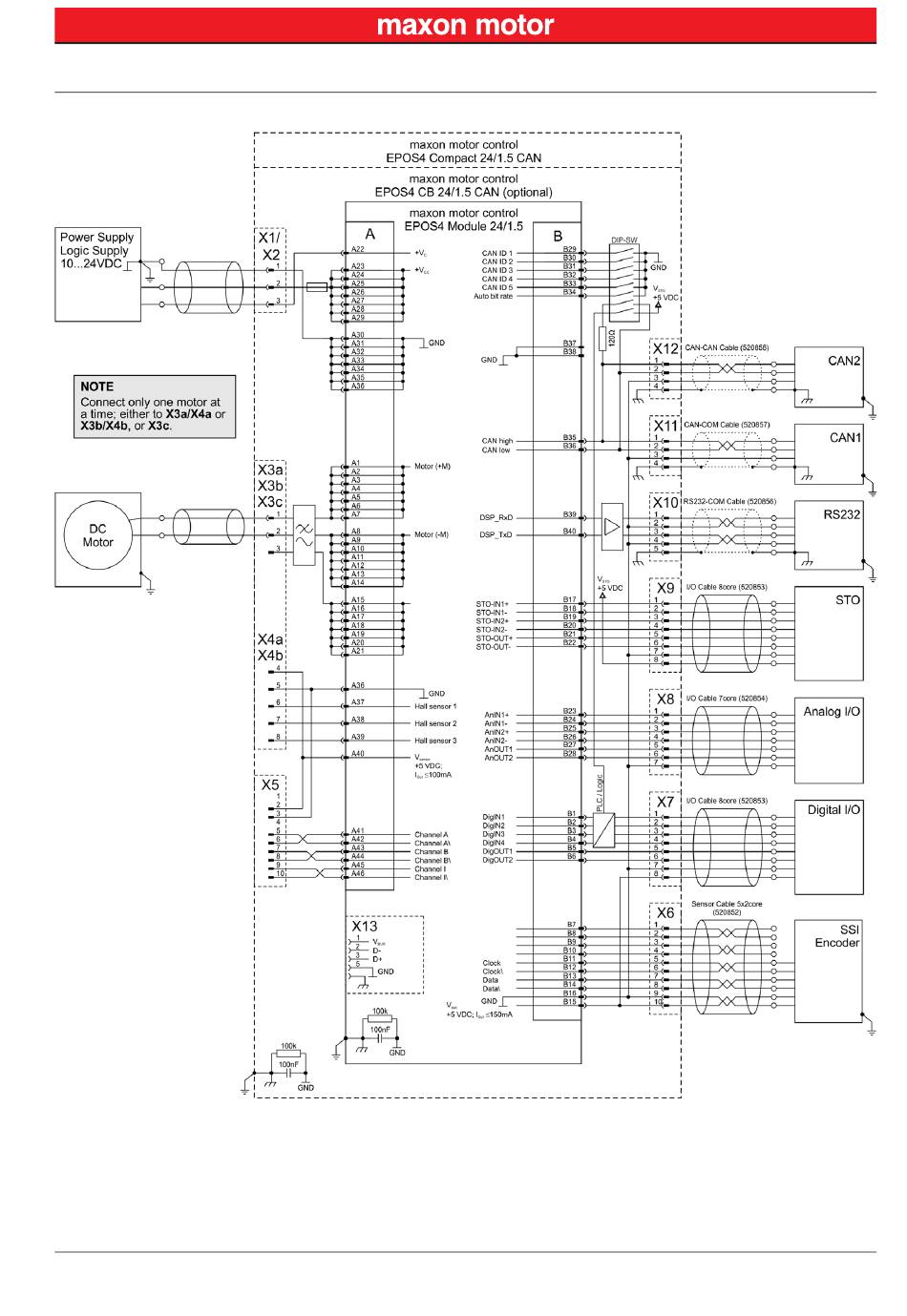

DC motor (SSI encoder)
Document ID: rel6627
Edition: November 2016
© 2016 maxon motor. Subject to change without prior notice.
Wiring
DC Motors (brushed)
5-87
