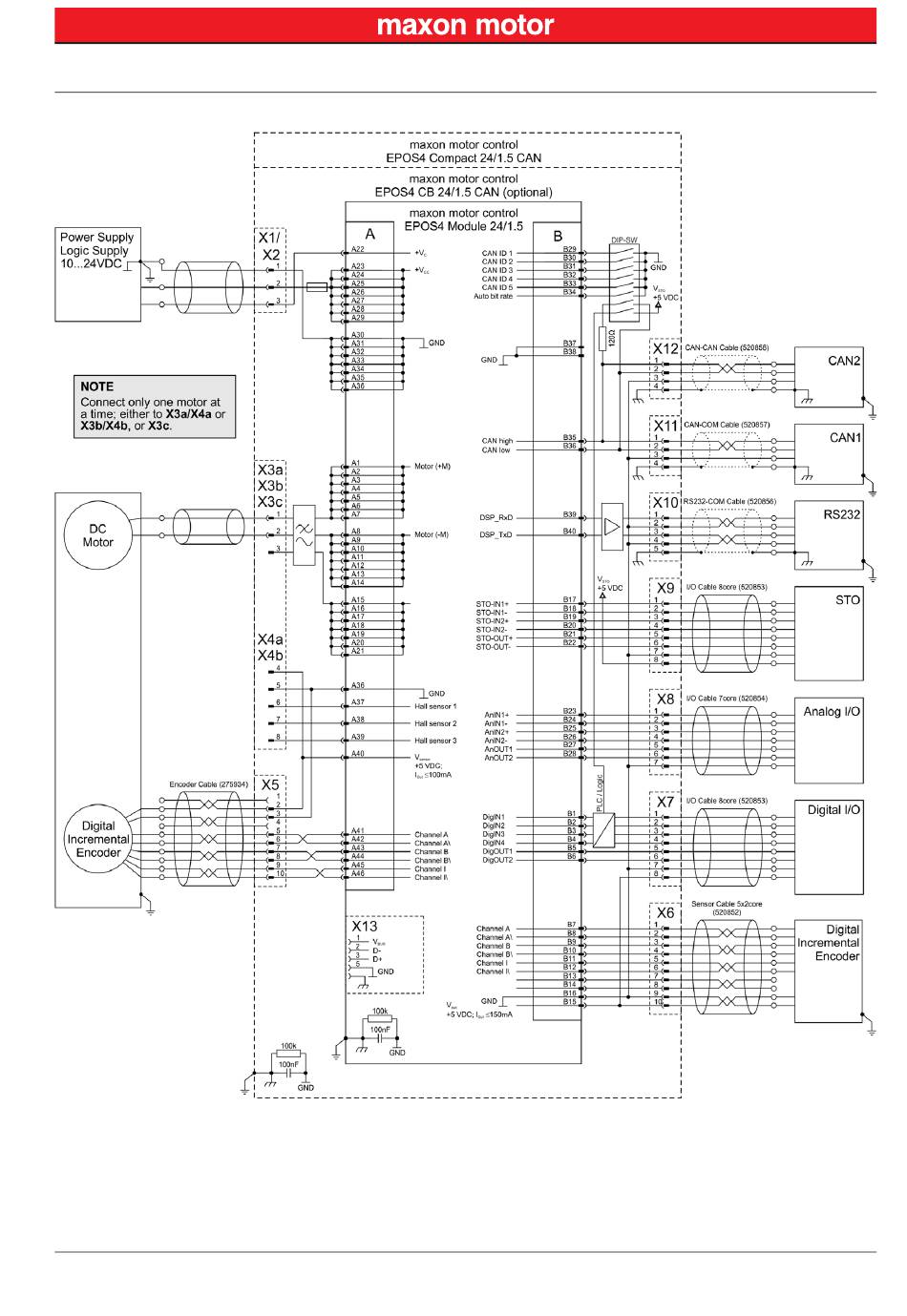

Figure 5-56
maxon motor control
EPOS4 Positioning Controller
EPOS4 Module/Compact 24/1.5 Hardware Reference
DC Motor – Digital & Digital Incremental Encoder*
DC motor (digital & digital incremental encoder)
Document ID: rel6627
Edition: November 2016
© 2016 maxon motor. Subject to change without prior notice.
Wiring
DC Motors (brushed)
5-83
