5.3.8

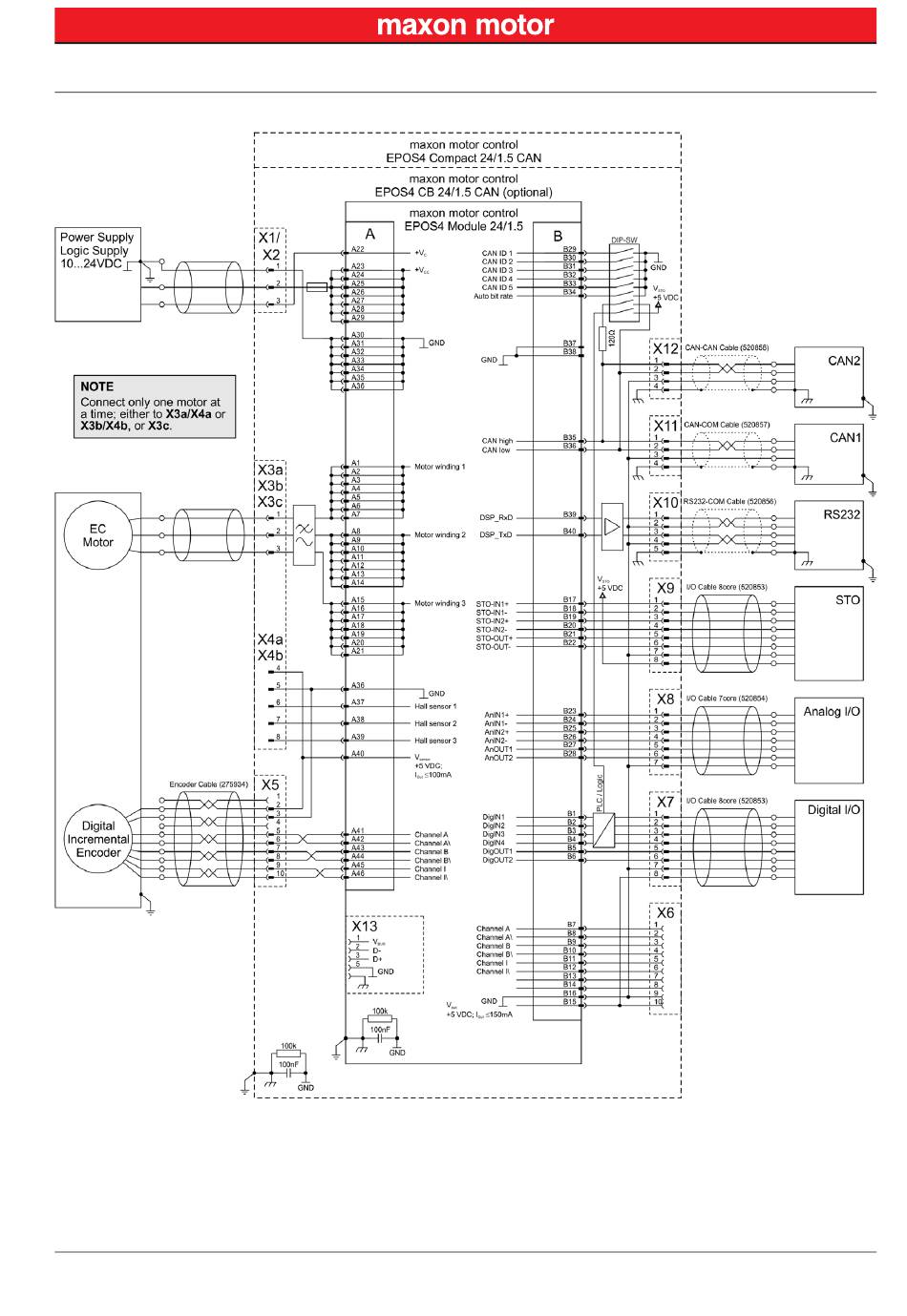

Figure 5-68
maxon motor control
EPOS4 Positioning Controller
EPOS4 Module/Compact 24/1.5 Hardware Reference
EC Motor – Digital Incremental Encoder*
EC motor (digital incremental encoder)
Document ID: rel6627
Edition: November 2016
© 2016 maxon motor. Subject to change without prior notice.
Wiring
EC Motors (BLDC, brushless)
5-95
