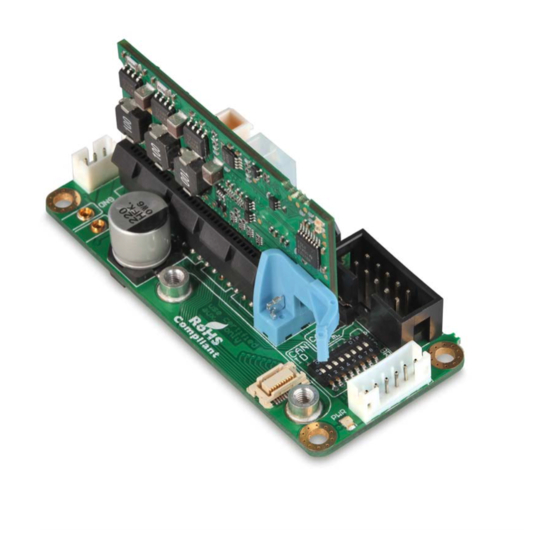

36/2 motherboard
Hide thumbs Also See for EPOS2:
Table of Contents

Advertisement

Quick Links

Download this manual
maxon motor control

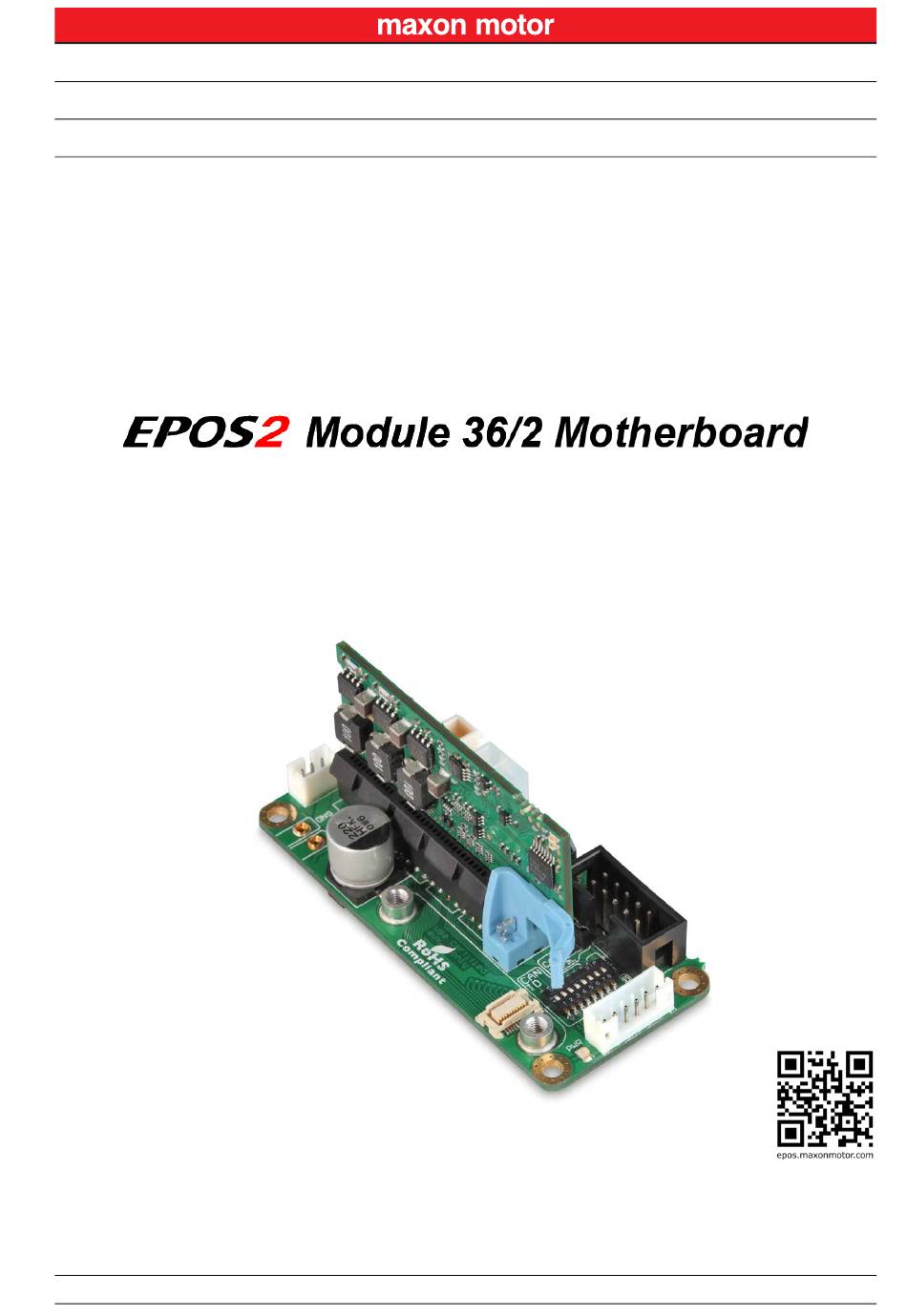

EPOS2 Positioning Controller
Hardware Reference
Edition November 2018
Hardware Reference
Document ID: rel8458
maxon motor ag Brünigstrasse 220 P.O.Box 263 CH-6072 Sachseln Phone +41 41 666 15 00 Fax +41 41 666 16 50 www.maxonmotor.com
