About
About the Devices
1.2

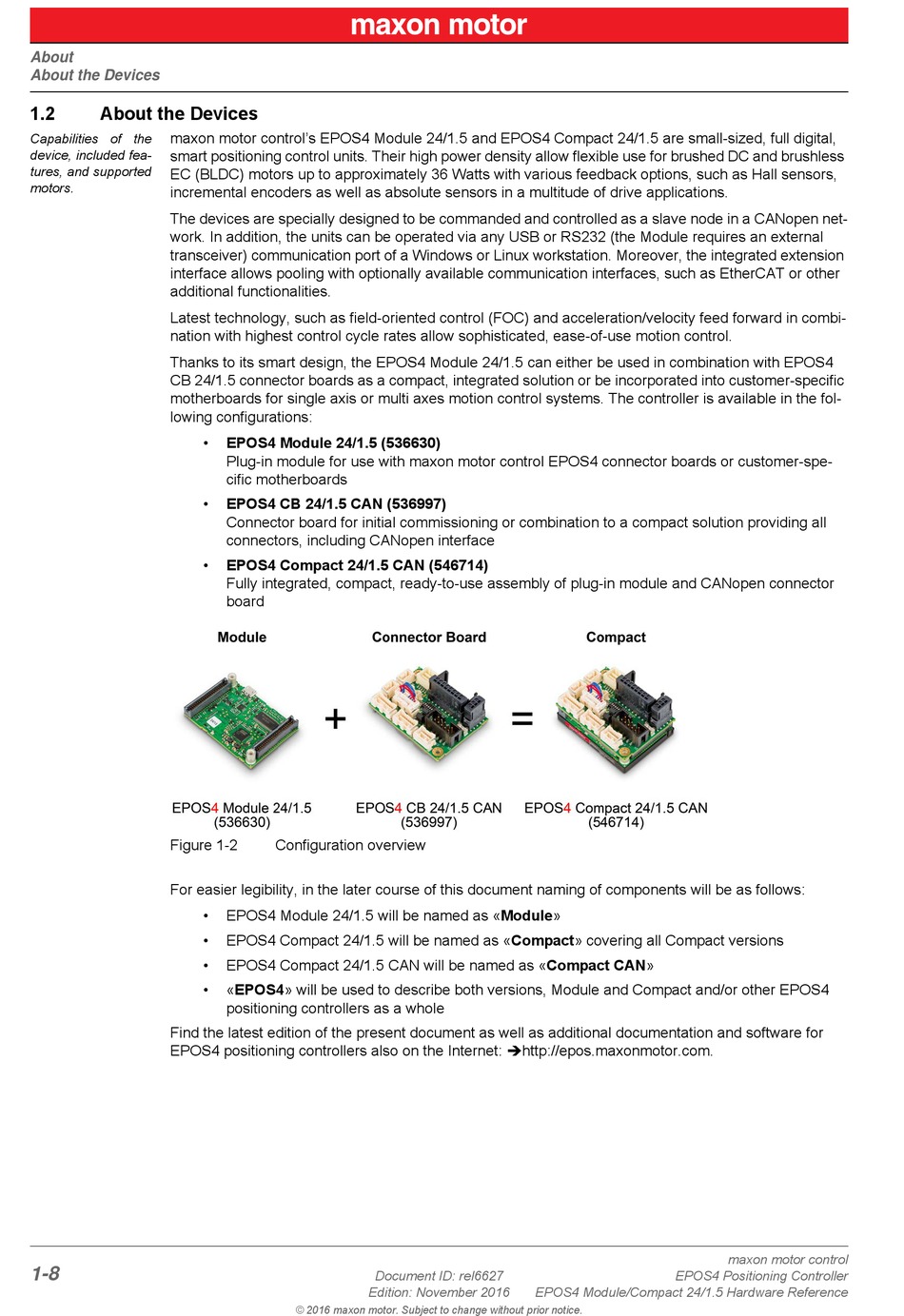

About the Devices
maxon motor control's EPOS4 Module 24/1.5 and EPOS4 Compact 24/1.5 are small-sized, full digital,
Capabilities of the
device, included fea-
smart positioning control units. Their high power density allow flexible use for brushed DC and brushless
tures, and supported
EC (BLDC) motors up to approximately 36 Watts with various feedback options, such as Hall sensors,
motors.
incremental encoders as well as absolute sensors in a multitude of drive applications.
The devices are specially designed to be commanded and controlled as a slave node in a CANopen net-
work. In addition, the units can be operated via any USB or RS232 (the Module requires an external
transceiver) communication port of a Windows or Linux workstation. Moreover, the integrated extension
interface allows pooling with optionally available communication interfaces, such as EtherCAT or other
additional functionalities.
Latest technology, such as field-oriented control (FOC) and acceleration/velocity feed forward in combi-
nation with highest control cycle rates allow sophisticated, ease-of-use motion control.
Thanks to its smart design, the EPOS4 Module 24/1.5 can either be used in combination with EPOS4
CB 24/1.5 connector boards as a compact, integrated solution or be incorporated into customer-specific
motherboards for single axis or multi axes motion control systems. The controller is available in the fol-
lowing configurations:
Figure 1-2
For easier legibility, in the later course of this document naming of components will be as follows:
Find the latest edition of the present document as well as additional documentation and software for
EPOS4 positioning controllers also on the Internet: http://epos.maxonmotor.com.
1-8
•
EPOS4 Module 24/1.5 (536630)
Plug-in module for use with maxon motor control EPOS4 connector boards or customer-spe-
cific motherboards
•
EPOS4 CB 24/1.5 CAN (536997)
Connector board for initial commissioning or combination to a compact solution providing all
connectors, including CANopen interface
•
EPOS4 Compact 24/1.5 CAN (546714)
Fully integrated, compact, ready-to-use assembly of plug-in module and CANopen connector
board
Configuration overview
•
EPOS4 Module 24/1.5 will be named as «Module»
•
EPOS4 Compact 24/1.5 will be named as «Compact» covering all Compact versions
•
EPOS4 Compact 24/1.5 CAN will be named as «Compact CAN»
•
«EPOS4» will be used to describe both versions, Module and Compact and/or other EPOS4
positioning controllers as a whole
Edition: November 2016
© 2016 maxon motor. Subject to change without prior notice.
Document ID: rel6627
EPOS4 Module/Compact 24/1.5 Hardware Reference
maxon motor control
EPOS4 Positioning Controller
