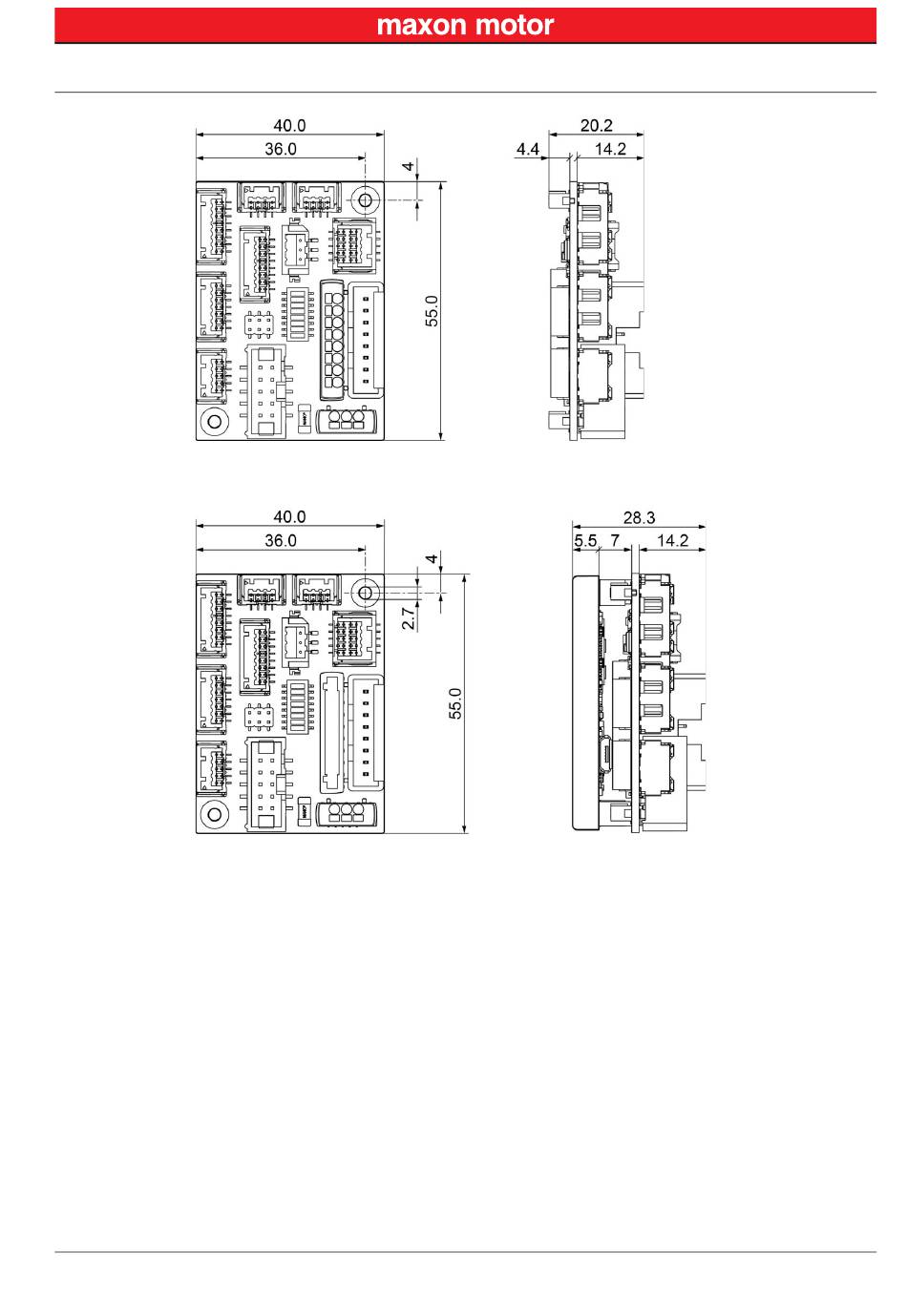

Figure 2-6 Epos4 Cb 24/1.5 Can - Dimensional Drawing [Mm]; Figure 2-7 Epos4 Compact 24/1.5 Can - Dimensional Drawing [Mm] - maxon motor EPOS4 Module 24/1.5 Hardware Reference Manual

Figure 2-6
Figure 2-7
maxon motor control
EPOS4 Positioning Controller
EPOS4 Module/Compact 24/1.5 Hardware Reference
EPOS4 CB 24/1.5 CAN – Dimensional drawing [mm]
EPOS4 Compact 24/1.5 CAN – Dimensional drawing [mm]
Document ID: rel6627
Edition: November 2016
© 2016 maxon motor. Subject to change without prior notice.
Specifications
Dimensional Drawings
2-15
