Figure 3-36 Hsdigout1 Output Circuit - maxon motor EPOS4 Module 24/1.5 Hardware Reference Manual

Setup
Connection Specifications
Min. differential output voltage
Max. output current
Line transceiver (internal)
Max. output frequency
Figure 3-36
3-56
High-speed digital output 1

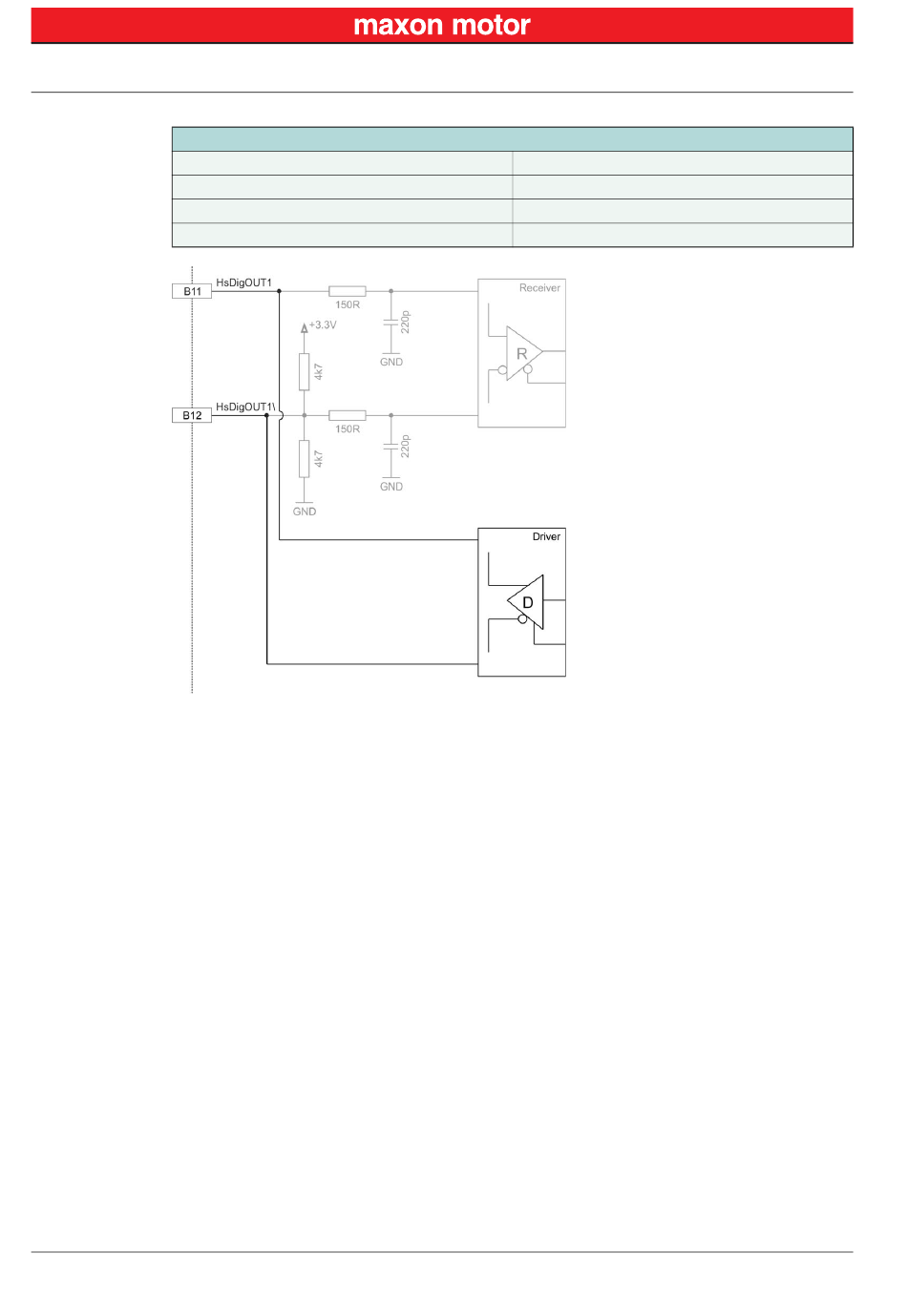

HsDigOUT1 output circuit
Document ID: rel6627
Edition: November 2016
© 2016 maxon motor. Subject to change without prior notice.
±1.8 V @ external load R=54 Ω
40 mA
EIA RS422 standard
6.25 MHz
EPOS4 Positioning Controller
EPOS4 Module/Compact 24/1.5 Hardware Reference
maxon motor control
