Dc Motors (Brushed); Dc Motor Without Sensor; Figure 5-54 Dc Motor (No Sensor) - maxon motor EPOS4 Module 24/1.5 Hardware Reference Manual

5.2

DC Motors (brushed)

5.2.1
Figure 5-54
maxon motor control
EPOS4 Positioning Controller
EPOS4 Module/Compact 24/1.5 Hardware Reference

DC Motor without Sensor

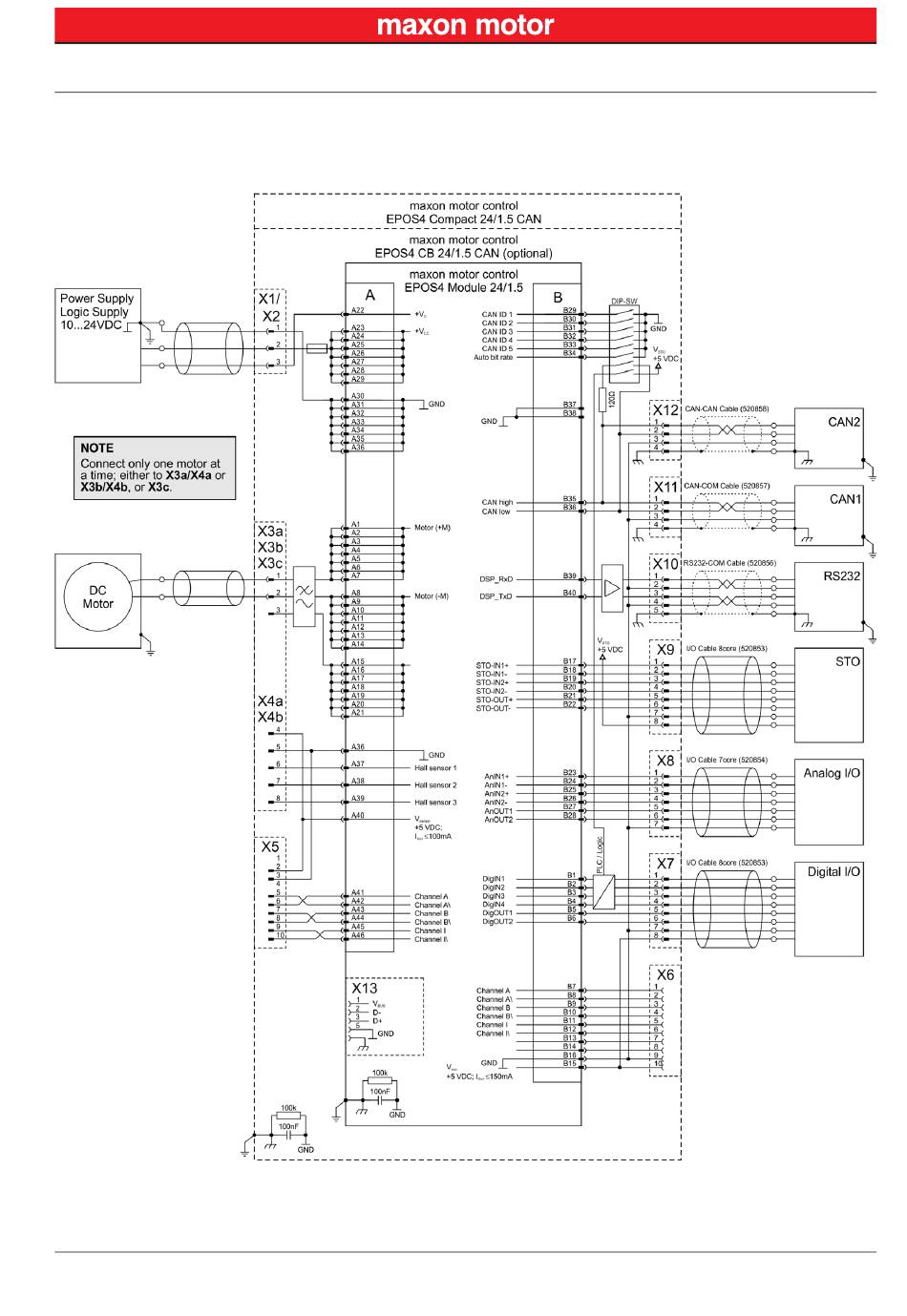

DC motor (no sensor)
