CHASSIS / BODY ELECTRICAL
INTERNATIONAL MODELS

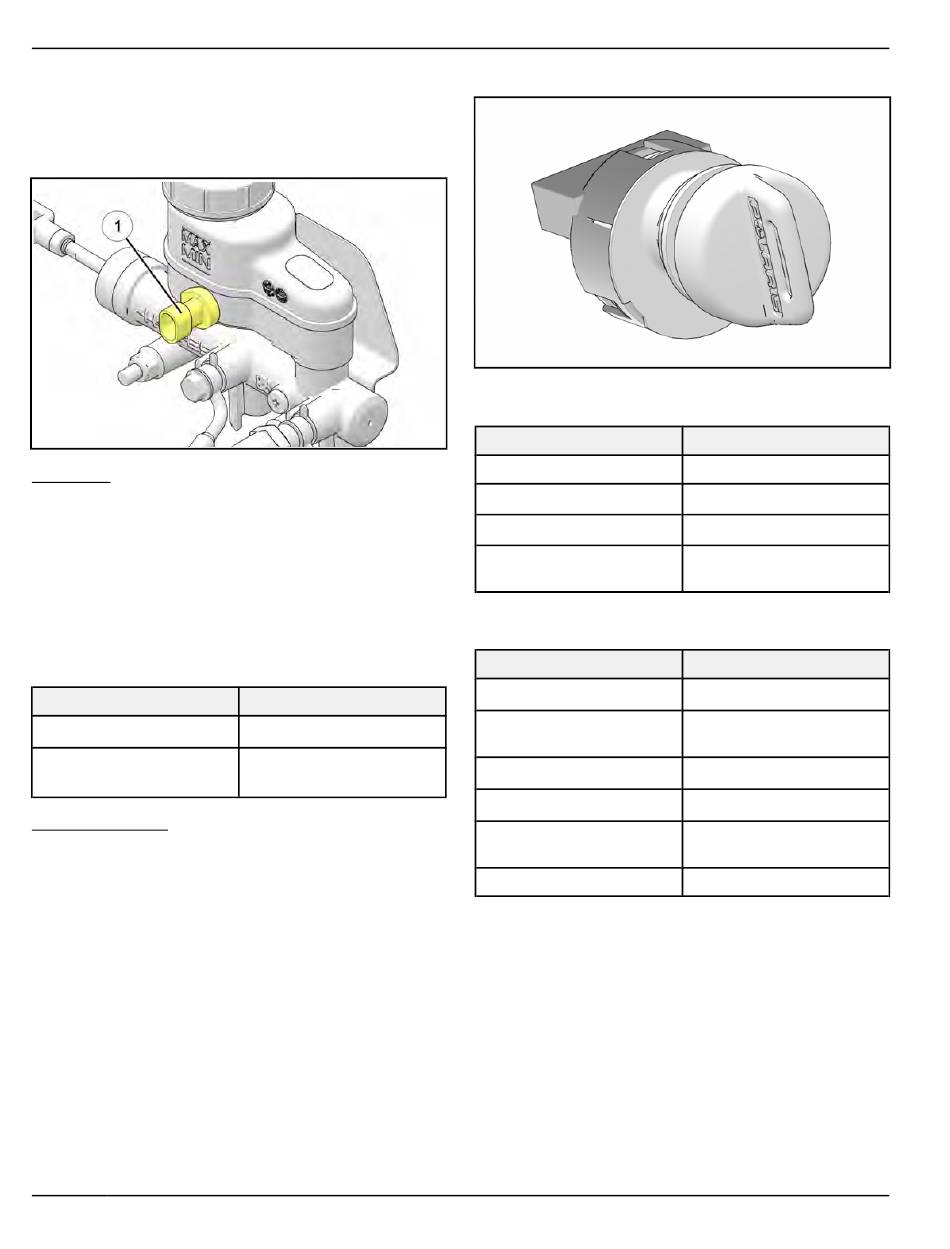

BRAKE FLUID LEVEL SWITCH
The brake fluid level switch
cylinder just below the MAX/MIN marks.
TESTING
1. Disconnect wire harness from fluid level switch.
2. Connect an ohmmeter across switch pins and check
for continuity. There should be continuity between
pins if the fluid level is at or above the MINIMUM level
mark.
3. Leave the meter leads connected to switch pins.
Using a suction gun, remove brake fluid from
reservoir chamber until it is below the MINIMUM level
mark. The meter should read OPEN CIRCUIT.
FLUID LEVEL
Proper Brake Fluid Level
Low Brake Fluid Level
REPLACEMENT
The brake fluid level switch is non-serviceable. If the
switch fails testing, replacement of the master cylinder is
required. Refer to the Brake System chapter for master
cylinder removal and installation procedures.
12.70
q
is located on the master
CONTINUITY BETWEEN
Continuity between pins
No continuity between
pins
IGNITION / KEY SWITCH
PIN CONTINUITY
SWITCH POSITION
OFF
ON LIGHTS
ON
START
SWITCH FUNCTION
PIN
A
B
C
D
E
F
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
CONTINUITY BETWEEN
E and F
A, E and F; C and D
C and D; E and F
A and B; C and D; E and
F
FUNCTION
Key Fuse Out
Key Switch, Start Relay
Coil In
System B+
Key Switch B+, Key Out
Key Out, Headlight Relay
Enable
—
© Copyright Polaris Inc.
