Propshaft Installation - 2 Seat - Polaris General 2020 Service Manual

FINAL DRIVE
y

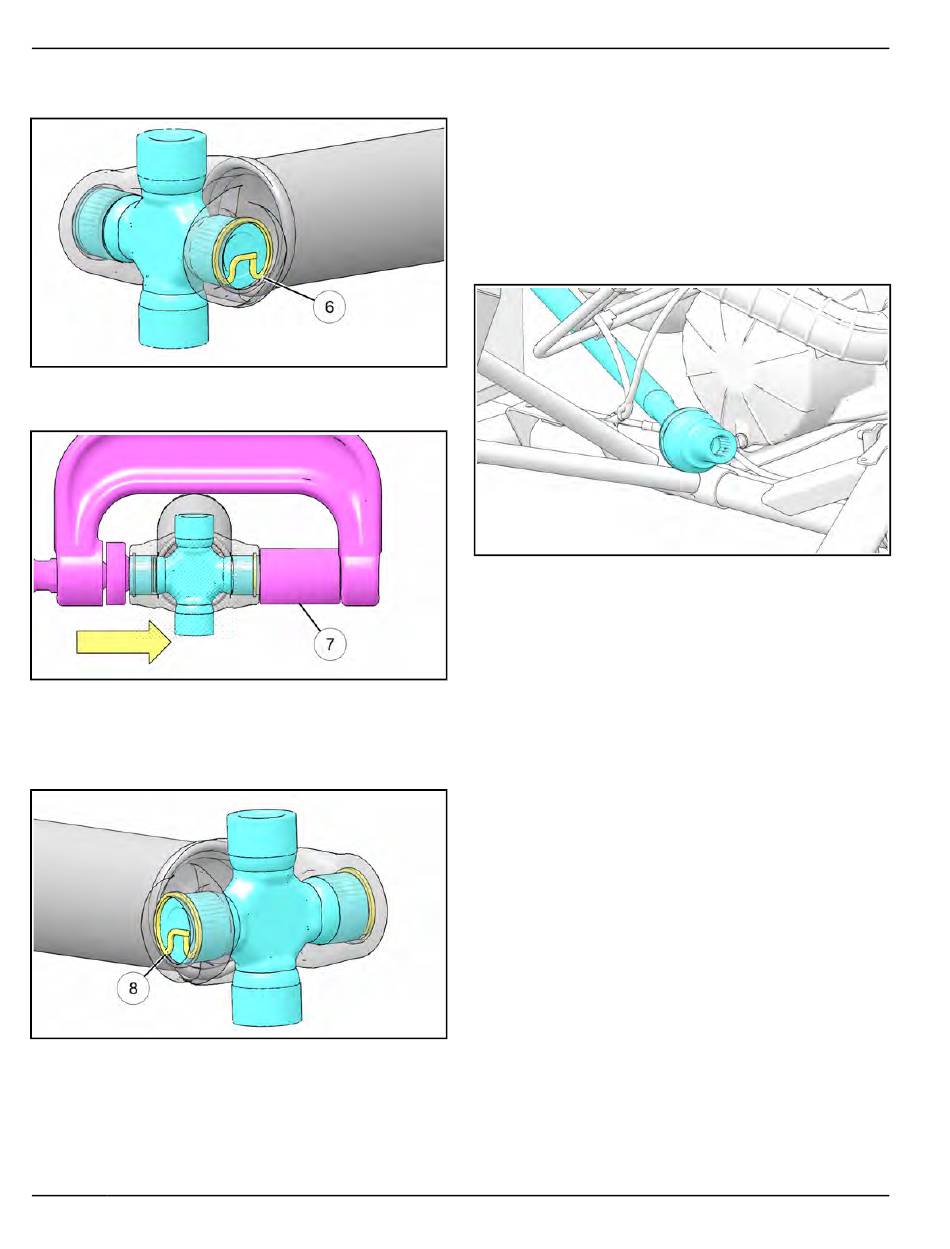

9. Install retaining ring
away from U-joint into exposed groove.
u
10. Place larger adapter
on side with retaining ring.
11. Tighten clamp until other cap is below retaining ring
groove.
12. Install second retaining ring
edge facing away from U-joint.
13. Verify the U-joint moves freely and does not bind.
8.16
with sharp, square edge facing
with ID larger than yoke bore
i
with sharp, square

PROPSHAFT INSTALLATION - 2 SEAT

1. Lubricate front gearcase shaft splines with Anti-Seize.
2. Lubricate the transmission output shaft splines with
Polaris All Purpose Grease.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Slide the rear prop shaft forward from the left rear of
the machine just below the PVT cover. Install the rear
prop shaft on the transmission output shaft.
5. Lubricate the support bushing with light oil to ease
installation and install the bushing on the rear prop
shaft bearing.
